DEFA HRC-05 User Manual

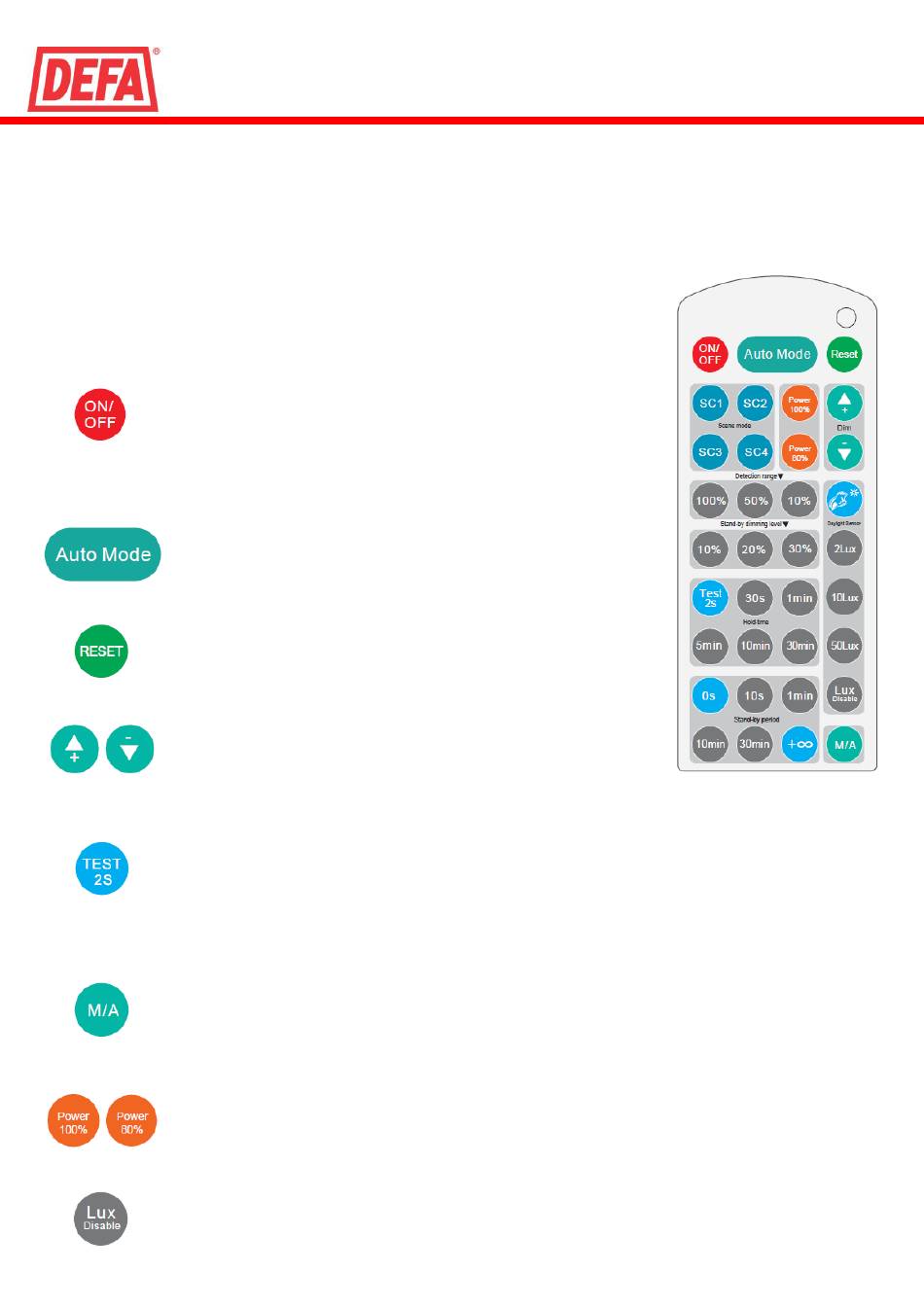

Description

This IR-remotecontrol works with LedgeCircle PIR MinMaxOff (not Radar versions).
The Lightfixtures can always be set via the dipswitches within the controlmodule
but the remote makes it fast and easy to change all settings and functions remotely
and is very suitable for larger installations. The lightfixture "beeps" to confirm any
settings made by the remote. At any time, you can go back to change the settings via
the DIP-switches, the light fixture will use the latest settings that has been changed.

Permanent ON/OFF function

Press the "ON/OFF" button, the light goes to permanent on or
permanent off mode, sensor is disabled.
* Press "Auto Mode", "RESET" or "Scene mode" buttons to quit from
this mode.

Sensor mode

Press "Auto Mode" button, the sensor is activated, and all settings
remain the same as the latest status before the light was switched
on/off.

Reset function

Press "RESET" button, all settings go back to the value of DIP-
switch settings.

Dim +/-

Long press "Dim +" or "Dim -" to adjust the light brightness between
10% and 100% during hold-time.

Test mode

The button "Test 2s" is for testing purpose only. The sensor goes to test mode (hold-time is 2s)
automatically after commissioning, meanwhile the stand-by period and daylight sensor are disabled.
* This mode can be ended by pressing "reset", or any button of "scene mode" and "hold time". The
sensor setting is changed accordingly.

Manual override / Semi-auto mode (absence detection)

By pressing this button, the sensor goes to manual override or Semi-auto mode (absence detection)
function. This function is not in use

Power output

By pressing these two buttons, the output shifts between 80% (at initial 10,000 hours) and 100%, for
energy saving purpose.

Lux Disable

Press this button to disable the built-in daylight sensor. All motion detected will turn on the light
fixture, no matter how bright the natural light is.
Remotecontrol HRC-05
Manual
