Summary of Contents for Trotec TGP 1025 E

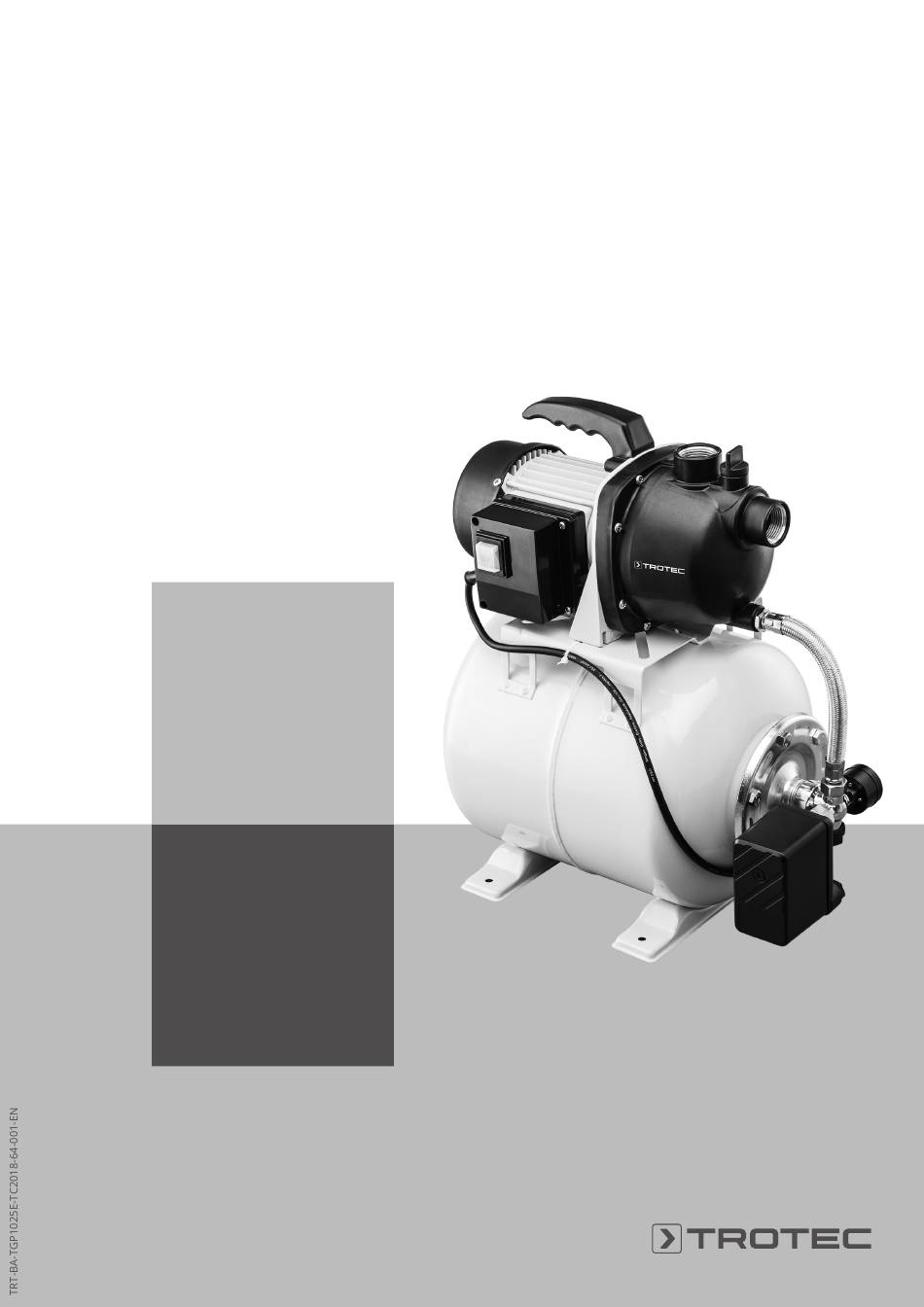

- Page 1 TGP 1025 E ORIGINAL INSTRUCTIONS GARDEN PUMP...
-
Page 2: Table Of Contents
Information marked with this symbol indicates that the data chapter. instructions must be observed. • Do not remove any safety signs, stickers or labels from the device. Keep all safety signs, stickers and labels in legible condition. garden pump TGP 1025 E... - Page 3 (alkalis, acids, etc.), combustible or explosive not in use, remove the mains plug from the mains socket. liquids (petroleum, petrol, etc.) or food (drinking water, etc.). garden pump TGP 1025 E...
- Page 4 The water temperature must not exceed 35 °C. People who use this device must: • be aware of the dangers that occur when working with electric devices in damp areas. • have read and understood the instructions, especially the Safety chapter. garden pump TGP 1025 E...
- Page 5 Allow the device to cool down and switch it off. Investigate the cause of overheating. Should the problem persist, please contact the customer service. garden pump TGP 1025 E...
-
Page 6: Information About The Device

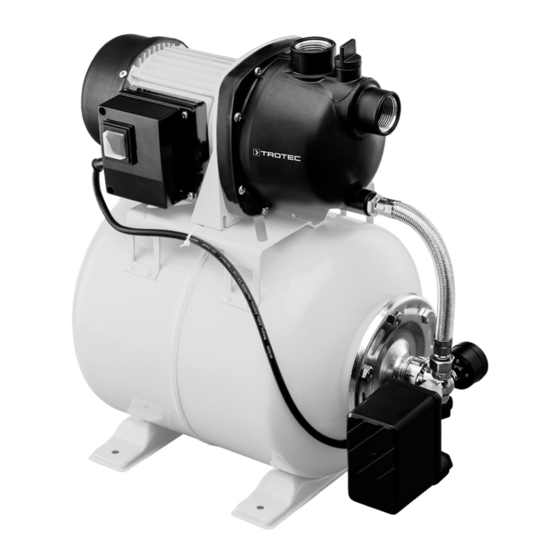

Device depiction Water filler neck with screw plug Connection for suction line with 1" internal thread Water drain nozzle with screw plug Pressure tank Pressure tank valve with protective cap Foot (with drill hole) Pressure gauge garden pump TGP 1025 E... -
Page 7: Transport And Storage
A smaller diameter causes pressure loss and thus reduces the feed rate. • The smaller the pump height of the pressure line and suction line, the higher the feed rate. • Connected accessories can cause a pressure loss and reduce the feed rate. garden pump TGP 1025 E... - Page 8 1. Remove the protective cap (10) from the suction connection (4). Note Keep the protective cap of the pressure connection so you can use it when storing the device to protect the inside of the device against dust and dirt. garden pump TGP 1025 E...
- Page 9 The connected suction line should also be completely filled with the pumping medium. 3. Screw the screw plug back onto the water filler neck (3). Ensure a tight fit of the screw plug. garden pump TGP 1025 E...
-
Page 10: Operation
Do not touch the mains plug with wet or damp hands. Warning The device is pressurized. Before opening the screw plug at the water drain nozzle (5) or before disassembling the pressure line, the pressure must be released from the pressure line via the lowest-level consumer. garden pump TGP 1025 E... -
Page 11: Errors And Faults
If so, wait for approx. 10 minutes before restarting the device. If the device is not starting, have the electrics checked by a specialist company or by Trotec. • The water temperature is above 35 °C and the thermal protection circuit is activated. -
Page 12: Maintenance
3. Open the lowest-level consumer to reduce the pressure in the pressure line. Please contact the customer service. If necessary, bring the 4. Unscrew the protective cap at the pressure tank valve (7). device to an authorized specialist electrical company or to Trotec for repair. garden pump TGP 1025 E... -
Page 13: Technical Annex
• Rinse the inside of the device with clear, lukewarm water. Max. particle size 2 mm Pressure connection 1" internal thread Suction connection 1" internal thread Sound values according to EN ISO 3744:1995 Sound pressure level L 72 dB(A) Sound power level L 88 dB(A) Uncertainty K 2 dB(A) garden pump TGP 1025 E... -
Page 14: Disposal
35° garden pump TGP 1025 E... -
Page 15: Declaration Of Conformity
E-mail: info@trotec.de In accordance with the EC Machinery Directive 2006/42/EC, Annex II, part 1, Section A Place and date of issue: Herewith, we – Trotec GmbH & Co. KG – declare that the Heinsberg, 22.11.2018 machinery designated below was developed, constructed and produced in compliance with the requirements of the Detlef von der Lieck, Managing Director EC Machinery Directive in the version 2006/42/EC. - Page 16 Trotec GmbH & Co. KG Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
