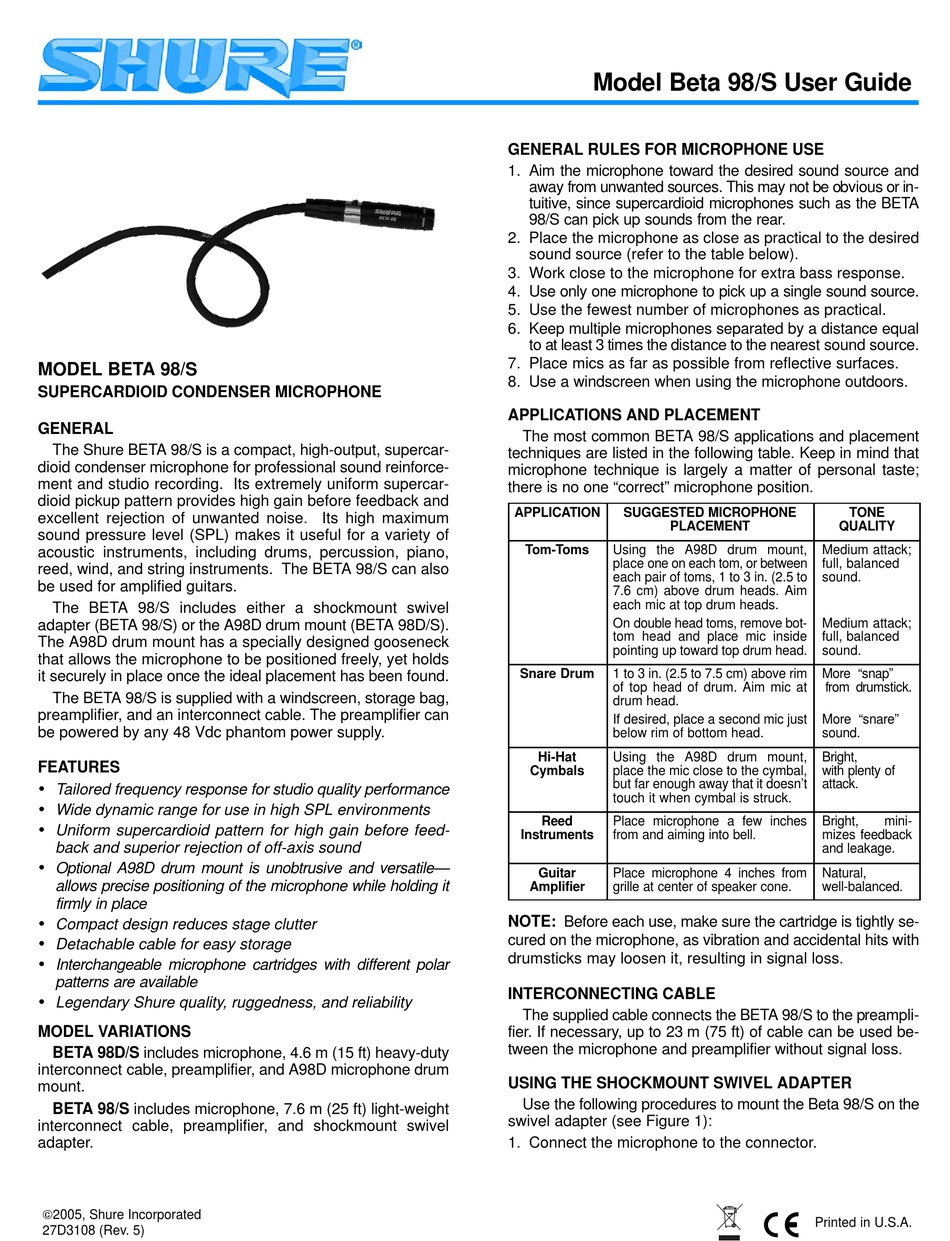

Shure BETA 98/S User Manual

MODEL BETA 98/S
SUPERCARDIOID CONDENSER MICROPHONE
GENERAL
The Shure BETA 98/S is a compact, high-output, supercar-
dioid condenser microphone for professional sound reinforce-
ment and studio recording. Its extremely uniform supercar-
dioid pickup pattern provides high gain before feedback and
excellent rejection of unwanted noise. Its high maximum
sound pressure level (SPL) makes it useful for a variety of
acoustic instruments, including drums, percussion, piano,
reed, wind, and string instruments. The BETA 98/S can also
be used for amplified guitars.
The BETA 98/S includes either a shockmount swivel
adapter (BETA 98/S) or the A98D drum mount (BETA 98D/S).
The A98D drum mount has a specially designed gooseneck
that allows the microphone to be positioned freely, yet holds
it securely in place once the ideal placement has been found.
The BETA 98/S is supplied with a windscreen, storage bag,
preamplifier, and an interconnect cable. The preamplifier can
be powered by any 48 Vdc phantom power supply.
FEATURES
• Tailored frequency response for studio quality performance
• Wide dynamic range for use in high SPL environments
• Uniform supercardioid pattern for high gain before feed-
back and superior rejection of off-axis sound
• Optional A98D drum mount is unobtrusive and versatile—
allows precise positioning of the microphone while holding it
firmly in place
• Compact design reduces stage clutter
• Detachable cable for easy storage
• Interchangeable microphone cartridges with different polar
patterns are available
• Legendary Shure quality, ruggedness, and reliability
MODEL VARIATIONS
BETA 98D/S includes microphone, 4.6 m (15 ft) heavy-duty
interconnect cable, preamplifier, and A98D microphone drum
mount.
BETA 98/S includes microphone, 7.6 m (25 ft) light-weight
interconnect cable, preamplifier, and shockmount swivel
adapter.
2005, Shure Incorporated
27D3108 (Rev. 5)
Model Beta 98/S User Guide
GENERAL RULES FOR MICROPHONE USE
1. Aim the microphone toward the desired sound source and
away from unwanted sources. This may not be obvious or in-
tuitive, since supercardioid microphones such as the BETA
98/S can pick up sounds from the rear.
2. Place the microphone as close as practical to the desired
sound source (refer to the table below).
3. Work close to the microphone for extra bass response.
4. Use only one microphone to pick up a single sound source.
5. Use the fewest number of microphones as practical.
6. Keep multiple microphones separated by a distance equal
to at least 3 times the distance to the nearest sound source.
7. Place mics as far as possible from reflective surfaces.
8. Use a windscreen when using the microphone outdoors.
APPLICATIONS AND PLACEMENT
The most common BETA 98/S applications and placement
techniques are listed in the following table. Keep in mind that
microphone technique is largely a matter of personal taste;
there is no one "correct" microphone position.
APPLICATION SUGGESTED MICROPHONE
PLACEMENT
Tom-Toms Using the A98D drum mount,
place one on each tom, or between
each pair of toms, 1 to 3 in. (2.5 to
7.6 cm) above drum heads. Aim
each mic at top drum heads.
On double head toms, remove bot-
tom head and place mic inside
pointing up toward top drum head.
Snare Drum 1 to 3 in. (2.5 to 7.5 cm) above rim
of top head of drum. Aim mic at
drum head.
If desired, place a second mic just
below rim of bottom head.
Hi-Hat Using the A98D drum mount,
Cymbals place the mic close to the cymbal,
but far enough away that it doesn't
touch it when cymbal is struck.
Reed Place microphone a few inches
Instruments from and aiming into bell.
Guitar Place microphone 4 inches from
Amplifier grille at center of speaker cone.
NOTE: Before each use, make sure the cartridge is tightly se-
cured on the microphone, as vibration and accidental hits with
drumsticks may loosen it, resulting in signal loss.
INTERCONNECTING CABLE
The supplied cable connects the BETA 98/S to the preampli-
fier. If necessary, up to 23 m (75 ft) of cable can be used be-
tween the microphone and preamplifier without signal loss.
USING THE SHOCKMOUNT SWIVEL ADAPTER
Use the following procedures to mount the Beta 98/S on the
swivel adapter (see Figure 1):
1. Connect the microphone to the connector.
TONE
QUALITY
Medium attack;
full, balanced
sound.
Medium attack;
full, balanced
sound.
More "snap"
from drumstick.
More "snare"
sound.
Bright,
with plenty of
attack.
Bright, mini-
mizes feedback
and leakage.
Natural,
well-balanced.
