Troubleshooting

Tono-Pen Will Not Take A Reading

• Tip may be dirty. Perform the cleaning procedure. If problem persists, send the pen in for
service.
• Ocu-Film + may be installed incorrectly. Refer to Ocu-Film + Instructions on reverse.
• Use blue Reichert brand Ocu-Film + ONLY. Use of any other brand tip cover may affect read-
ings and may void your warranty.
• If the above does not resolve the issue, STOP and send the unit in for repair.

Tono-Pen Asks to [CAL] Often

• Anytime the button is pressed twice within 1.5 seconds the Tono-Pen will enter into calibration mode.
• Tip may be dirty. Perform the cleaning procedure. If problem persists, send the pen in for service.

Tono-Pen Turns Off

• Unit is going into power saving mode. If no measurements are taken within 15 seconds, the
Tono-Pen will go into battery saving mode. Turn it back on by pressing the button once.
• Batteries may be low. Replace the batteries, then perform the calibration procedure.
• If [CAL] is seen followed by a single row of dashes [- - - - ] , the pen needs to be calibrated.
Press the button twice to initiate calibration. [CAL] should appear and stay on the screen.
If [- - - - ] appears, press the button twice, either faster or slower, until [CAL] stays on the screen.

Tono-Pen Calibrates [bAd]

• Tip may be dirty. Perform the cleaning procedure no more than 3 times consecutively. If
problem persists, send the pen in for service.
• Pen is being flipped up too slowly. The pen should be turned up quickly and smoothly when
[UP] appears.
Reichert, Inc. • 3362 Walden Ave, New York 14043 USA
Toll Free: 888-849-8955 • Tel: (716) 686-4500 • Fax: (716) 686-4545
www.reichert.com • Tono-Pen and Ocu-Film are registered trademarks of Reichert, Inc.
XL
®
Quick Reference Guide
Applanation Tonometer

Cleaning Procedure

1. Remove the Ocu-Film + tip cover.
2. Hold the tip of the Tono-Pen against the nozzle of a can of
compressed air.
3. Blow air into the tip for approximately 3 seconds. Do not
perform more than 3 times consecutively.
4. The tip will be cold; allow the tip to warm to room temperature.
5. Perform the calibration procedure after cleaning.

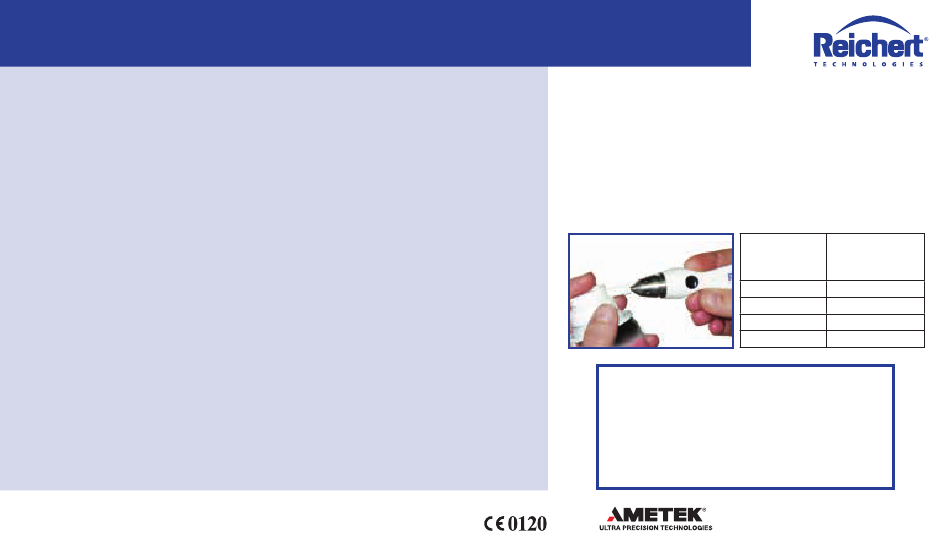

Cleaning Tip

Tono-Pen Service

• Go to ww.reichert.com/rma
• Fill out the RMA request form.
• An RMA will be sent to you via email.
• Send in your instrument, inside the protec-
tive carrying case, with a copy of the RMA.

Cleaning Schedule

Number of Number of
Patients Days Between
per Week Cleaning
10 30
100 15
300 7
600 1
980041 Rev. D, 02-08-2017
