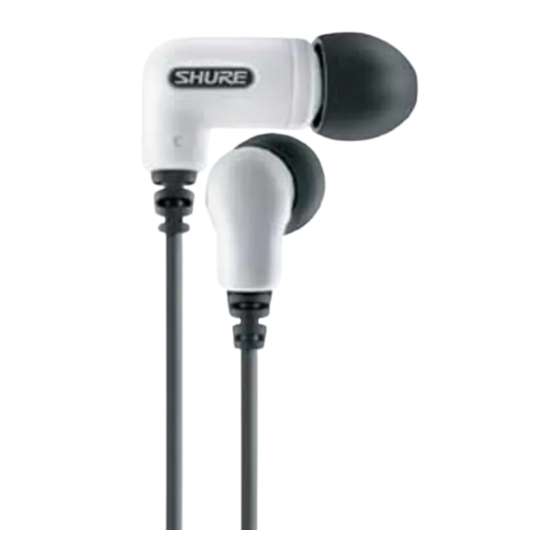

Shure E3c User Manual

Sound Isolating Earphones
With a sleek, low profile design,
the E3c combines WideBand
MicroDriver technology and
incredible sound isolation for
is an ideal choice for any
©2005, Shure Incorporated
27EN3190B (Rev. 4)
CHOOSING AN EARPHONE SLEEVE
Your earphones come with a selection of sleeves. Make sure the sleeve you
use is easy to insert into your ear, fits comfortably, and is easy to remove from
your ear.
Flex Sleeves
In small, medium, and large sizes. Made from translucent
PVC.
Soft Flex Sleeves
In small, medium, and large sizes. Made from pliable rubber.
Foam Sleeves
When using the foam sleeves, compress the sleeve between
your fingers before inserting it into the ear canal. Hold the
earphone in place for about ten seconds while the foam
expands and creates a tight seal.
Triple-Flange Sleeves (Optional Accessory)
If desired, the sleeve nozzle may be shortened. Use sharp
scissors to carefully trim the nozzle to the desired length.
E3c
WEARING THE EARPHONES
Three popular methods for wearing the earphones are illustrated below.
detailed highs
and enhanced
bass across an �
extended frequency
soundstage.
Originally designed
for the demanding
Over the ear
audio specifications
in back
of professional
musicians, the E3c
home or portable audio
device.
Tighten the cable and take up slack by raising the cable sleeve  .
Printed in U.S.A.
CLEANING THE EARPHONE NOZZLE
If the nozzle of your earphone is blocked, clean the nozzle using the supplied
wax removal loop.
When cleaning, do not force any object through the earphone nozzle! This will
damage the earphone sound filter.
Over the ear
in front
Straight down
Wax Removal Loop
Nozzle
INSERTING THE EARPHONES
If the earphone seems to be lacking in low frequency response (bass), check
the tightness of the seal between the earphone and your ear, or try one of the
other sleeve options.
Warning: Do not push the earphone sleeve beyond the ear canal opening.
left ear
Make sure that the sleeve completely
covers the earphone nozzle. If any part
of the nozzle is exposed, the sleeve is
not properly installed.
FULL TWO YEAR WARRANTY
Shure Incorporated ("Shure") hereby warrants that this product will be free
from defects in materials and workmanship for a period of two years from
the date of purchase. At its option Shure will repair or replace the defective
product and promptly return it to you, or refund the purchase price. You should
retain proof of purchase to validate the purchase date and return it with any
warranty claim.
If you believe this product is defective within the warranty period, carefully
repack the unit, insure it, and return it postage prepaid to:
Shure Incorporated
5800 W. Touhy Ave.
Niles, IL 60714-4608
SHURE Incorporated http://www.shure.com
United States, Canada, Latin America, Caribbean:
5800 W. Touhy Avenue, Niles, IL 60714-4608, U.S.A.
Phone: 847-600-2000 U.S. Fax: 847-600-1212 Int'l Fax: 847-600-6446
Shure Europe GmbH, Phone: 49-7131-72140 Fax: 49-7131-721414
Shure Asia Limited, Phone: 852-2893-4290 Fax: 852-2893-4055
right ear
Europe, Middle East, Africa:
Asia, Pacific:
