- Page 1 INSTALLATION MANUAL FT-VF-GMLAN...
- Page 2 • 1 year warranty against manufacturer defect • Compatible vehicles: www.faaftech.com/en/products/video-interface/ft-video-free-gm-lan Important Note *Video visualization while moving is strictly forbidden to the vehicle drier, being restricted to the passengers. FAAFTECH will not be held accountable for any damage caused by the misusage of this functionality.
-
Page 3: Dip Switches

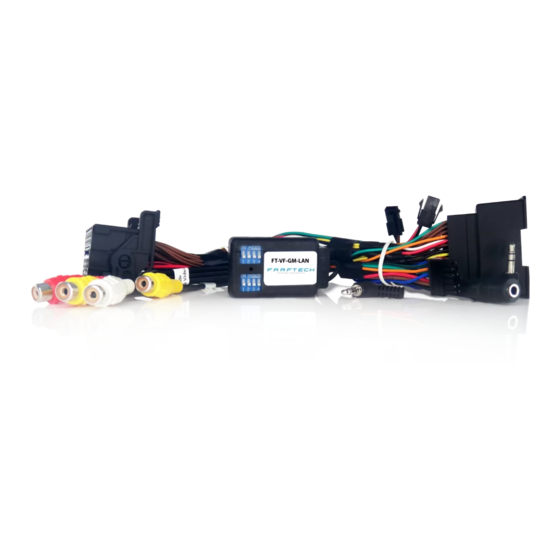

FT-VIDEO-FREE GMLAN 1 2 3 4 DIGITAL TV SETUP FT-TV-1SEGII DIP 1 UP DIP 2 DOWN FT-TV-1SEGIII FAAFTECH FT-TV-1SEGIV DIP 1 DOWN DIP 2 DOWN FT-TV-HDII LBSAT LBCR-1100 DIP 1 UP DIP 2 UP Note: if you won’t install any of the Digital TVs listed above, keep all 4 lower DIP... - Page 4 CONNECTIONS MYLINK Connect to the Conectar ao Mylink original MyLink whip Rear camera Check page 2 Video input for rear camera Entrada de Audio e Video Note: compatible only 1 2 3 4 with NTSC cameras FT-VIDEO-FREE GMLAN 1 2 3 4 Check page 2 Audio and video input Saida 12Volts...
- Page 5 CONNECTIONS See below for an example installation using a TV and a rear-view camera. MYLINK 1 2 3 4 FT-VIDEO-FREE GMLAN 1 2 3 4 Digital TV Receptor (Sold separately) Rear camera (sold separately)
- Page 6 PROGRAMMING THE REAR CAMERA If you are installing a rear camera, you will need to program MyLink by following the steps below: 1°. Check if the upper DIP SWITCH 1 is switched up; 2°. Turn the car ignition on and wait for the MyLink to fully start; 3°.
- Page 7 AUXILIARY AV INPUT Access the Auxiliary AV input by clicking on the HOME ( ) button, then touch the PHOTOS & VIDEO option, then click on the SOURCE option on the left upper corner and select the AUX(MOVIE) option.
- Page 8 TV COMMANDS If you have installed a Digital TV that is compatible with the GMLAN interface, you can flip through channels by using the steering wheel commands, as shown on the picture below: CHANNEL + CHANNEL –...
- Page 9 Vídeo em Movimento The FT-VIDEO-FREE GMLAN interface has a function that allows you to toggle the video while moving blocking on or off. Below you can see how to access this function depending on your car model. IMPORTANT NOTICE: The BringGo GPS app does not work correctly while the video while moving is unblocked.
-
Page 10: Troubleshooting
TROUBLESHOOTING 1. After installing the interface, the MyLink won’t turn on. • Review the installation and check if the cables are connected according to the images on pages 3 and 4; • Check if all the cables are well connected, if the whips are well aligned and if there aren’t any wires coming out from the whip. -
Page 11: Warranty
Warranty FAAFTECH assures their clients a 01 (one) year period against defects in materials and workmanship, proved by presenting both the receipt of purchase from the reseller to the costumer and the present Warranty Certificate filled, observing the following: 1. FAAFTECH will null the warranty if Faaftech or their authorized technical... -
Page 12: Technical Support
TECHNICAL SUPPORT Follow us on social media 0800 603 2330 ou (62) 3241-4600 suporte@faaftech.com.br www.faaftech.com.br Available from Monday to Friday, from 8 a.m. to 6 p.m. Brasilia time...
