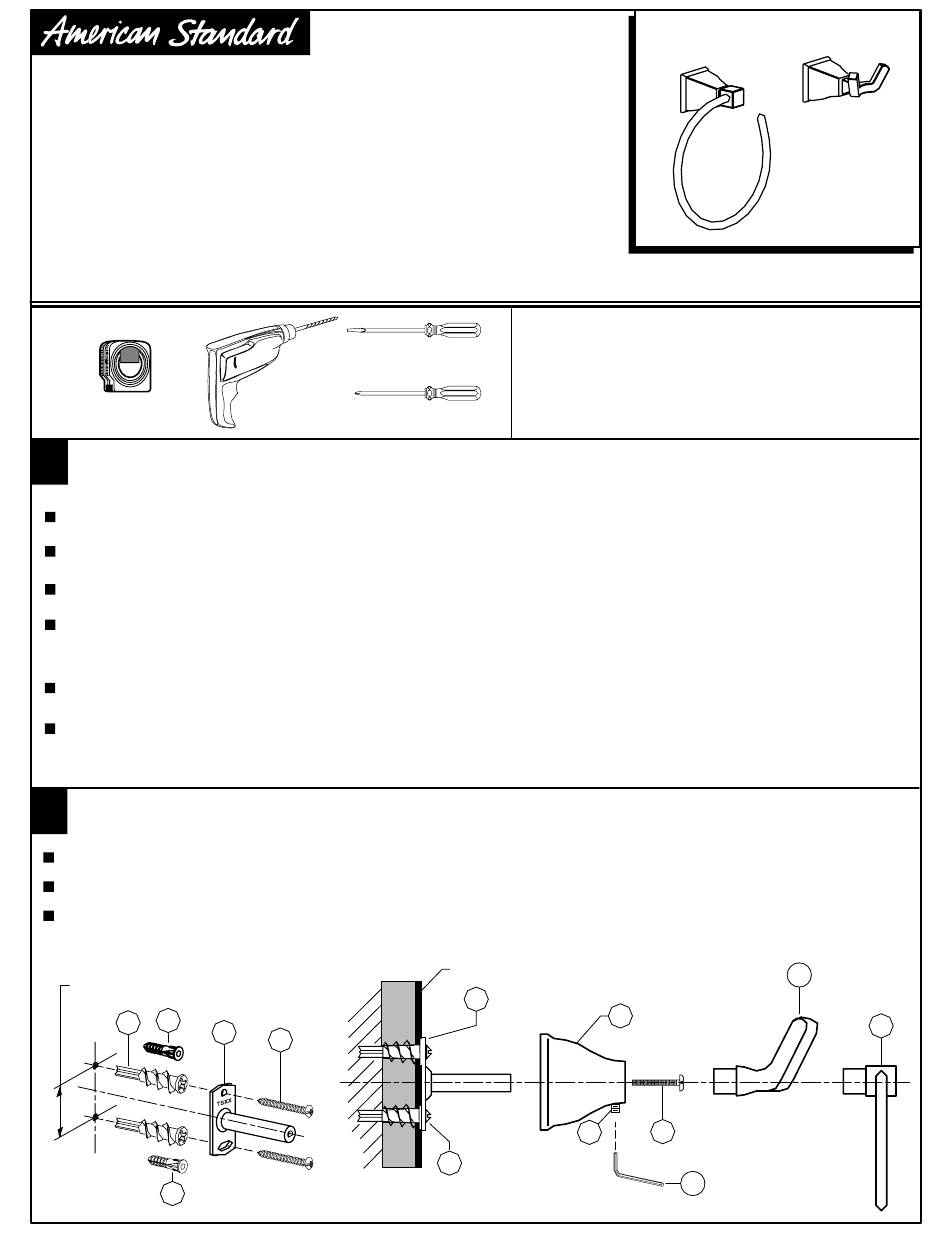

American Standard 2555.021 Installation Instructions

TOWNSQUARE
Accessories
TOWEL RING
DOUBLE ROBE HOOK
Thank you for selecting American-Standard...the benchmark of fine
quality for over 100 years.
To ensure that your installation proceeds smoothly--please read these
instructions carefully before you begin.

Recommended Tools

10'
Tape Measure
1
TOWEL RING and ROBE HOOK MOUNTING & INSTALLATION
The TOWEL RING (1) and DOUBLE ROBE HOOK (2) work best if secured to a wall stud or cross brace within the wall, using the
SCREWS (4) supplied.
If the TOWEL RING (1) and DOUBLE ROBE HOOK (2) are to be installed on a tile or plaster wall, the ANCHORS (8) and SCREWS (4)
should be used.
Determine desired height and location (optional) and mark a center line. Using the MOUNTING PLATE (5) as a template mark the two
spots for the mounting holes. If MOUNTING PLATE (5) is secured to a stud or cross brace drill small pilot holes for SCREWS (4).
For installations on drywall, use DRYWALL ANCHORS (6) and SCREWS (4) for securing MOUNTING PLATE (5) to wall. Place #2 Phillips
screwdriver or cordless screwdriver into recess of anchor. Press into drywall while turning the anchor clockwise until it is seated flush with
the wall. Place MOUNTING PLATE (5) over DRYWALL ANCHORS (6) and insert screws provided with #2 Phillips screwdriver. See
illustration below. Secure MOUNTING PLATE (5) to wall with SCREWS (4).
For installations on tiled walls, If TILE ANCHORS (8) and SCREWS (4) are use for securing MOUNTING PLATE (5), then
drill two 1/4" diameter holes a minimum of 1-1/4" deep. Insert the two TILE ANCHORS (8) flush with face of the finished wall.
Secure MOUNTING PLATE (5) to wall with WOOD SCREWS (4).
2

INSTALL TOWEL RING AND ROBE HOOK

Place ESCUTCHEON (7) onto MOUNTING BRACKET (5), and secure with ATTACHMENT SCREW (3).
Install the TOWEL RING (1) or DOUBLE ROBE HOOK (2) into WALL ESCUTCHEON (7).
Tighten SET SCREW (9) using 2-1/2mm HEX KEY (10) supplied to secure assembly to ESCUTCHEON (7).
USE MOUNTING BRACKET (5)
AS TEMPLATE
8
6
8
Regular Screwdriver
Drill
Phillips Screwdriver
5
4
Installation
Instructions
2555.021
2555.041

CARE INSTRUCTIONS:

DO: SIMPLY RINSE THE PRODUCT CLEAN WITH CLEAR
WATER. DRY WITH A SOFT COTTON FLANNEL CLOTH.
DO NOT: CLEAN THE PRODUCT WITH SOAPS, ACID,
POLISH, ABRASIVES, HARSH CLEANERS, OR A CLOTH
WITH A COARSE SURFACE.
FINISHED WALL
5
4
7
3
9
10
