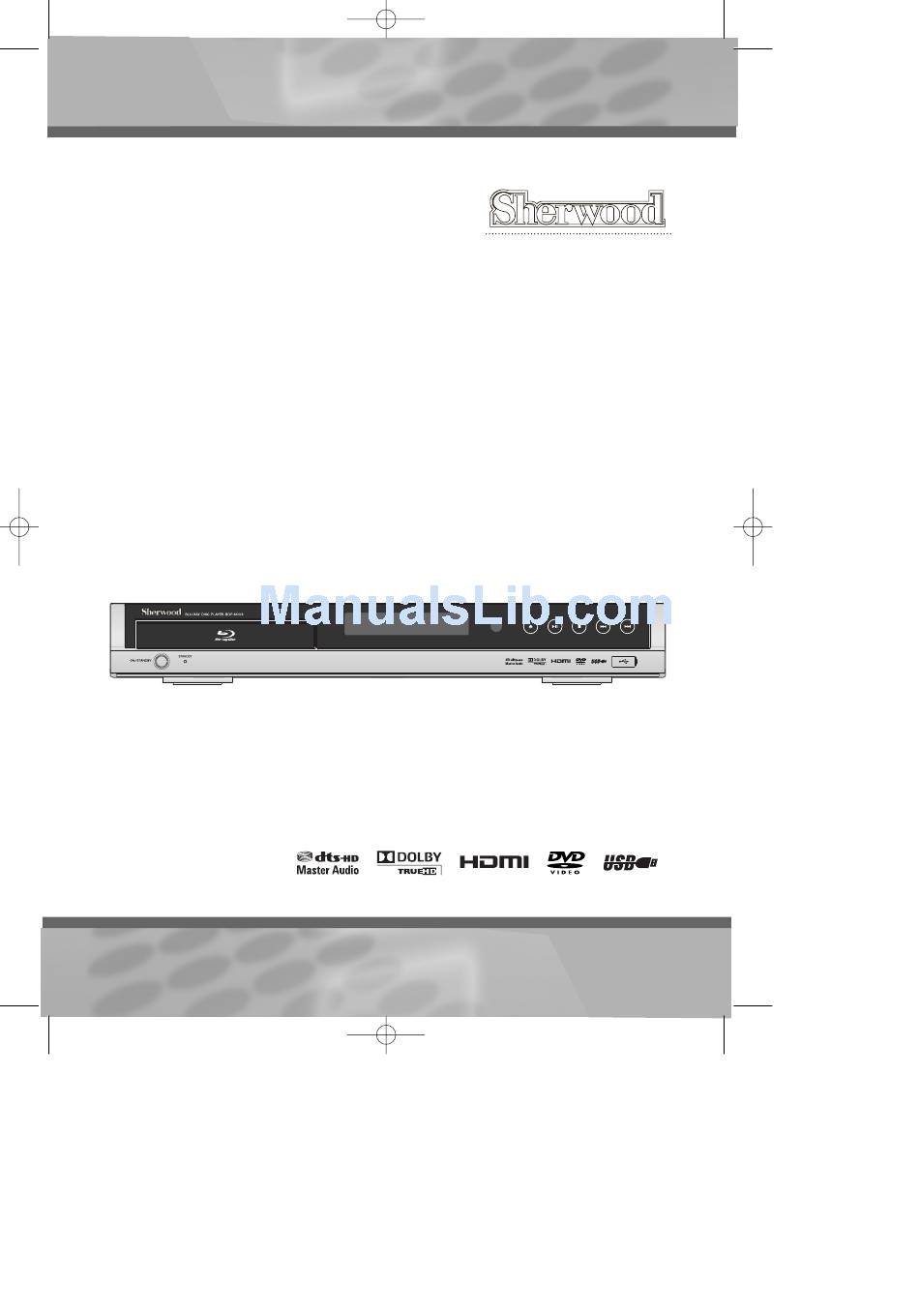

  • Page 1 BDP-6003-English 2008.12.5 6:19 PM ˘ ` a Blu-Ray Disc Player BDP-6003 Instruction manual...

  • Page 2: Safety Instructions

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 1 Safety Instructions Safety Instructions Please keep the instruction manual in a safe place. Precautions • Read this booklet carefully. • Make sure the rating of your household electricity supply matches that • Read this page and chapter ‘Setup’ to help you set up and adjust your •...

  • Page 3: Important Safeguards

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 2 Important Safeguards Important Safeguards CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
  • Page 4 BDP-6003-English 2008.12.5 6:19 PM ˘ ` 3 This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this unit will protect you if you observe the following procedures for installation, use and servicing.
  • Page 5 BDP-6003-English 2008.12.5 6:19 PM ˘ ` 4 Important Safeguards 17 DISC Do not use a cracked, deformed or repaired disc. These discs are easily broken and may cause serious personal injury and product malfunction. 18 SERVICING Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous voltage or other hazards.

  • Page 6: Table Of Contents

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 5 Table of Contents Table of Contents Product Information Connections Setup Playback Appendix Safety Instructions ...1 Important Safeguards ...2 Table of Contents ...5 Overview Features ...6 Identification of Controls...9 Front Panel ... 9 Operation Display Window ... 10 Rear Panel...

  • Page 7: Overview Features

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 6 Overview Features Overview Features Overview BD-ROM/DVD Playback BD-ROM, DVD, MP3, JPEG, CD Stereo Audio, Dolby True HD, DTS-HD audio output HDMI OUTPUT The HDMI connection carries standard high definition video signals and multi-channel audio signals to AV components such as HDMI equipped TVs, in digital form without degradation.

  • Page 8: Copyright Notice

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 7 What is BD? BD (Blu-ray Disc or BD) is an optical disc storage media format meant for High Definition audio,video and high density data. The name Blu-ray Disc is derived from the blue laser used to read and write this type of disc.
  • Page 9 BDP-6003-English 2008.12.5 6:19 PM ˘ ` 8 Overview Features Precautions Handling the Unit When shipping the unit The original shipping carton and packing materials will come in handy. For maximum protection, re-pack the unit as it was originally packaged at the factory.

  • Page 10: Identification Of Controls

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 9 Identification of Controls Identification of Controls Main body (front panel) ! Disc Tray To load/unload a disc. @ STANDBY/ON button To switch the unit On or Off. # OPEN/CLOSE button To open or close the disc tray.

  • Page 11: Operation Display Window

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 10 Identification of Controls Operation Display Window ! HDMI output indicator @ Playing time/ current status indicator # REPEAT MODE indicator $ Playback indicator % Pause indicator ^ Video output resolution indicators & Disc Type indicators...

  • Page 12: Rear Panel

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 11 Main body (Rear Panel) ! POWER SUPPLY SOCKET WIRE Supply unit power from the wall socket. @ VIDEO OUT Video output (composite) that you can connect to your TV or AV receiver using the supplied video cable.

  • Page 13: Remote Control

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 12 Identification of Controls Remote Control & ! Open/Close button Opens and closes the disc tray. @ Power button Turns on, or sets the player to standby mode. # Number buttons Enters the MP3, Photo files or Audio CD numbers etc.
  • Page 14 BDP-6003-English 2008.12.5 6:19 PM ˘ ` 13 & Identification of Controls SLOW Button Each time this button is pressed, the disc will play slowly. 8 FORWARD SEARCH Button Press to search a disc forwards. 9 NEXT button (move into a next chapter or track) Press to skip forwards.

  • Page 15: Connections

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 14 Connections Connections This section involves various methods of connecting the Blu-ray Disc Player to other external components. Turn off all equipment before operation. To enable you to set up your new Blu-ray Disc Player, it must be connected it to your TV using either a COMPONENT or S-Video and associated AUDIO cable.

  • Page 16: Connecting To A Tv With An Hdmi Cable

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 15 Connecting to a TV with an HDMI cable Using the included HDMI-HDMI cable, connect the HDMI OUT terminal on the rear of the Blu-ray Disc Player to the HDMI IN terminal of your TV.
  • Page 17 BDP-6003-English 2008.12.5 6:19 PM ˘ ` 16 Connections Connecting to a TV (S-Video cable) Connecting to your TV using an S-Video cable. You will enjoy high quality images. S-Video separates the picture element into black and white(Y) and color(C) signals to present clearer images than regular video input mode.
  • Page 18 BDP-6003-English 2008.12.5 6:19 PM ˘ ` 17 Connecting to a TV (Component cable) Connecting to your TV using Component video cables. You will enjoy high quality and accurate color reproduction images. Component video separates the picture element into black and white(Y), blue(PB), red(PR) signals to present clear and clean images.

  • Page 19: Connecting To An Audio System (2 Channel Amplifier)

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 18 Connections Connecting to an AUDIO SYSTEM (2 CHANNEL AMPLIFIER) 1 Using the audio cables provided, connect the AUDIO (red and white) OUT terminals on the rear of the Blu-ray Disc Player to the AUDIO (red and white) IN terminals of your Amplifier.

  • Page 20: Connecting To An Audio System (5.1 Channel Amplifier)

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 19 Connecting to an AUDIO SYSTEM (5.1 CHANNEL AMPLIFIER) Using the audio cables, connect the 5.1 ANALOG AUDIO OUT (Front R, Front L, CENTER, SUBWOOFER, Surround L, Surround R) terminals on the rear of the Blu-ray Disc Player to the 5.1 Channel ANALOG AUDIO IN (Front R, Front L, CENTER, SUBWOOFER, Surround L, Surround R) terminals of your Amplifier.

  • Page 21: Connecting To An Audio System (Dolby Digital, Dts Amplifier)

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 20 Connections Connecting to an AUDIO SYSTEM (DOLBY DIGITAL, DTS AMPLIFIER) 1 If using an optical cable (not included), connect the DIGITAL AUDIO OUT (OPTICAL) terminal on the rear of the Blu-ray Disc Player to the DIGITAL AUDIO IN (OPTICAL) terminal of your Amplifier. If using a coaxial cable (not included), connect the DIGITAL AUDIO OUT (COAXIAL) terminal on the rear of the Blu-ray Disc Player to the DIGITAL AUDIO IN (COAXIAL) terminal of the Amplifier.

  • Page 22: Connecting To An Audio System (Hdmi Supported Amplifier)

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 21 Connecting to an AUDIO SYSTEM (HDMI SUPPORTED AMPLIFIER) Using the included HDMI cable, connect the HDMI OUT terminal on the rear of the Blu-ray Disc Player to the HDMI IN terminal of your Amplifier.
  • Page 23 BDP-6003-English 2008.12.5 6:19 PM ˘ ` 22 Connections Connecting to Internet site for Software Upgrades Using the Direct LAN Cable (UTP cable), connect the LAN terminal on the rear of the Blu-ray Disc Player to the LAN terminal of your modem.

  • Page 24: On Screen Display Overview

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 23 On-Screen Display Overview On-Screen Display Overview The On-Screen Display provides feedback on the status of the Blu-ray disc Player and/or the currently loaded disc. To access the On-Screen Display (or OSD), press [Display].

  • Page 25: Displaying Disc Information

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 24 On-Screen Display Overview Subtitle Shows the current subtitle language, and changes the setting. Press [DISPLAY] during playback. The on- screen display appears on the TV screen. Use […†] to select the ‘SUBTITLE‘ line on the on-screen display.

  • Page 26: Setup Menu

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 25 Setup menu Setup menu The “Setup” display appears with the related items. Various features of the Blu-ray disc player can be adjusted in the SETUP menu (e.g., when changing the connected device or the audio/video output, etc.).

  • Page 27: Setting Up The Video Options

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 26 Setup menu Setting up the Video options A user can set up a connected TV condition and screen. This function depends on the disc or TV type. It may not work with some discs or TVs.
  • Page 28 BDP-6003-English 2008.12.5 6:19 PM ˘ ` 27 Resolution Sets the output resolution of the Component and HDMI video signal. Follow steps 1-3 as shown under ‘TV Aspect Ratio’. Press the …† buttons to select ‘Resolution’, then press the √ button.

  • Page 29: Setting Up The Audio Options

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 28 Setup menu Setting up the Audio options Allows you to set up the Audio device and sound status depending on the audio system being used with the player. Digital Output With the unit in Stop mode, press the HOME MENU button.

  • Page 30: Speaker Setup

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 29 Speaker Setup If you have connected this player to an Amp/Receiver or Home theater via the 5.1 channel Analog outputs you need to set the Speaker Options for the best sound. Follow steps 1-3 as shown under ‘Digital Output’.

  • Page 31: Pcm Downsampling

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 30 Setup menu PCM Down Sampling When the Amplifier connected to the player is not 96KHz compatible, you can select the ‘OFF’, then 96KHz signals will be down converted to 48KHz. Set ‘PCM Down Sampling’ to ON or OFF for this effect.

  • Page 32: Dynamic Compression

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 31 Dynamic Compression While watching movies, you may wish to compress the dynamic range of the audio output (the difference between the loudest and softest passages). This allows you to listen to a movie at lower volume without losing clarity of sound.

  • Page 33: Setting Up The Media Options

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 32 Setup menu Setting up Media (Parental Lock) options This function works in conjunction with BD/DVDs that have been assigned a rating which helps you control the types of BD/DVDs that your family watches.
  • Page 34 BDP-6003-English 2008.12.5 6:19 PM ˘ ` 33 DVD Parental Lock Follow steps 1-3 as shown under ‘Change Password’. Press the …† buttons to select ‘DVD Parental Lock’, then press the √ button to select ‘Enter BD Lock Level’. Press √ button.
  • Page 35 BDP-6003-English 2008.12.5 6:19 PM ˘ ` 34 Setup menu BD Parental Lock Follow steps 1-3 as shown under ‘Change Password’. Press the …† buttons to select ‘BD Parental Lock’, then press the √ button to select ‘Enter BD Lock Level’. And press the OK button.

  • Page 36: Setting Up The General Options

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 35 Setting up General options System Info As the name suggests this lists the current version of software installed in this unit. System information helps service personnel identify firmware information about your Blu-ray disc player in case service is required.

  • Page 37: Network Settings

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 36 Setup menu Network Settings In some rare cases, the firmware upgrade may not succeed. If this occurs, you may need to set up your IP address, Subnet Mask, Gateway and DNS by following the steps below.

  • Page 38: Network Update

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 37 Network Update When you wish to upgrade your Blu-ray player's firmware, check the following precondition. First, connect this player's LAN terminal to the LAN terminal on your modem (see page 22). After that, you must plug in external USB flash memory & check the network setting (see page36) and follow the steps below.
  • Page 39 BDP-6003-English 2008.12.5 6:19 PM ˘ ` 38 Setup menu The system update gets started. When the file download is done, you will see a window that allows you to update firmware. To perform the firmware update, press the œ √...

  • Page 40: Default Reset

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 39 Default Reset You can return all of the player settings to their factory defaults. With the unit in Stop mode, press the HOME MENU button. Press the œ √ buttons to select Setup, then press the OK button.

  • Page 41: Slideshow Interval

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 40 Setup menu Slideshow Interval You can display still pictures one by one at a constant interval. With the unit in Stop mode, press the HOME MENU button. Press the œ √ buttons to select Setup, then press the OK button.
  • Page 42 BDP-6003-English 2008.12.5 6:19 PM ˘ ` 41 Local Storage Local storage(USB Memory) is used on the player for storing Blu-ray Disc content. Playback of the content in local storage is dependent on the disc. Clear ADA (Application Data Area) - To delete BD-J Disc Index information in your USB You must Insert your USB memory device at USB port in front of the panel.

  • Page 43: Auto Power Off

    - When the player is left in the stop or resume stop mode for more than 10 minutes without any user interface, a screen saver will appear on your TV. • During screen saver mode, Blu-ray player can recover by pressing any button including panel button. Auto Power Off - When the player is left in the screen saver mode for more than 30 minutes, the power will automatically turn off.

  • Page 44: Playback Functions

    Playing a Disc • Turn on your TV and set it to the correct Video Input (the input the Blu-ray player is connected to). • If you connected an external Audio System, turn on your Audio System and set it to the correct Audio Input.

  • Page 45: Slow Motion

    This is used for storing audio/video and subtitle updates with BD disc. So your Blu-ray player has to use USB flash memory as a external storage in case above. When you see the following message on your TV screen during playing the BD-ROM disc, "Please plug in a USB which has at least 1GB space"...

  • Page 46: Watching A Movie

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 45 Watching a Movie Watching a Movie Using the Display, Disc Menu & Pop up Menu function Using the Display During playback, press DISPLAY button on the remote control. Press the […†] buttons to select the desired item.

  • Page 47: Various Playback Functions

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 46 Watching a Movie Various playback functions Subtitles Press [SUBTITLE] and then press [SUBTITLE] repeatedly during playback to select among all available subtitle languages. You can also change the Subtitle Language by using the DISPLAY button. (For more information, see “Disc information options for BD/DVD-Video”...
  • Page 48 BDP-6003-English 2008.12.5 6:19 PM ˘ ` 47 Repeat When play a disc, this function can be used to repeatedly play a title, chapter or disc. Press "REPEAT" button, the screen shows in order. When playing a BD/DVD disc : Title ➝ Chapter ➝ Off •...

  • Page 49: Listening To Music

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 48 Listening to Music Listening to Music Playing an Audio CD (CD-DA) After plugging in the player, the first time you press " " button on the front panel or the "POWER" button on the remote control to turn the unit on.

  • Page 50: Various Playback Functions

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 49 Various playback functions Skipping Tracks (Files) During playback, if you press the NEXT (√ √ I ) button, it moves to the next track (file) and playing it. If you press the PREVIOUS ( I œ œ)] button, it moves to the beginning of the previous track (file) and playing it.

  • Page 51: Viewing A Picture

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 50 Viewing a Picture Viewing a Picture This Blu-ray Disc Player can play JPEG Picture files on a disc such as CD-R/RW, DVD+R/RW, DVD-R/RW or USB memory. Viewing a Picture After plugging in the player, the first time you press "...
  • Page 52 BDP-6003-English 2008.12.5 6:19 PM ˘ ` 51 Skipping photo Files manually During playback, if you press the NEXT (√ √ I ) or √ button, it moves to the next image (file). If you press the PREVIOUS ( I œ œ)] or œ button, it moves to the previous image (file).

  • Page 53: Troubleshooting

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 52 Troubleshooting Troubleshooting Check the following guide for the possible cause of a problem before contacting customer support. Symptom Cause No power. The power cord is disconnected. No picture. The TV is not set to receive Blu-ray disc player signal output.

  • Page 54: Moisture Condensation

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 53 Symptom Solution Check the connection between the TV and the HDMI jack of the Blu-ray Disc No HDMI output. Player. Check if your TV supports 576i, 576p, 720p, 1080i, 1080p or 1080p24 HDMI input resolution.

  • Page 55: Specification

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 54 Specifications Specifications General Power requirements AC200V-240V~, 50/60 Hz Power consumption (Standby:0.9W) Dimensions(approx.) 435 x 55 x 353 mm (w x h x d) Mass (approx.) Net : 3.4kg Gross : 4.5kg Operating temperature 41°F to 95°F (5°C to 35°C)

  • Page 56: Language Code List

    BDP-6003-English 2008.12.5 6:19 PM ˘ ` 55 Appendix Appendix Language code list You can input the desired language for Disc Audio, Disc Subtitle or Disc Menu. abbr. Language code no. Afar 6565 Abkhazian 6566 Afrikaans 6573 Albanian 6578 Amharic 6582...
