OPERATING INSTRUCTIONS
BDP-5004
BLU-RAY DISC PLAYER
BDP-5004
Please read this User Manual carefully to ensure proper use of this
product and keep this manual for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BDP-5004 and is the answer not in the manual?

Questions and answers

Related Manuals for Sherwood BDP-5004

Summary of Contents for Sherwood BDP-5004

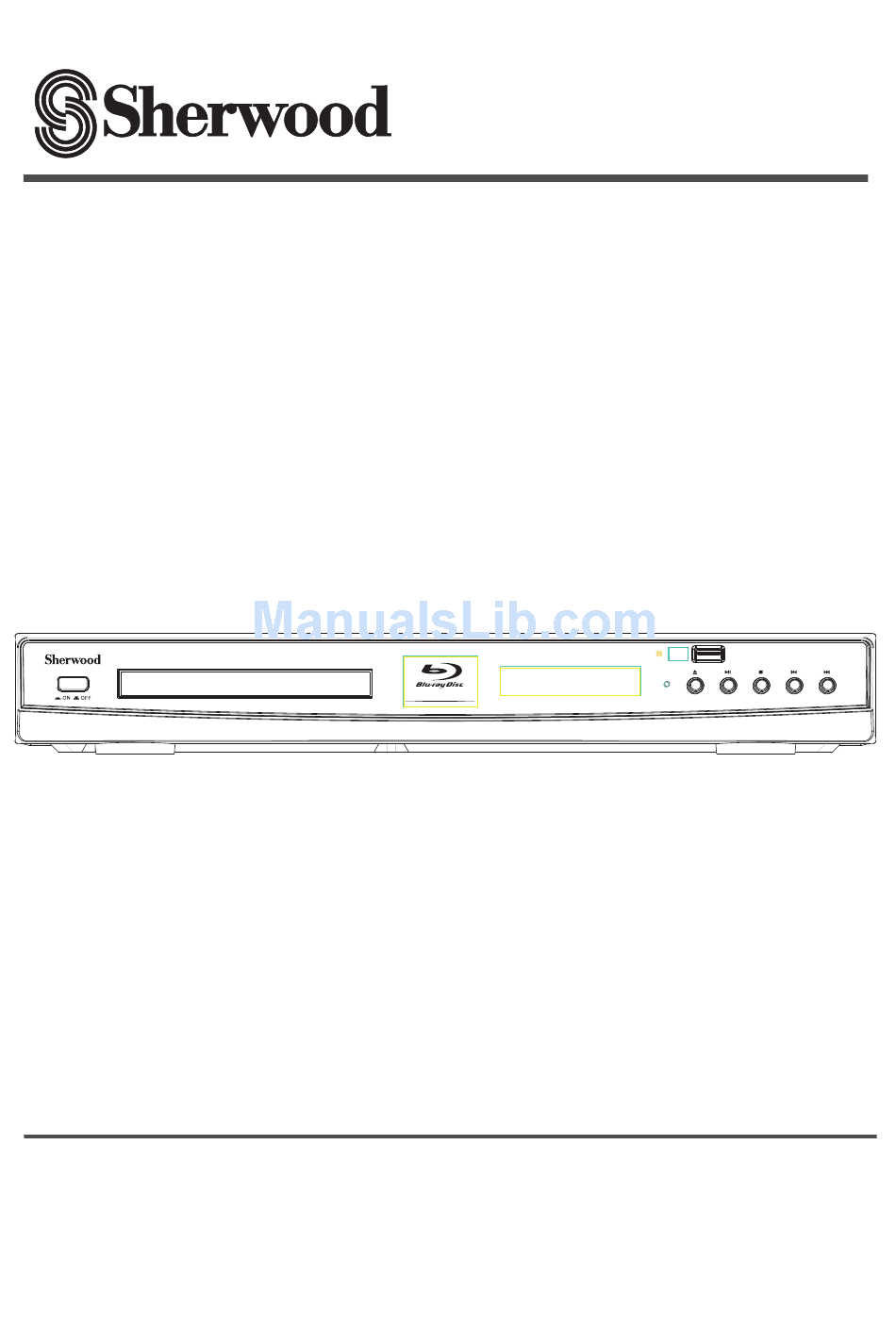

  • Page 1 OPERATING INSTRUCTIONS BDP-5004 BLU-RAY DISC PLAYER BDP-5004 Please read this User Manual carefully to ensure proper use of this product and keep this manual for future reference.

  • Page 2: Table Of Contents

    Content Important Safety Instructions 1. Overview 2. Front Panel and Rear Panel Illustration . Output Illustration . Remote Control 5.System Setting 6. Audio, Video, Picture files on disk or USB devices 7. BD-Live Operation 8. Trouble shooting 9. Specifications...

  • Page 3: Important Safety Instructions

    Important Safety Instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings, install in accordance with the instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

  • Page 4: Overview

    1. OVERVIEW This BD player has the capability of providing high-definition, cinema-like pictures and multi-channel audio. Soundtracks in more than one language are usually included on the disk, and subtitles in more languages are often included as well. 1.1 PLAYABLE DISK TYPES The following types of disks can play in the REF player: Blu-Ray Disks DVD Video Disks...

  • Page 5: Front Panel And Rear Panel Illustration

    2. Front Panel and Rear Panel Illustration 2.1 Front panel BDP-5004 POWER CABIN DOOR BD LIGHT DISPLAY 2.2 Rear panel VIDEO OUT COAXIAL COMPONENT ANALOG AUDIO OUTPUT AUDIO OUT HDMI OUT(1080P) COMPONENT ANALOG AUDIO OUTPUT Component Video output (Y, Pb, Pr)
  • Page 6 2.3 TV Set Connections YPbPr IN COMPONENT ANALOG AUDIO OUTPUT 2.3.1 CONNECT BD PLAYER TO TV SET BY AV CABLE Connect the BD player s FL and FR jack to the audio input jack on the TV. Connect the BD player s video out jack to the video input jack of TV. 2.3.2 CONNECT THE BD PLAYER TO TV SET USING THE Y/Pb/Pr JACKS Use the COMPONENT Cable(not supplied) to connect BD player to your TV.
  • Page 7 2.3.4 Connecting to an AV Amplifier with Digital Audio Input COMPONENT ANALOG AUDIO OUTPUT Notes: 1. Select the Coaxial digital audio output. 2. Set the digital Amplifier to the AV input connected to the BD player. VIDEO OUT COAXIAL AUDIO OUT HDMI OUT(1080P) Ananlog Amplifier or Speaker...

  • Page 8: Output Illustration

    3. Output Illustration 3.1 Video Output Capabilities Each of the video outputs are capable of different levels of functionality, as described in the table below. Actual output will depend on setup menu settings and TV capabilities for HDMI televisions. BD Player Video Output HDMI Component Video...
  • Page 9 3.3 Connectors Description 3.3.1 Analog 7.1 Audio Outputs Connect these outputs to the analog inputs of a surround sound receiver. (If surround sound receiver is 5.1 channel, leave the rear channels sound receivers can also accept digital audio signals via SPDIF, or HDMI connection 3.3.2.

  • Page 10: Remote Control

    4. Remote Control STANDBY OPEN/CLOSE ANGLE SUBTITLE AUDIO POP MENU/TITLE MENU RANDOM BONUS VIEW SECONDARY SECONDARY AUDIO SUBTITLE ENTER SETUP DISPLAY STEP SLOW PREV NEXT MUTE STOP GOTO CLEAR REPEAT RETURN 8.Bonus View On BD disks, this button is used to turn the video portion of the director's commentary (picture-in-a-picture) on and off.
  • Page 11 16.STOP This button stops playback of a BD/DVD movie or files on disk. 17. CLEAR When entering numeric values via the numeric keypad , this button is used to clear a number entered incorrectly. 18.GOTO This button is used with the numeric keypad to jump to a specific track on an audio CD. 19.

  • Page 12: System Setting

    5.System Setting Press SETUP button under stop status or press RIGHT button in main menu. System will bring out setting menu as below picture: Main Menu Settings 5.1Language 5.1.1 OSD: set language used for user interface displayed . 5.1.2 Menu: set language used for BD/DVD menu (not available on all disk). 5.1.3 Audio: select audio language for BD/DVD disk (not available on all disk) .
  • Page 13 5.2Display 5.2.1 TV Type: Select to output NTSC or PAL video format . 5.2.2 Resolution: Set maximum resolution of your TV here to get best video quantity, if you are not sure, please use HDMI Auto, system will read the preferred resolution your TV supported via EDID.
  • Page 14 5.3 Audio 5.3.1 PCM Downsampling: select right bitrate for PCM signal to ensure your SPDIF receiver can handle it correctly. It's no effect for HDMI digital audio output. 5.3.2 Digital Output: If you only have two speakers, set PCM stereo. If you connect receiver with more than two speakers, please refer to below tables: 5.3.3 Dynamic Range Control: means that you can allow the BD player to make the loud parts of amovie's audio track quieter than they would be in the theatre, without...
  • Page 15 For example: If your TV is also CEC -enabled and you will turn off your TV, the Blu-Ray player will get a CEC signal and turn off automatically. Or if you turn on your Blu-Ray player, your TV will automatically turn on and switch to HDMI input.

  • Page 16: Audio, Video, Picture Files On Disk Or Usb Devices

    5.5.8 Secondary DNS: Show current Secondary DNS or access user input while in “Manual” IP mode. Press ENTER key while Apply button is highlighted to activate setting you made, or press ENTER key while Cancel button is highlighted to cancel changes you made for network settings.
  • Page 17 6.3 Disk or USB devices preparation 6.3.1 CD-R/RW, DVD+/-R, DVD+/-RW, BD-R or BD-RE with supported files recorded in UDF or ISO9660 format (must be finalized) can be playback on this BD player. 6.3.2 USB device with supported files on it's FAT/FAT32 partition will be recognized. 6.4 Browsing video files 6.4.1 Select Videos icon in main menu which will appear after BD player read out disk or/and USB device.
  • Page 18 6.5 Browsing Audio files 6.5.1 Select Music icon in main menu which will appear after BD player read out disk or /and USB device. Press ENTER key while Music icon is highlighted, system will bring out a sub menu for file source selection.( Figure 5-3 ) Videos Settings Music...
  • Page 19 6.6 Browsing picture files 6.6.1 Select Pictures icon in main menu which will appear after BD player read out disk or/and USB device . Press ENTER key while Pictures icon is highlighted, system will bring out a sub menu for file source selection.( Figure 5-5) Videos Settings Music...
  • Page 20 6.7 File playback 6.7.1 Refer to Figure 5-7, select “ Play All” to play all selected type files on selected media, or select ”Play Current Folder” to play all selected type files in current folder. Add all to Playlist Previous folder Play File 6.7.2 Also you can choose to play current highlighted file refer to Figure 5-8.

  • Page 21: Bd-Live Operation

    7. BD-Live Operation 7.1 D escription Some (but certainly not all) BD disks contain additional features that are made available to players that are connected to the internet, and have additional memory added. These additional features may include things like -the ability to download new movie trailers, -additional 'commentary' by actors and directors, multiperson...
  • Page 22 7.4.3 The player will connect to internet and show download menu as below picture. Note: This can take several minutes. 7.4.4 You can select the content to download from the Previews sub menu. Note: This can take several minutes. 7.4.5 The downloaded content is stored under My Downloads. You can choose to either play back or delete the downloaded content 7.5 BD-Live Notes 7.5.1 This player only supports the connection of USB memory in order to store BD 2.0...

  • Page 23: Trouble Shooting

    8. Trouble shooting Ensure you have entered the correct AV input for your TV. Ensure you have entered the correct AV input for your TV.

  • Page 24: Specifications

    9. Specifications General Power requirements: AC 100-240 Volt, 50/60Hz Power consumption: 35W Discs Compatibility: BD,DVD,DVD+/-R/RW,VCD,CD-DA,CD-R/RW. Video out Video out: 1.0V(p-p)/75 , sync, negative polarity, RCA pin jack x 1 Audio out 7.1 channel out: RCA pin jackx8 Coaxial out: 0.5V(p-p)75 , RCA pin Jack x l Frequency response: 20Hz to 20kHz S/N ratio:>90dB Total harmonic distortion: <-65dB...
