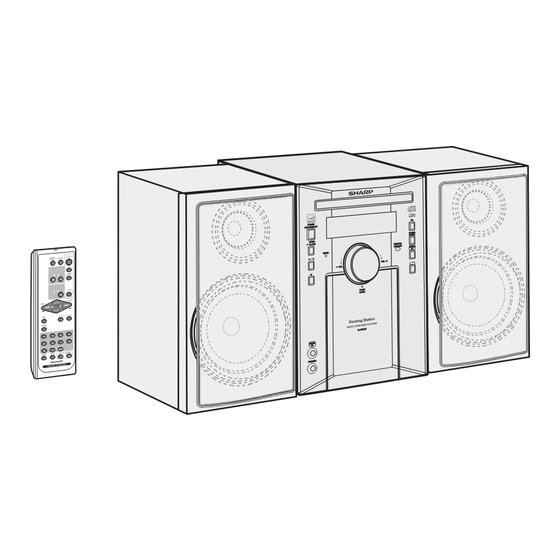

MICRO COMPONENT SYSTEM
MODEL
XL-DK227N
OPERATION MANUAL
iPod is a registered trademark of Apple Inc.
Thank you for purchasing this SHARP product.
To obtain the best performance from this product, please read this
manual carefully. It will guide you in operating your SHARP product.
XL-DK227N Micro component system consisting of XL-DK227N (main
unit) and CP-DK227N (speaker system).
Accessories
Please confirm that only the following accessories are included.
Remote control
1
(RRMCGA152AWSA)
FM antenna
1
(92LFANT1535A)
AM loop antenna
1
(QANTL0010AWZZ)
®
iPod
adaptor
8
(UACRTA008AW01)

Advertisement

Table of Contents
loading

Related Manuals for Sharp XL DK227N

Summary of Contents for Sharp XL DK227N

  • Page 1 Thank you for purchasing this SHARP product. To obtain the best performance from this product, please read this manual carefully. It will guide you in operating your SHARP product. XL-DK227N Micro component system consisting of XL-DK227N (main unit) and CP-DK227N (speaker system).

  • Page 2: Special Notes

    SPECIAL NOTES XL-DK227N CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVIC- ING TO QUALIFIED SERVICE PERSONNEL. Explanation of Graphical Symbols: The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS (continued) XL-DK227N 18) Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions : a) When the AC cord or plug is damaged, b) If liquid has been spilled, or objects have fallen into the product, c) If the product has been exposed to rain or water, d) If the product does not operate normally by following...

  • Page 5: Table Of Contents

    ® ENERGY STAR Program Information Products that have earned the ENERGY STAR designed to protect the environment through superior energy efficiency. To comply with the ENERGY STAR ® standards mentioned above, please cancel the demonstration mode, as described on page ENERGY STAR ®...

  • Page 6: Precautions

    Using this product with a higher voltage other than that which is specified is dangerous and may result in a fire or other type of accident causing damage. SHARP will not be held responsible for any damage resulting from use of this unit with a voltage other than that which is specified.

  • Page 7: Controls And Indicators

    Controls and indicators Docking Station MICRO COMPONENT SYSTEM Front panel 1. Disc Tray ........20 2.

  • Page 8: Speaker System

    Controls and indicators (continued) XL-DK227N Display 1. MP3/WMA Folder Indicator ......25 2. MP3/WMA Title Indicators ......25 3.
  • Page 9 Remote control 1. Remote Control Transmitter ......13 2. Disc Clear/Dimmer, iPod Menu Button ... . . 19, 23 3.

  • Page 10: System Connections

    System connections XL-DK227N Make sure to unplug the AC power cord before making any connections. Antenna connection (see page 11) AM loop antenna FM antenna Right speaker Left speaker Speaker connection (see page 11) AC outlet (AC 120 V ~ 60 Hz) AC power connection (see page 12)
  • Page 11 Antenna connection Supplied FM antenna: Connect the FM antenna wire to the FM 75 OHMS jack and position the FM antenna wire in the direction where the strongest signal can be received. Supplied AM loop antenna: Connect the AM loop antenna to the AM and GND terminals. Position the AM loop antenna for optimum reception.

  • Page 12: System Connections

    System connections (continued) XL-DK227N AC power connection After checking all the connections have been made correctly, plug the AC power cord of this unit into the AC outlet. If you plug in the unit first, the unit will enter the demonstration mode. Note: Unplug the AC power cord from the AC outlet if the unit will not be in use for a prolonged period of time.

  • Page 13: Remote Control

    Remote control Battery installation Use 2 “AA” size batteries (UM/SUM-3, R6, HP-7 or similar). Batteries are not included. 1 Open the battery cover. 2 Insert the batteries according to the direction indicated in the battery compartment. When inserting or removing the batteries, push them toward the battery terminals.

  • Page 14: General Control

    General control XL-DK227N To turn the power on Press the ON/STAND-BY button to turn the power on. After use: Press the ON/STAND-BY button to enter the power stand-by mode. Illumination light control When the unit’s power is turned on, the ring around the volume control lights up.

  • Page 15: Setting The Clock (Remote Control Only)

    Setting the clock (Remote Control only) In this example, the clock is set for the 12-hour (AM 12:00) display. Press the ON/STAND-BY button to turn the power on. Press the CLOCK/TIMER button. Within 10 seconds, press the select “CLOCK”, and press the MEMORY button. Press the button to select 12-hour or 24- hour display and then press the MEMORY button.

  • Page 16: Listening To The Ipod

    Listening to the iPod XL-DK227N Supported iPod models: iPod nano (software 1.2 above) iPod mini (software 1.2 above) 5th Generation iPod (software 1.2 above) (Dock connector equipped Click Wheel model) 4th Generation iPod (software 3.0.2 above) (Dock connector equipped Click Wheel model) iPod nano 2G (software 1.0.0 above) iPod nano 3G (software 1.0.3 above) iPod classic (software 1.0.3 above)
  • Page 17 To insert iPod adaptor 1. Press the ON/STAND-BY button to turn the power on. 2. Open the iPod docking station by pushing the area marked “ PUSH OPEN”. 3. Insert the iPod adaptor into the ipod dock and connect your iPod. iPod iPod (bottom) Dock connector...
  • Page 18 Listening to the iPod (continued) XL-DK227N To disconnect iPod Simply remove the iPod from the iPod dock. It is safe to do so even during playback. Navigating the iPod menus with the remote con- trol Press the CLEAR/DIMMER button to view the menu on iPod unit.

  • Page 19: Listening To A Cd Or Mp3/Wma Disc

    Various iPod functions Function Main unit Remote control Play Press in the pause mode. Pause Press in the playback mode. Track up/ ____ Press in the playback or down pause mode. If you press the button in the pause mode, press the desired track.
  • Page 20 Listening to a CD or MP3/WMA disc (continued) XL-DK227N Docking Station MICRO COMPONENT SYSTEM Press the ON/STAND-BY button to turn the power on. Press the CD button. Press the OPEN/CLOSE button to open the disc tray. Place the disc on the disc tray, label side up. Be sure to place 3"...

  • Page 21: Advanced Cd Or Mp3/Wma Disc Playback

    Various disc functions Function Main unit Remote control Play Press in the stop mode. Stop Press in the playback mode. Pause Press in the playback mode. Press the resume playback from the paused point. Track up/ Press in the playback or stop Track mode.
  • Page 22 Advanced CD or MP3/WMA disc playback (continued) XL-DK227N Repeat play Repeat play can play one track, all tracks or a programmed sequence continuously. To repeat one track: Press the PLAY MODE button once. Press the button. To repeat all tracks: Press the PLAY MODE button twice.
  • Page 23 Programmed play You can choose up to 32 selections for playback in the order you like. While in the stop mode, press the MEMORY button on the remote control to enter the programming save mode. Press the direct search buttons on the remote control to select the desired track.

  • Page 24: Mp3/Wma Folder Mode (Only For Mp3/Wma Files)

    MP3/WMA folder mode (only for MP3/WMA files) XL-DK227N To play back MP3/WMA (Windows Media Audio) file There are many music sites on the internet that you can download MP3/WMA (Windows Media Audio) music files. Follow the instructions from the website on how to download the music files. You can then play back these downloaded music files by burning them to a CD-R/RW disc.
  • Page 25 Procedure to play back MP3/WMA disc with folder mode on To play back CD-R/RW. Press the CD button, and load an MP3/WMA disc. After disc is loaded, disc info will be displayed. MP3 indicator WMA indicator Disc Name Press the FOLDER button, and press the TUNING ( ) button to select desired playback folder.

  • Page 26: Listening To The Radio

    Listening to the radio XL-DK227N Auto power on function: When you press any of the following buttons, the unit turns on. TUNER (BAND) button (main unit and remote control): The unit turns on and the “TUNER” function is activated. button on the main unit: The unit turns on and playback of the last function starts (CD, TUNER, AUDIO IN, iPod).
  • Page 27 Memorizing a station You can store 40 AM and FM stations in memory and recall them at the push of a button. (Preset tuning) Perform steps 1 - 3 in “Tuning” on page 26. Press the MEMORY button to enter the preset tuning saving mode.

  • Page 28: Timer And Sleep Operation (Remote Control Only)

    Timer and sleep operation (Remote Control only) XL-DK227N Timer playback: The unit turns on and plays the desired source (CD, TUNER, iPod, AUDIO IN) at a preset time. This unit has 2 types of timer: ONCE TIMER and DAILY TIMER. Once timer: Once timer play works for one time only at a preset time.
  • Page 29 Within 10 seconds, press the select “ONCE SET” or “DAILY SET”, and press the MEMORY button. Press the button to adjust the hour and then press the MEMORY button. The illustrations show the timer playback setting in the daily timer mode. Press the button to adjust the minutes and then press the MEMORY button.
  • Page 30 Timer and sleep operation (Remote Control only) (continued) XL-DK227N Note: When performing timer playback using another unit connected to the iPod terminal or AUDIO IN jack, select “iPod” or “AUDIO IN” in step 8. This unit will turn on or enter the power stand-by mode automatically. However, the connected unit to AUDIO IN jack will not turn on or off.

  • Page 31: Enhancing Your System

    To cancel the sleep operation: Press the ON/STAND-BY button while “SLEEP” is indicated. To cancel the sleep operation without setting the unit to the stand-by mode, proceed as follows. 1 While “SLEEP” is indicated, press the CLOCK/TIMER button. 2 Within 10 seconds, press the “SLEEP OFF”, and press the MEMORY button.

  • Page 32: Ipod

    Enhancing your system (continued) XL-DK227N Auto power on function: When you press any of the following buttons, the unit turns on. AUDIO IN button (main unit and remote control): The unit turns on and the “AUDIO IN” function is activated. button on the main unit: The unit turns on and playback of the last function starts (CD,TUNER, AUDIO IN, iPod).

  • Page 33: Troubleshooting Chart

    Troubleshooting chart Many potential problems can be resolved by the owner without calling a service technician. If something is wrong with this product, check the following before calling your authorized SHARP dealer or service center. General Symptom Possible cause The clock is not set to the Did a power failure occur? Reset correct time.

  • Page 34: Maintenance

    Troubleshooting chart (continued) XL-DK227N Condensation Sudden temperature changes, storage or operation in an extremely humid environment may cause condensation inside the cabinet (CD pickup, etc.) or on the transmitter on the remote control. Condensation can cause the unit to malfunction. If this happens, leave the power on with no disc in the unit until normal playback is possible (about 1 hour).

  • Page 35: Specifications

    Specifications As part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

  • Page 36: Consumer Limited Warranty

    Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer.
