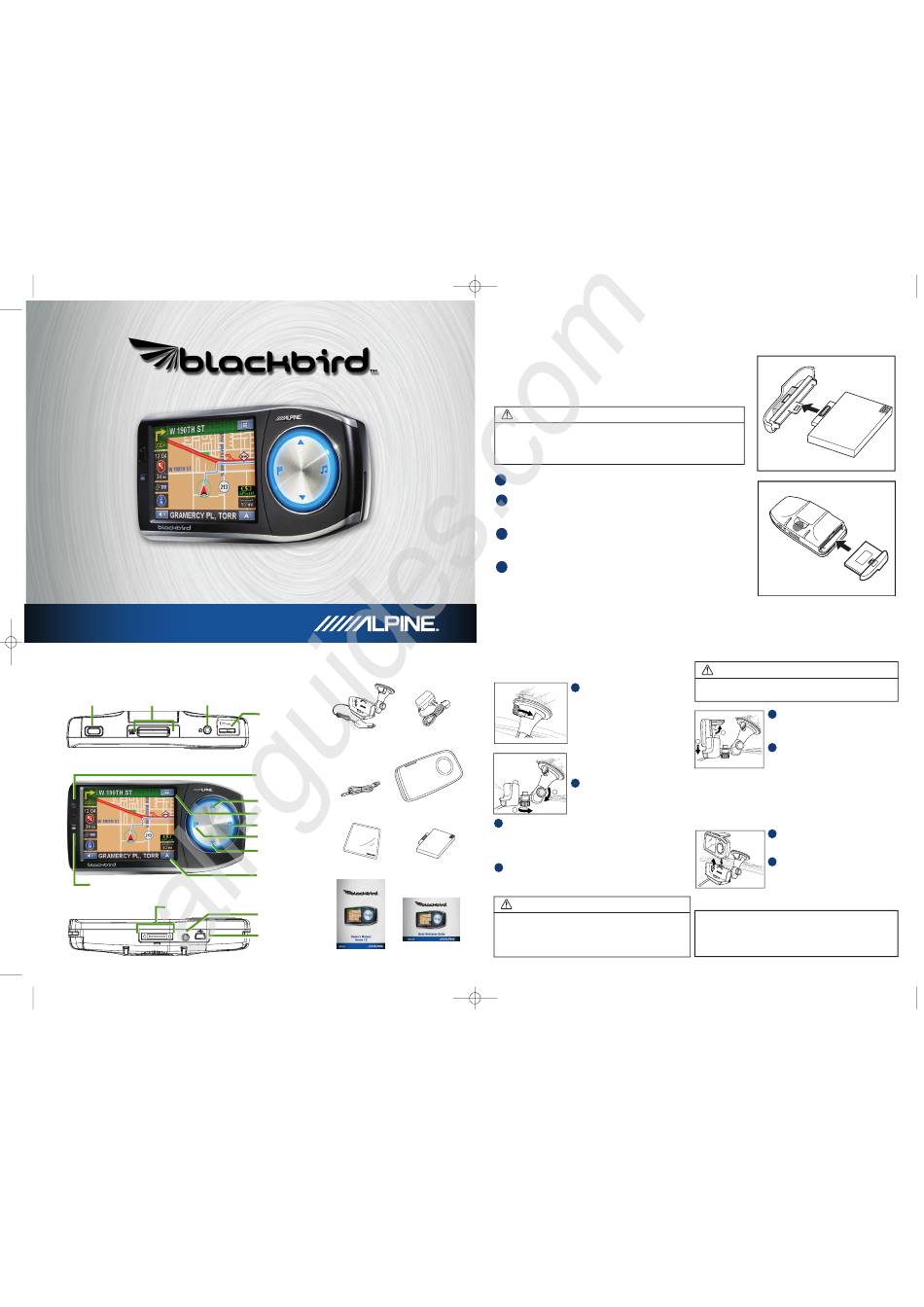

Quick Reference Guide
PMD-B100

■ In the Box

Power Button– Press
and hold for 2 seconds
SD/MMC Card Slot Headphone Jack
to power on the unit.
Battery Charging
Status Indicator
Cradle Connector
All manuals and user guides at all-guides.com
Volume
Control
Cradle with Cigarette AC Adapter
Lighter Charger
Remote Sensor
and Ambient
Light Sensor
Map Zoom In
USB Cable Carrying Case
Main Menu
Music
Destination
Map Zoom Out
Wiping Cloth 1200mAh Battery
Current
Vehicle
Position Icon
External GPS
Antenna Connector
Mini USB
Connector
Quick Reference
Owner's Manual
Guide

■ Installing the Battery

Before using Blackbird, install the included rechargeable
battery. It is recommended that the battery be charged
using the supplied AC adapter for 8 hours before using
the system.
WARNING
Always turn off power to the system before installing or
removing the battery. Failure to do so will result in damage
to your system.
1
Place Blackbird face down on a flat surface.
2
Press the battery door and pull away from the main
unit body.
3 Attach the battery to the battery door will be a click
sound-heard.
4 Insert and slide the battery assembly back into the
main unit until a click sound is heard.
Note: Avoid removing this battery from the main unit. If the
battery needs to be replaced, dispose of it in accordance
with local hazardous material requirements.

■ How to Mount Blackbird

1
Find a spot suitable for the
navigation system.
Ensure that both the suction
cup and windshield area are
clean and free of dirt and
grease before attaching it.
Stick the suction cup mount
against the windshield. Turn
the knob to activate the
vacuum to lock the position.
2
Turn the knob counterclock-
wise to adjust up/down
2
position. Then turn clockwise
to set the position.
3
3
Turn the knob clockwise to adjust right/left position.
Then turn counter clockwise to set the position.
DEVICE SHOULD NOT BE INSTALLED SO THAT
IT OBSTRUCTS THE DRIVER'S VIEW.
4
Open the antenna before inserting the navigation
system into the cradle. For best reception sensitivi-
ty, position the antenna 90 degrees to the main unit.
WARNING
Improper installation may make the navigation
system fall out from the cradle while driving. Please
make sure all locks and knobs are turned tight.
Do not install the navigation while driving.
CAUTION
Remove the navigation system when you are away
from the vehicle to prevent theft.
5
Slide the navigation system into
the cradle until you hear a click
sound.
4
5
6 Plug the cigarette lighter charg-
er into the cigarette lighter
socket.
■ To Remove the Navigation System
from the Cradle
1
Press and hold the eject button
on the cradle.
2
Grasp the navigation system
behind the antenna and remove
by sliding up and out of the
cradle.
Note to California consumers:
California Vehicle
Code 26708 prohibits the placement of any object
on windows. Refer to your authorized Alpine deal-
er for other installation options.
