QUICK REFERENCE GUIDE
5
1
2
3
This manual illustrates a Stand Alone application. For other types of installations, such as
ID-NET™, Pass-Through, Multiplexer Layout, etc. and for a complete scanner configuration using
Genius™ configuration program, refer to the DS4800 Reference Manual available on the CD.
This manual is also downloadable from the Web at www.automation.datalogic.com/ds4800.
NOTE
DS4800 OM
4
3
2

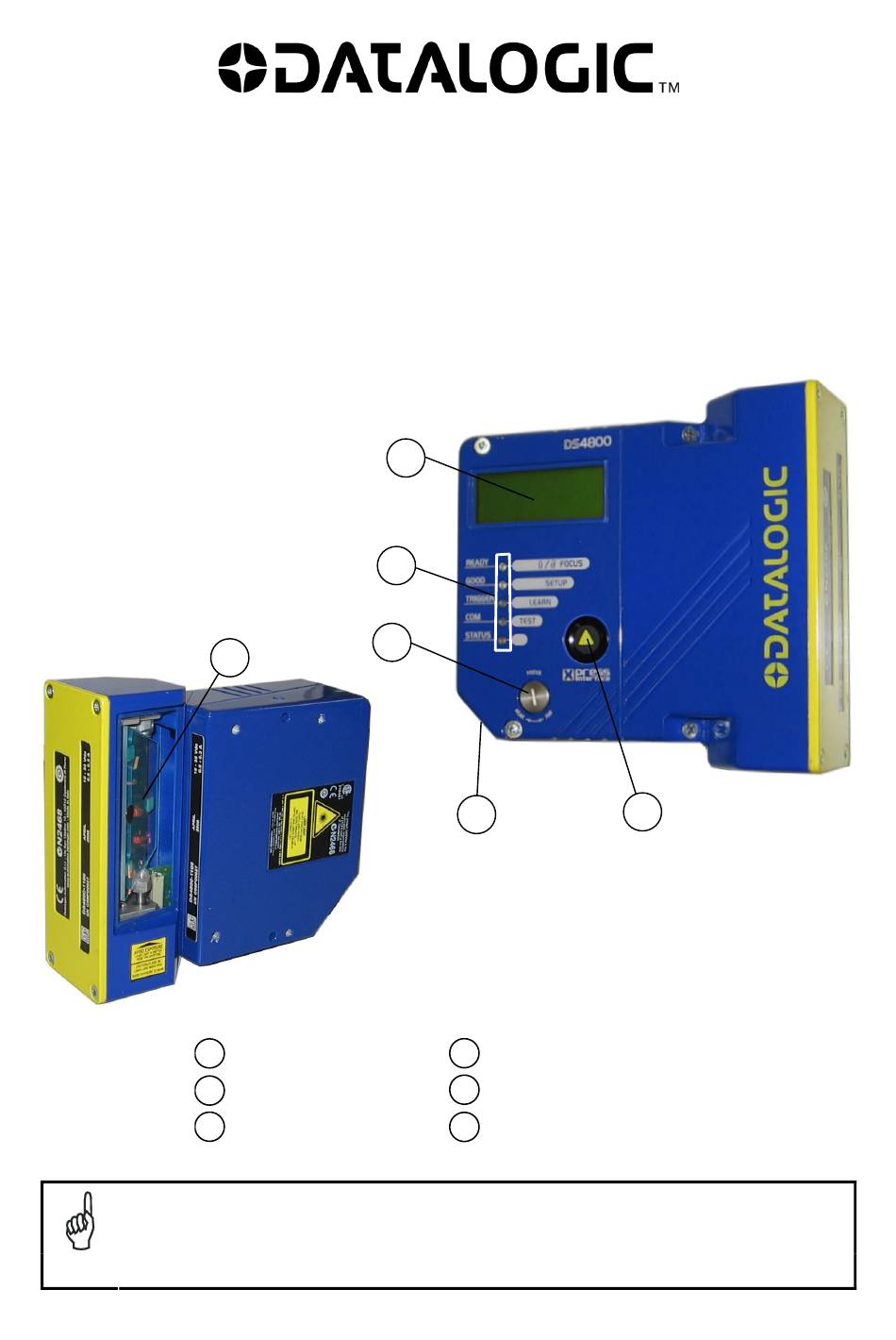

"POWER ON" LED
Focus Adjustment
Indicator LEDs
1
Figure A
Display
4
Laser Beam Output Window
5
Push Button
6
6
Advertisement
Table of Contents
Related Manuals for Datalogic DS4800 OM
Summary of Contents for Datalogic DS4800 OM
- Page 1 This manual illustrates a Stand Alone application. For other types of installations, such as ID-NET™, Pass-Through, Multiplexer Layout, etc. and for a complete scanner configuration using Genius™ configuration program, refer to the DS4800 Reference Manual available on the CD. This manual is also downloadable from the Web at www.automation.datalogic.com/ds4800. NOTE...
-
Page 2: Updates And Language Availability
E-mail form and listing of Datalogic Subsidiaries LEGAL NOTICES © 2009 Datalogic Automation S.r.l. ALL RIGHTS RESERVED. Protected to the fullest extent under U.S. and international laws. Copying, or altering of this document is prohibited without express written consent from Datalogic Automation S.r.l. -
Page 3: Step 1 - Connect The System
* Presence Sensor P.S. (for On-Line mode) Figure 1 – DS4800 OM in Stand Alone Layout CBX100/500 Pinout for DS4800 OM The table below gives the pinout of the CBX100/500 terminal block connectors. Use this pinout when the DS4800 OM reader is connected by means of the CBX100/500:... - Page 4 The table below gives the pinout of the 25-pin male D-sub connector for connection to the power supply and input/output signals. Use this pinout when the DS4800 OM reader is connected by means of the 25-pin connector: Figure 2 - 25-pin Male D-sub Connector...
-
Page 5: Step 2 - Mount And Position The Scanner
DS4800 OM QUICK GUIDE STEP 2 – MOUNT AND POSITION THE SCANNER To mount the DS4800 OM, use the mounting bracket to obtain the most suitable position for the reader as shown in the figures below. Skew -45° -15° alignment marks 0°... - Page 6 DS4800 OM QUICK GUIDE The DS4800 OM is completely software controlled and software programmable through Genius™ which allows adjusting the oscillating frequency and the minimum and maximum oscillation angles of two separate reading zones. When the oscillating mirror is programmed to read barcode labels at small angles, position the reader to assure at least 15°...
-
Page 7: Step 3 - Focus The Scanner
DS4800 OM QUICK GUIDE STEP 3 – FOCUS THE SCANNER The reading distance depends on the focus distance of the scanner and should be set according to the application requirements. The Focus Position is set directly through the focus adjustment screw on the front panel of the scanner. -
Page 8: Step 4 - X-Press™ Configuration
DS4800 OM QUICK GUIDE STEP 4 – X-PRESS™ CONFIGURATION X-PRESS™ is the intuitive Human Machine Interface designed to improve ease of installation and maintenance. Status and diagnostic information are clearly presented on the display (which can be configured in various... -
Page 9: Auto Setup (Optional)
DS4800 OM QUICK GUIDE If the barcode cannot be read because of low contrast or excessive ambient light, you can perform the AutoSetup function to optimize the optical parameters. Then you can perform AutoLearn to recognize the barcode symbology. NOTE * In case of Programming Barcodes, refer to the “ID-NET™... - Page 10 DS4800 OM QUICK GUIDE RESET SCANNER TO FACTORY DEFAULT (OPTIONAL) If it ever becomes necessary to reset the scanner to the factory default values, you can perform this procedure by holding the X-PRESS™ push button pressed while powering up the scanner. At the end of the procedure (about 5-6 seconds), the Configuration and Environmental parameters are reset, all LEDs blink simultaneously 3 times and the message "Default Set"...
-
Page 11: Step 5 - Install Genius™ Configuration Program
DS4800 OM QUICK GUIDE STEP 5 – INSTALL GENIUS™ CONFIGURATION PROGRAM ™ Genius is a Datalogic scanner configuration tool providing several important advantages: Wizard approach for new users; Multi-language version; Defined configuration directly stored in the reader;... - Page 12 DS4800 OM QUICK GUIDE Barcode selection and definition Operating mode selection and definition Digital Outputs configuration Hardware interface selection Output data format configuration The On Line operating Mode requires the reader to be connected to an External Trigger/Presence Sensor using I1A and I1B inputs.
- Page 13 DS4800 OM QUICK GUIDE After defining the parameter values the following window appears allowing to complete the reader configuration as follows: Saving the configuration to disk; Switching to Advanced mode; Sending the configuration to the scanner. After sending the configuration to the scanner you have completed the configuration process.
- Page 14 DS4800 OM QUICK GUIDE OM CONFIGURATION PARAMETERS The DS4800 OM scanner is configurable exclusively through the Genius™ utility program. The DS4800 scanner must have software version 004 or later. NOTE The following software configuration parameters are available through Genius™ and described below for...
- Page 15 DS4800 OM QUICK GUIDE Second Zone Trigger This parameters defines the number of the input or the phase working as trigger. Selections: Phase (available only when working in On Line operating mode) Input 1 Input 2 Second Zone Trigger Level This parameter allows setting the active state of the trigger.
-
Page 16: Step 6 - Test Mode
DS4800 OM QUICK GUIDE STEP 6 – TEST MODE Use a code suitable to your application to test the system. Alternatively, you can use the Datalogic Test Chart (Code 128). When entering the X-PRESS™ interface on the DS4800 Oscillating Mirror remains in the default fixed position (0°) in order to make barcode reading easier while performing the X-PRESS™... -
Page 17: Advanced Scanner Configuration
ADVANCED SCANNER CONFIGURATION For further details on advanced product configuration, refer to the complete Reference Manual on the installation CD-ROM or downloadable from the web site through this link: www.automation.datalogic.com/ds4800 . The following are alternative or advanced scanner configuration methods:... -
Page 18: Reading Diagrams
DS4800 OM QUICK GUIDE APPENDIX READING DIAGRAMS DS4800 OM-X1XX Focus Distance 30 cm (Near) (in) 100 (cm) CONDITIONS 0.50 mm Code = Code 128 (20 mils) PCS = 0.90 Pitch angle = 0° Skew angle = 15° Tilt angle = 0° to 30°... - Page 19 DS4800 OM QUICK GUIDE DS4800 OM-X1XX Focus Distance 40 cm (Medium) (in) 100 (cm) 0.50 mm CONDITIONS (20 mils) Code = Code 128 PCS = 0.90 Pitch angle = 0° Skew angle = 15° Tilt angle = 0° to 30°...
-
Page 20: Reading Performance
DS4800 OM QUICK GUIDE READING PERFORMANCE Version Reading Distance Max Code Resolution Speed mm (mils) scans/s F = 30 Near 21 cm (8.3 in) - 43 cm (16.9 in) on 0.50 mm (20 mils) codes 0.20 (8) F = 40 Medium 25 cm (9.8 in) - 64 cm (25.2 in) on 0.50 mm (20 mils) codes... -
Page 21: Mechanical Installation
[0.39] [0.23] [1.34] [0.30] [in] 87.7 [0.31] [3.98] [0.31] [3.45] [0.21] 12.1 116.6 [3.19] [0.48] [4.59] Figure 11 – DS4800 OM Overall Dimensions [4.25] [0.12] [1.18] Ø5.5 [Ø0.22] [2.91] 76.9 [3.03] 27.5 [1.08] [in] Ø5.5 [Ø0.22] N°2 [2.76] [0.35] Figure 12 – Mounting Bracket Overall Dimensions... -
Page 22: Laser Safety
Figure 13 - Warning and Device Class Labels FCC COMPLIANCE Modifications or changes to this equipment without the expressed written approval of Datalogic could void the authority to use the equipment. This device complies with PART 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference which may cause undesired operation. - Page 23 DS4800 OM QUICK GUIDE PATENTS This product is covered by one or more of the following patents: U.S. patents 5,992,740; 6,394,352 B1; 6,742,710 B2; 6,688,524 B1 European patents 789,315 B1; 959,426 B9 Additional patents pending.
-
Page 24: Declaration Of Conformity
DECLARATION OF CONFORMITY Datalogic Automation S.r.l. Via S. Vitalino 13 40012 - Lippo di Calderara Bologna - Italy dichiara che declares that the déclare que le bescheinigt, daß das Gerät declare que el e tutti i suoi modelli DS4800-X1XX Laser Scanner OM;...
