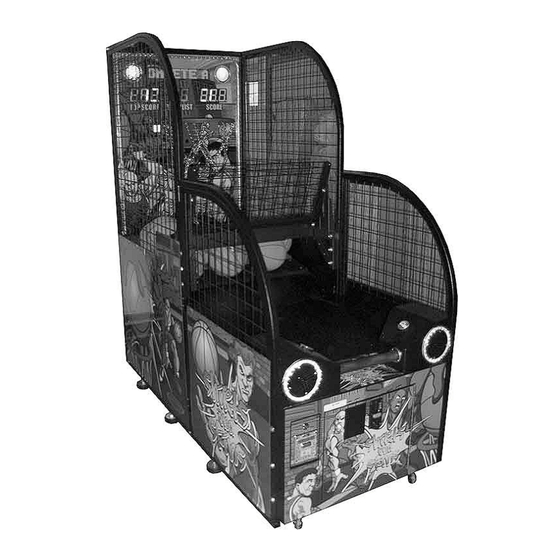

- Page 1 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 SHIRTS AND SKINS JUNIOR EDITION COASTAL AMUSEMENTS INC. 1935 SWARTHMORE AVE LAKEWOOD, NJ 08701 TEL: 732-905-6662 FAX: 732-905-6815...
- Page 2 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 W632 SHIRTS AND SKINS FUSE AT MAIN BOARDS （F1, 20 mm 2A GATE MOTOR; F2, 20 mm 2A BASKET MOTOR） - 2 -...
-
Page 3: How To Play
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 PROGRAM NO.：W632 • SPECIFICATION: Optical sensors for basket, hoop position and gate. • DEMO MUSIC: Available all the time. • FREE GAME: Set SW4 PIN#4 to ON and press START to play. - Page 4 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 LINKED GAME RULES 1. The DIP SW1 pin 5 must be set to ON to be able to play linked games; otherwise only single play is allowed.
- Page 5 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 SETUP TABLE PROGRAM：W632 INITIAL SETUP. O ON, X SW No DESCRIPTION SETUP DIP SW1 FEATURE COIN1 SW1-1,2 OFF 3:1 CREDITS OFF OFF 1:1 FEATURE COIN2 SW1-3,4...
- Page 6 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 SW No DESCRIPTION SETUP DIP SW2 FEATURE 5 ROUNDS Number SW2-1,2 OFF 4 ROUNDS ROUNDS 3 ROUNDS OFF OFF 2 ROUNDS FEATURE 75 SEC. GAME TIME of SW2-3,4 OFF 60 SEC.
- Page 7 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 SW No DESCRIPTION SETUP DIP SW3 FEATURE 60 POINTS TARGET SCORE SW3-1,2 OFF 50 POINTS round 40 POINTS OFF OFF 30 POINTS FEATURE 200 POINTS TARGET SCORE...
- Page 8 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 SW No DESCRIPTION SETUP DIP SW4 FEATURE 500 POINTS Target score 5 SW4-1,2 OFF 480 POINTS round 460 POINTS OFF OFF 450 POINTS FEATURE SW4-3 Keep CREDIT...
- Page 9 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 BOOKKEEPING Press【ACC】 button while in attract mode. Press【ACC】button switch between bookkeeping items. Press【TEST】button to quit. Hold【START】button for 2 seconds to reset the item ITEM NUMBER CONTAIN（5 digits , extends (CREDIT to TIME display）...
- Page 10 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 TEST Press【TEST】button while in attract mode. Press【TEST】button to switch between the testing items. To quit test mode, power off and on. ITEM CONTENT CREDIT TOP SCORE...
- Page 11 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 ERROR CODE EXPLANATION ERROR CONTENT SOLUTION CODE COIN1 1. ADJUST THE COIN MECH TO N.O. Error 1 ERROR 2. CHANGE THE COIN MECH IF IT’S BAD.
- Page 12 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 1. CHECK DIP SW1 PIN #6~#8 TO SEE IF THE SUB-GAME NUMBERS REPEAT. NUMBERS 2. CHECK IF J5 OR J6 ON THE MAIN TIMER BOARD IS LOOSE.
