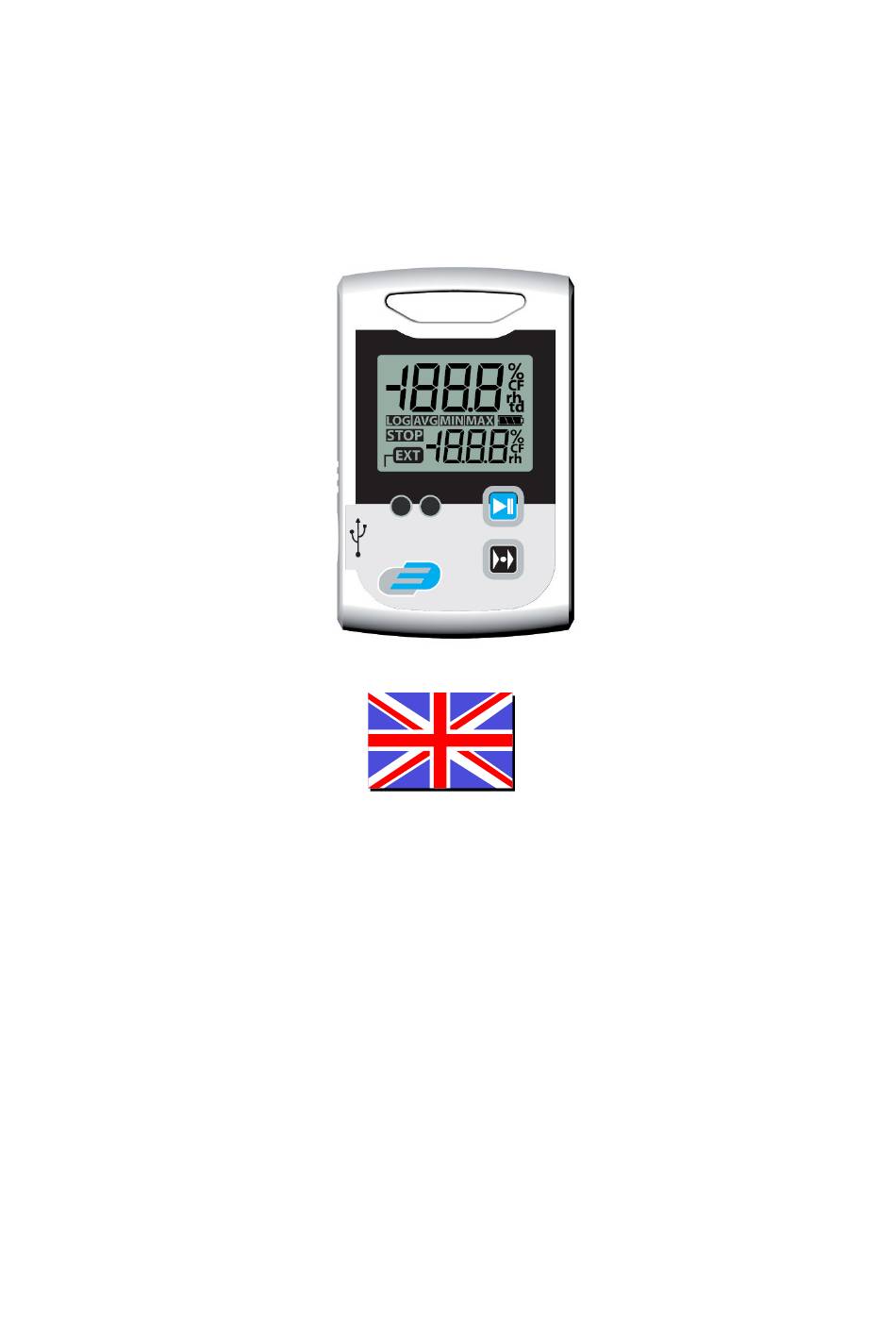

- Page 1 Data logger Log100/110 English Manual Log100_englisch_V010310_ohne_Software...
- Page 2 Contents 1. Introduction 1.1. General advice 1.2. Before operating 1.3. Standard settings(factory defaults) 1.4. Marking 2. Operation 2.1. USB-connection 2.2. Panel and display 2.3. Buttons handling 2.4. LCD display Segments 2.5. LED and Buzzer 2.6. USB-port 2.7. Data logger rear side / Battery case 2.8.
- Page 3 1. Introduction Dear customer, Thank you very much for purchasing one of our products. Before operating the data logger please read this manual carefully. You will get useful information for understanding all functions. 1.1 General advice For cleaning the instrument please do not use an abrasive cleaner only a dry or wet piece of soft cloth.
- Page 4 When the Software Installation has been completed please connect the PC with data logger via USB- cable. For detailed information please read the manual of the DE-LOG-Graph – Software. 2.2 Panel and display Log100/110 has a large display, two LEDs and two buttons. LCD-display indicate humidity, temperature, external temperature(in case of an external...
- Page 5 Measurement 2 External probe Measurement 1 displays the current relative humidity(Log110) or the current temperature(Log100). Unit Measurement 1 display the current measuring unit of measurement 1. Measurement 2 displays the measurement in the lower display line. Depending on the logger model, the settings of the internal or the external temperature measurement, average, minimum or maximum measurements will be displayed.
- Page 6 LED green: The green LED flashes during the logger start and according to the measuring interval if the standard settings hasn’t been changed. LED red: The red LED flashes when Hi- or Lo-Alarm has been achieved. Buzzer: The Buzzer rings when Hi- or Lo-Alarm has been achieved(if the buzzer is not deactivated). The Buzzer also rings when the configuration has been transferred successful from the PC to the Logger.
