- Page 1 IMM ERSE REVERB ERATOR...
- Page 2 Thank you for purchasing our product. We really mean it. We hope to earn your trust by delivering a quality product that inspires you to make great music. Neunaber products are designed and manufactured in Orange, California USA. Please visit www.neunaber.net for more information and support.

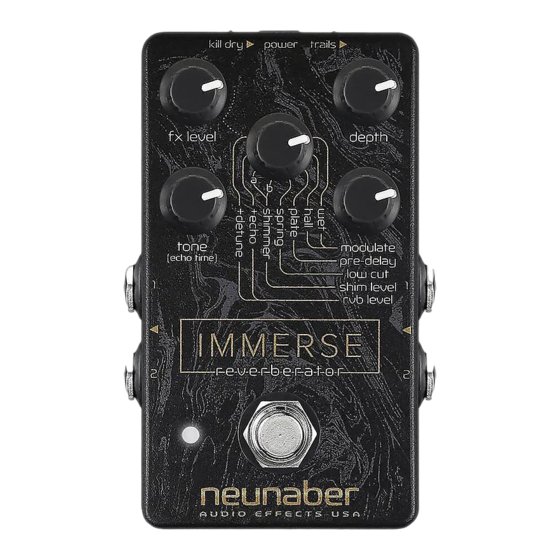

- Page 3 PEDAL MAP 9V DC kill dry switch trails switch fx level control depth control reverb selector tone / echo setting-specific time control control output 1 input 1 output 2 input 2 enabled/bypassed buffered bypass LED indicator switch...
- Page 4 CONNECTIONS We recommend that this pedal be placed at the end of your chain, after all other effects. If you are using the overdrive channel of your amplifier, this effect should be placed in the effects loop for best results. The POWER JACK accepts a standard (5.5 mm OD x 2.1 mm ID) center-negative pedal power adapter (not included).
- Page 5 Bypassing the effect does not lower power consumption, because it does not turn off power to the pedal. The Immerse Reverberator implements a high-quality buffered bypass. The signal is always buffered whether on or bypassed. We chose this type of bypass because the last output in a pedal chain should be buffered, and reverb is typically placed at the end of a pedal chain.
- Page 6 There have been various methods of simulating this effect over the years, several of which have evolved into their own distinct sounds. WET™ WET™ is an updated version of Neunaber’s renowned algorithm, with shorter pre-delay, higher initial density and more balanced imaging. (See suggested settings below.)
- Page 7 HALL Hall reverb is known for its large, open sound—similar to what one may find in a well-designed concert hall. S UG G EST ED adjusts the length of the adjusts the reverb SE TT ING S reverb tail (size of the level acoustic space) fx level...
- Page 8 SPRING A physical spring reverb uses metal springs suspended between transducers and produces a distinctive initial “twerp.” SU GGEST ED adjusts the length of the adjusts the reverb SET T I NGS reverb tail (size of the level acoustic space) fx level depth controls the...
- Page 9 +ECHO The +echo effect combines the Wet™ Reverb with an echo effect. adjusts the length of SU G G EST ED adjusts the level of SE TT ING S the reverb tail and the both reverb and echo repeats of the echo fx level depth controls the mix between...
-
Page 10: Specifications
SPECIFICATIONS Electrical Nominal input level -10 dBV, instrument level Absolute max input level 6 dBV Input impedance 1 MΩ (mono), 2 MΩ (stereo) Output impedance 500 Ω (mono), 1 kΩ (stereo) Gain, enabled vs. bypass 0 dB (mix @ 0) Frequency response 20 Hz—20 kHz, +0.1 dB, -0.5 dB (dry signal or bypassed) - Page 11 At Neunaber, we love to see what you guys do with your ‘toys’. We encourage you to tag us in your posts, pictures & videos featuring your Neunaber gear! To stay connected, go ahead and follow us on the channels seen below. We can’t...
- Page 12 net...
