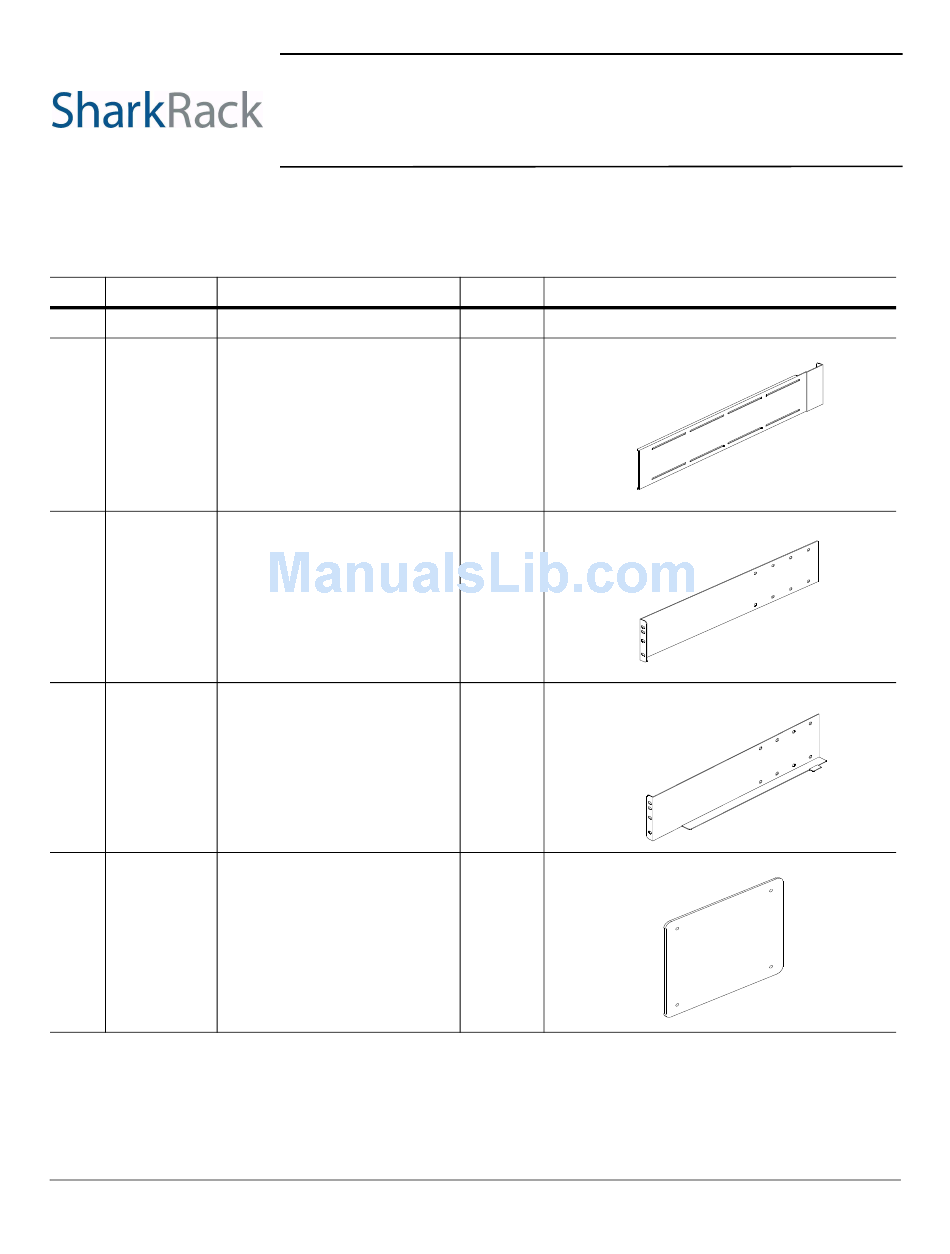

Kit Contents
List # Part #
Part Name
1
SH03001
Rear Mounting Bracket
2
SH03002
Right Front Mounting Bracket
3
SH03003
Left Front Mounting Bracket
4
SH03004
Back Plate
SHP900096-000
T3 Rack Mount Kit
for the Sun Microsystems StorEdge T3 Array
04/13/05 Rev 2
Proprietary Information of SharkRack, Inc.
32920 Alvarado Niles Road Ste 250, Union City, CA 94587
510-477-7900• 510-324-1664 • www.sharkrack.com
Quantity
Detail
2
1
1
2
T3-R19-H
Page 1 of 5
Advertisement
Table of Contents
Related Manuals for SharkRack T3-R19-H
Summary of Contents for SharkRack T3-R19-H
- Page 1 Right Front Mounting Bracket SH03003 Left Front Mounting Bracket SH03004 Back Plate SHP900096-000 32920 Alvarado Niles Road Ste 250, Union City, CA 94587 Quantity Detail 04/13/05 Rev 2 Proprietary Information of SharkRack, Inc. 510-477-7900• 510-324-1664 • www.sharkrack.com T3-R19-H Page 1 of 5...
- Page 2 T3 Rack Mount Kit Installation Instructions List # Part # Part Name SH03005 Left Chassis Mount SH03006 Right Chassis Mount SH03007 Hardware Packet • 8-32 x 3/8” Flathead Screw (9) • 10-32 x 1/4” Flathead Screw (5) • 10-32 x 1/2” Panhead Screw (14) Note: The T3 hardware packet contains some extra screws and nuts.
-
Page 3: Installation Instructions
T3 Rack Mount Kit Installation Instructions Installation Instructions Step 1. Measure the distance from the front rack rail to the rear rack rail. Distance = _________ 2. Assemble the left front mounting bracket, rear mounting bracket, and back plate in the order as shown. - Page 4 T3 Rack Mount Kit Installation Instructions Step 8. Remove the feet from the bottom of the StorEdge T3 array. 9. Install the left mounting chassis on the bottom left side of the T3 array and secure with two 10-32 x 1/4-inch flat head screws. 10.
- Page 5 T3 Rack Mount Kit Installation Instructions Warranty LIMITED WARRANTY AND WARRANTY DISCLAIMER - Seller warrants that the System will be free from defects in materials and workmanship for a period of one (1) year from date of delivery to customer premises. Seller’s sole liability and Customer’s sole and exclusive remedy for any breach of this warranty is, at Seller’s option and expense, to repair or replace any defective System that is returned to it by Customer.
