- Page 1 DT-3369T-BT AC/DC TRMS CLAMP METER With Mobile APP...
-
Page 2: Safety Notes
Safety International Safety Symbols This symbol, adjacent to another symbol or terminal, indicates the user must refer to the manual for further information. This symbol, adjacent to a terminal, indicates that, under normal use, hazardous voltages may be present Double insulation SAFETY NOTES •... - Page 3 CAUTIONS • Improper use of this meter can cause damage, shock, injury or death. Read and understand this user manual before operating the meter. • Always remove the test leads before replacing the battery or fuses. • Inspect the condition of the test leads and the meter itself for any damage before operating the meter.

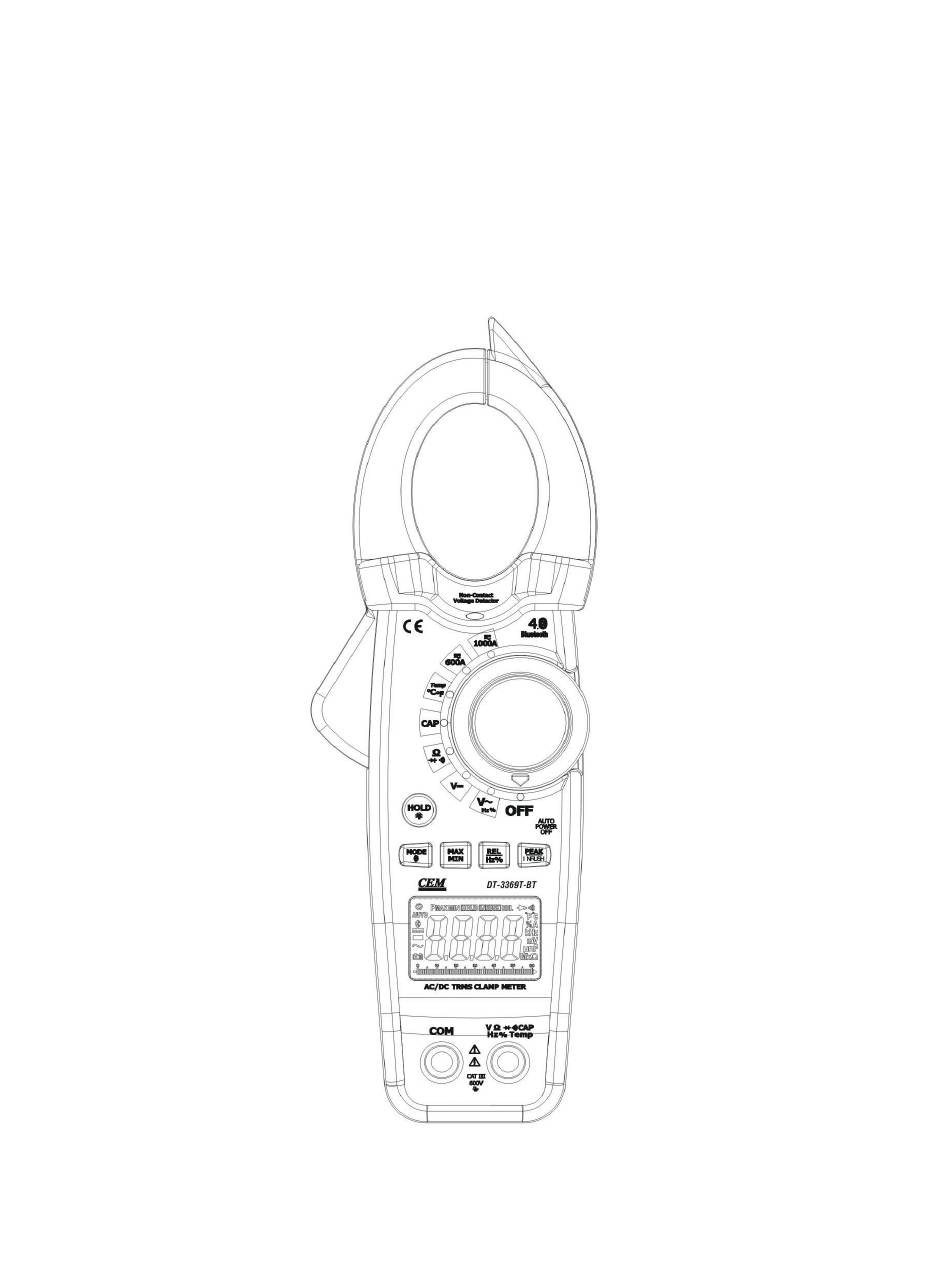

- Page 4 Description Meter Description 1. NCV Test 2. Current clamp 3. Non-contact AC voltage indicator light 4. Clamp trigger 5. Rotary Function switch 6. Data Hold and Backlight button 7. PEAK and INRUSH button 8. REL and HZ% button 9. MODE select and Bluetooth button 10.
-
Page 5: Specifications
Specifications Accuracy Function Range Resolution (% of reading + digits) True 60.00 10 mA +2.5% of rdg + 8 digits Current 600.0A 100mA +2.5% of rdg + 8 digits (Auto Rang) 1000A +2.8% of rdg + 8 digits Over rang protection: Maximum input 1000A Accuracy specified from 5% to 100% of the measuring range Frequency Response: 50Hz to 60Hz True RMS... - Page 6 Accuracy Function Range Resolution (% of reading + digits) 60.00nF 10pF +5% of rdg + 30digits 600.0nF 0.1nF +3% of rdg + 5digits 6.000uF +3% of rdg + 5digits Capacitance (Auto-ranging) 60.00uF 10nF +3% of rdg + 5digits 600.0uF 0.1uF +4% of rdg + 10digits 6000uF 10uF...
-
Page 7: General Specifications
Function Testing Condition Reading Forward DCA is approx.1mA, Diode Forward voltage drop of Diode open circuit Voltage MAX . 3V Buzzer makes a long sound, While Continuity Test current MAX. 1.5mA resistance is less than(50Ω) Input Protection: 300V dc or 300V ac rms. General Specifications Clamp jaw opening 1.2"... -
Page 8: Operation
Operation NOTES: Read and understand all Warning and Caution statements in this operation manual prior to using this meter. Set the function select switch to the OFF position when the meter is not in use. AC/DC Current Measurements WARNING: Ensure that the test leads are disconnected from the meter before making current clamp measurements. - Page 9 measuring. 1. Set the function switch to the CAP position. 2. Insert the black test lead banana plug into the negative COM jack and the re %·Ω Ω Ω Ω positive jack. d test lead banana plug into the V· ·CAP·TEMP·Hz ...
-
Page 10: Non-Contact Ac Voltage Measurements
2. Set the function switch to the Ω Ω Ω Ω •))). position. 3. Use the MODE button to select continuity “• • • • )))”. The display icons will change when the MODE button is pressed. - Page 11 between F or C. and in current position to select between AC or DC current measurements. To press and hold the mode key to turn the system on, the auto power off function will be cancelled. Press the Mode/Bluetooth until the Bluetooth turns on or off. PEAK/ INRUSH NOTE: Only ACV functions can do the peak value measurement.
-
Page 12: Maintenance
The LCD is equipped with backlighting for easier viewing, especially in dimly lit areas. Press the backlight button to turn the backlight on. Press again to turn the backlight off. Note that the meter does have an auto power off feature as described below. Automatic Power OFF In order to conserve battery life, the meter will automatically turn off after approximately 15 minutes.
