Instruction Manual for

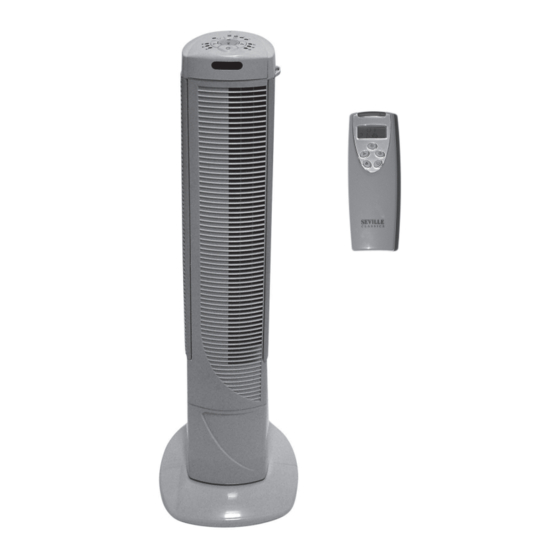

UltraSlimline Floor Fan
Model: 10187 (with remote-control)
Voltage: 120V AC
PLEASE READ AND SAVE THESE INSTRUCTIONS
c 2006 Seville Classics Inc. (800)-323-5565 or (310)-533-3800
1
Frequency: 60 HZ
Current: 0.6 A
www.sevilleclassics.com
B
A
BASE-Front
FAN-Body
D
E
Fan-Body SCREWS
Base SCREWS
and CLIPS
STEP 1
Remove the 4 SCREWS D from the center post
on the bottom of the FAN - body A .
Parts List
C
BASE-Back
F
Remote Control
Fan Assembly
2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Seville Classics 10187
Summary of Contents for Seville Classics 10187
-
Page 1: Assembly
Instruction Manual for UltraSlimline Floor Fan Model: 10187 (with remote-control) Voltage: 120V AC Frequency: 60 HZ PLEASE READ AND SAVE THESE INSTRUCTIONS c 2006 Seville Classics Inc. (800)-323-5565 or (310)-533-3800 www.sevilleclassics.com FAN-Body Current: 0.6 A Fan-Body SCREWS STEP 1 Parts List... -
Page 2: Control Panel
BASE. Align the BASE front with the FAN front and insert the four posts on the FAN body into the four holes on the top of the BASE, it will only go one way. Place the 4 SCREWS D into the holes through the bottom of the base and tighten securely. - Page 3 Controlling the Oscillation Angles: To change the wind direction, place both hands on the fan and turn the fan body to the left or right. There are 5 positions to choose from to change the oscillation angle. To have the fan fully oscillate...
-
Page 4: Remote Control
UltraSlimline Remote Control for Floor Fan To use your remote, point the top end directly at the front of the fan aiming at the little window just below the control panel on the top of the fan. Functions: Power Button -Turns fan ON & OFF...
