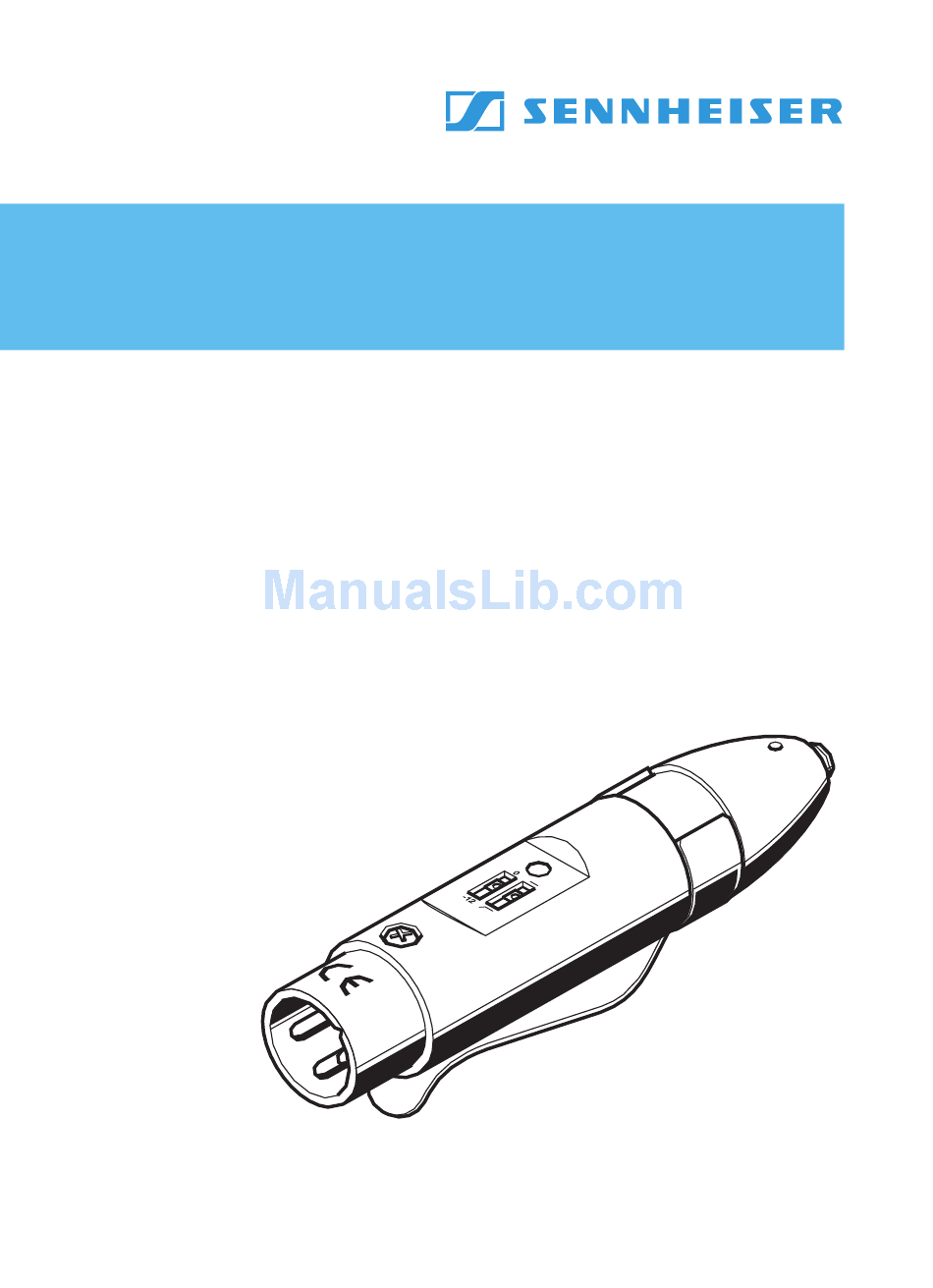

- Page 1 MZA 900 P Bedienungsanleitung Instructions for use Notice d‘emploi Istruzioni per l‘uso Instrucciones para el uso Gebruiksaanwijzing...
- Page 3 MZA 900 P(-4) for wired applications (e.g. in the studio) or with a bodypack transmitter (e.g. on stage). The MZA 900 P can also be used as a cable tester for XLR microphone cables (see page 5). ME 2...
- Page 4 Use a balanced XLR cable to connect the XLR output to the phantom powered microphone input of the subsequent device. If necessary, you can do without the cable and connect the MZA 900 P directly to the XLR input socket of the device. annoying...
- Page 5 Switchable roll-off filter The roll-off filter allows the MZA 900 P to be adapted to Sennheiser HSP and clip-on microphones. With the roll- off filter switched on ( ), the low-frequency signal portions (below 125 Hz) are attenuated, thus increasing speech intelligibility.
- Page 6 Operation and over-modulation indication The MZA 900 P features a two- colour LED. LED lights up in green: The MZA 900 P is properly powered and there is no over- modulation (normal operation). LED lights up in red: A flashing red LED at high sound pressure levels indicates over-modulation of the microphone or overloading of the MZA 900 P’s output.
- Page 7 Using the MZA 900 P as a cable tester The MZA 900 P can also be used as a cable tester for XLR microphone cables. For this, there is no need to connect a microphone. Connect one end of the cable to be tested to a mixing console with activated phantom powering.
-
Page 8: Pin Assignment
Pin assignment Mikrofon 3,5 mm MZA 900 P 3,5 mm XLR- 3 M Kabel XLR-3 F XLR-3 M symmetrisch Mikrofon MZA 900 P-4 rear view 3-pin special socket front view XLR- 3 M rear view... -
Page 9: Specifications
Output impedance Min. load impedance at 0 dB pre-attenuation –12 dB pre-attenuation Power supply Connector Input socket MZA 900 P MZA 900 P-4 Dimensions Weight Operating temperature range –20 to +60°C Humidity range 20–20,000 Hz (–1 dB) 0/–12 dB 125 Hz (–3 dB), 12 dB/oct... -
Page 10: Manufacturer Declarations
Manufacturer declarations Warranty 2 years Approval Sennheiser electronic GmbH & Co. KG declare that this device is in compliance with the applicable CE standards and regula- tions. WEEE Declaration Please dispose of this product at the end of its operational li- fetime by bringing it to your local collection point or recycling centre for such equipment. - Page 12 Sennheiser electronic GmbH & Co. KG 30900 Wedemark, Germany Phone +49 (5130) 600 0 Fax +49 (5130) 600 300 www.sennheiser.com Printed in Germany Publ. 06/06 516535/A01...
