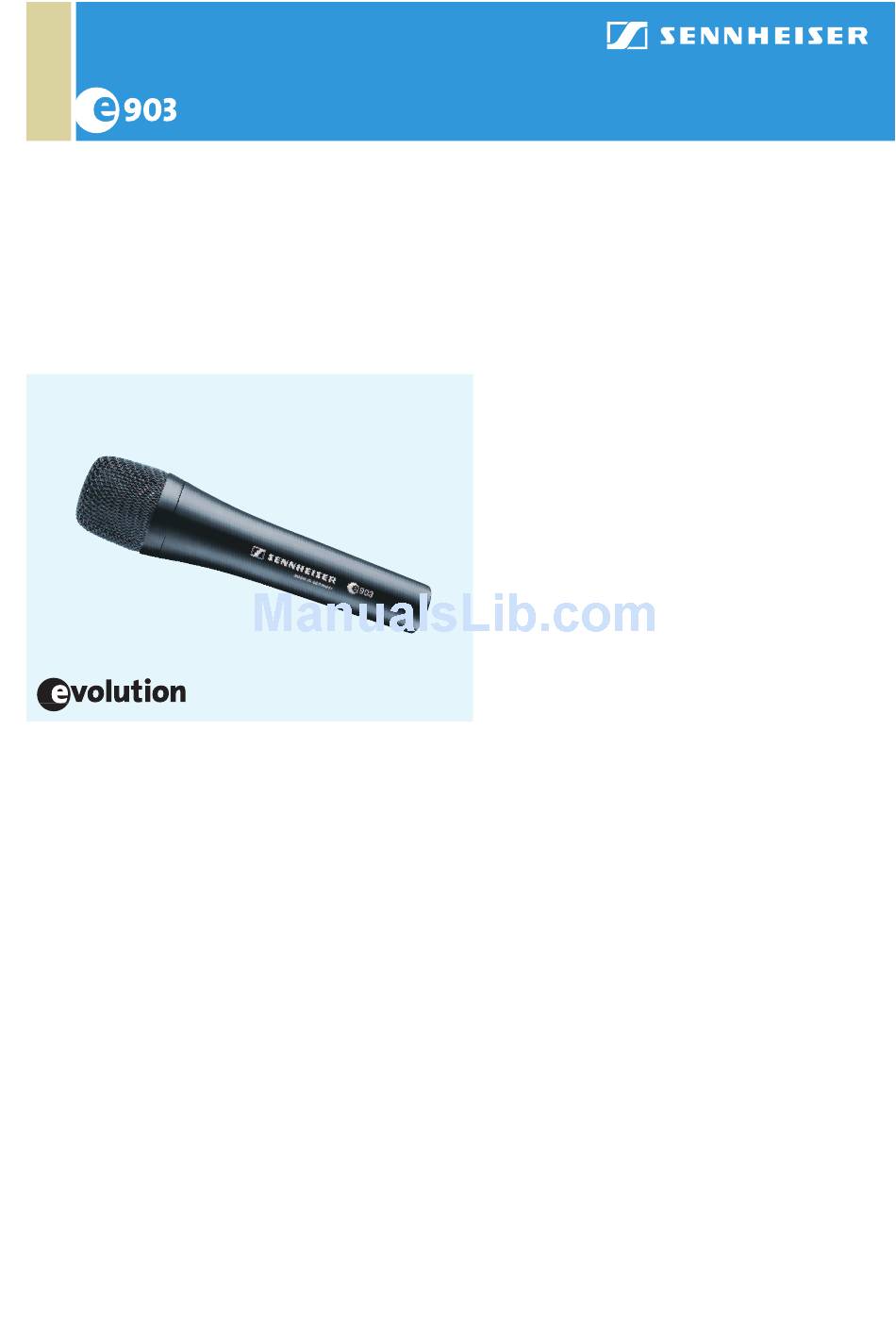

Sennheiser Evolution e903 Technical Data

Microphones |
General Description
Featuring high maximum SPL and excellent transient response, the cardioid
e 903 is suitable for a wide range of instruments, and an ideal choice for
miking snare drums.
Features
Rugged metal body
Advanced shock-mount design for excellent suppression
of handling noise
Consistent on-/off-axis response
Hum compensating coil
Delivery includes a pouch and a microphone clamp
Dynamic Microphone
Technical Data
Pick-up pattern ...................................................................... cardioid
Frequency response ................................................. 40 – 16,000 Hz
Sensitivity
(free field, no load, 1 kHz) ...........................2.8 mV/Pa at 1 kHz =
Nominal impedance ................................................................. 350 Ω
Min. terminating impedance ..................................................... 1 kΩ
Dimensions ....................................................................41 x 176 mm
Weight ........................................................................................ 320 g
Profile
Cardioid instrument microphone, hum compensating coil,
fre quency response 40 – 16,000 Hz, sensitivity (free field,
no load) 2,8 mV/Pa at 1 kHz = 51 dB (0 dB = 1V/Pa), nominal
impedance 350 Ω, min. terminating impedance 1 kΩ, dimen-
sions 41 x 176 mm, weight 320 g.
Cat. No. 009889
51 dB (0 dB = 1V/Pa)
