Sennheiser Evolution E 906 Instructions For Use Manual
Sennheiser microphone user manual
Hide thumbs
Also See for Evolution E 906:
- Instructions to user (31 pages) ,
- Instruction manual (12 pages) ,
- Brochure & specs (6 pages)
Related Manuals for Sennheiser Evolution E 906
Summary of Contents for Sennheiser Evolution E 906
- Page 1 Bedienungsanleitung Instructions for use Notice d‘emploi Istruzioni per l‘uso Instrucciones para el uso Gebruiksaanwijzing...
- Page 2 Bedienungsanleitung... 3 Instructions for use ...11 Notice d’emploi ...19 Istruzioni per l’uso...27 Instrucciones para el uso...35 Gebruiksaanwijzing...43...

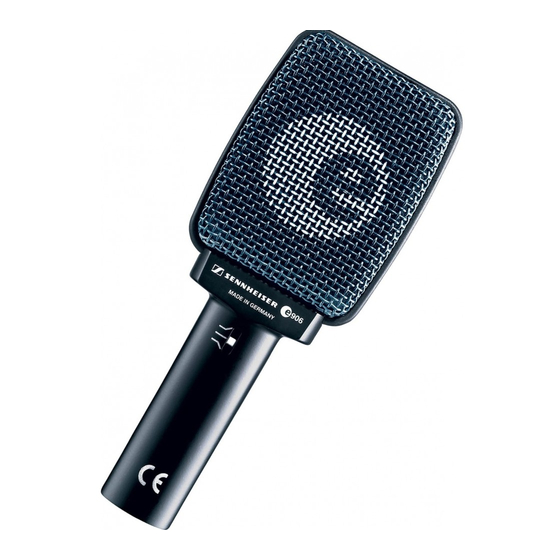

- Page 3 High-quality dynamic microphone with super-cardioid pick-up pattern, ideal for miking guitar amps, percussion instruments, snares and toms. Its laterally mounted capsule has been specially developed for miking guitars amps face on and and extremely close to the signal source. The switchable sound characteristics have been optimally adapted to the requirements of guitarists.
-
Page 4: Delivery Includes
The filter is adjusted via the slide switch on the microphone. To move the slide switch to a different position, use a pointed tool such as a small screwdriver. The switch has three positions (see also the frequency... - Page 5 Pin assignment of XLR-3 connector 6,3 mm 6,3 mm balanced symmetrisch...
-
Page 6: Positioning The Microphone
Positioning the microphone Loudspeaker of a guitar amplifier Position Resulting sound Many trebles, aggressive sound Less trebles, more lower mids, smoother sound Balanced, natural sound Less trebles, more lower mids, smoother sound Commentary Microphone directed towards the dome of the loudspeaker. - Page 7 Drums Position In order to prevent interference due to crosstalk between adjacent sound sources, try to position the microphone so that the interfering sound source is located in the angle area of the highest cancellation of the microphone (approx. 120°).
-
Page 8: Frequency Response Curve
Polar diagram 60° 90° 120° 150° 125 Hz 250 Hz 500 Hz 1000 Hz Frequency response curve - 40 - 50 - 60 - 70 - 80 - 90 Switch position Schalterstellung ° 30° 180° 500 1000 2000 30° 60° 90°... -
Page 9: Specifications
Accessories The following accessories are available for the MZQ 100 microphone clamp (Cat. No. 02155) Specifications Transducer principle Frequency response Pick-up pattern Sensitivity (free field, no load) Nominal impedance (at 1 kHz) Min. terminating impedance Connector Weight Dimensions in mm... -
Page 10: Overview Of Microphone Applications
Overview of microphone applications Variant Application Vocals Choir Studio, acoustic instruments Orchestra Trumpets, Trombones Saxophone Acoustic guitar Acoustic bass Guitar amplifiers Bass amplifiers Leslie Piano, grand piano Kick Drum Snare Drum Rack toms Floor toms Congas Cymbals Percussion Overhead... - Page 11 Sennheiser electronic GmbH & Co. KG erklären, dass dieses Gerät die anwendbaren CE-Normen und Vorschriften erfüllt. Approval Sennheiser electronic GmbH & Co. KG declare that this device is in compliance with the applicable CE standards and regulations. Certification Sennheiser electronic GmbH & Co. KG déclarons que cet appareil est en conformité...
- Page 12 Sennheiser electronic GmbH & Co. KG 30900 Wedemark, Germany Phone +49 (5130) 600 0 Fax +49 (5130) 600 300 www.sennheiser.com Printed in Germany Publ. 04/05 94277/A03...
