Summary of Contents for Sennheiser Evolution E 901

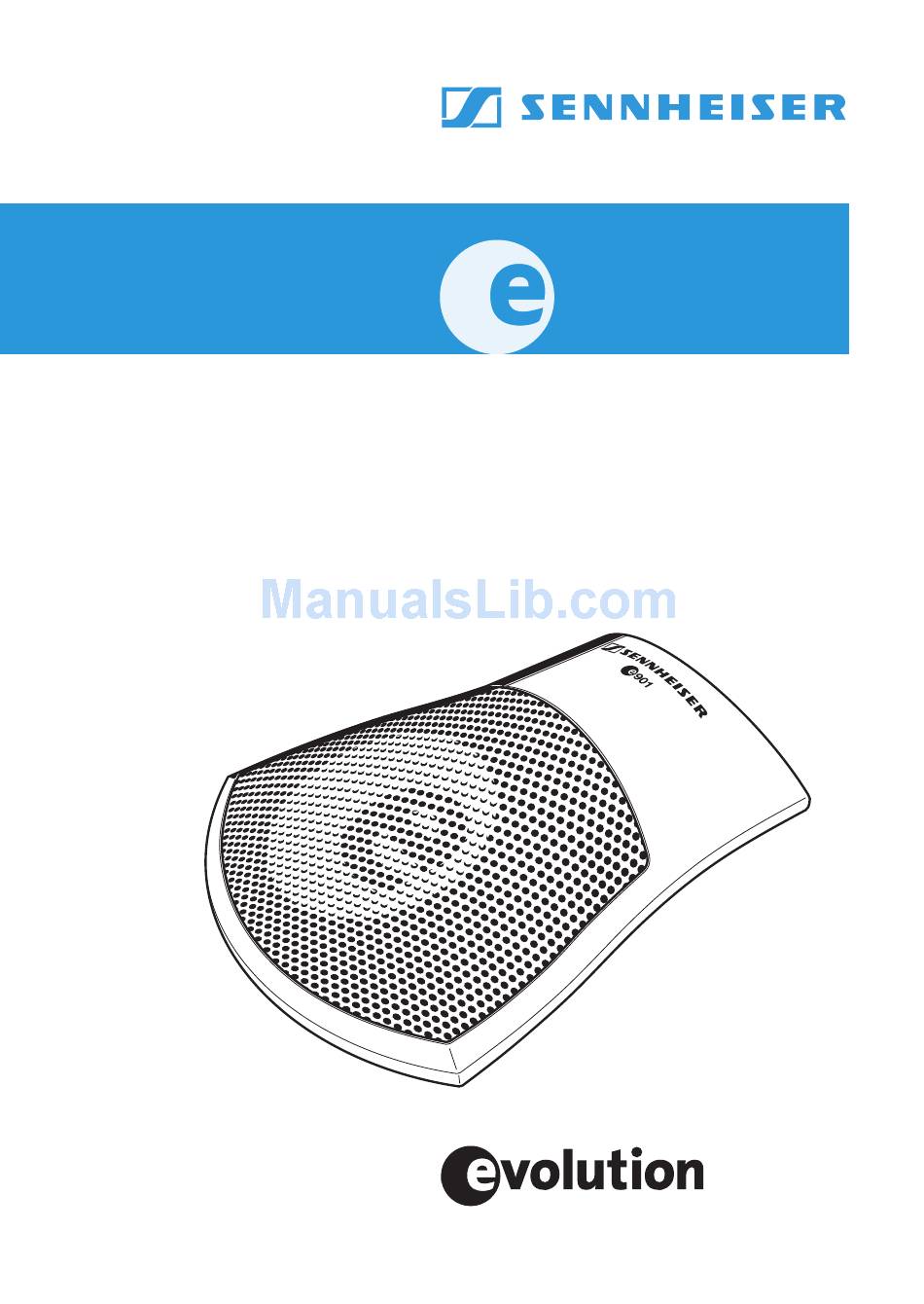

- Page 1 Bedienungsanleitung Instructions for use Notice d‘emploi Istruzioni per l‘uso Instrucciones para el uso Gebruiksaanwijzing...
- Page 2 Bedienungsanleitung... 3 Instructions for use ... 9 Notice d’emploi ...15 Istruzioni per l’uso...21 Instrucciones para el uso...27 Gebruiksaanwijzing...33...
-
Page 3: Delivery Includes
High-quality pre-polarised condenser microphone with half-cardioid pick-up pattern, especially suitable for use with kick drums. The extremely thin, high-strength diaphragm delivers a very low bass response and fast transient signals. Incidental rear noise is effectively rejected. Features Frequency response tailored for kick drum miking... -
Page 4: Positioning The Microphone
Kick drums Position In order to prevent interference due to crosstalk between adjacent sound sources, try to position the microphone so that the interfering sound source is located in the angle area of the highest cancellation of the microphone (approx. 180°; see polar diagram). -
Page 5: Polar Diagram
Polar diagram 30° 60° 90° 120° 150° 125 Hz 250 Hz 500 Hz 1000 Hz Frequency response curve - 40 - 50 - 60 - 70 - 80 - 90 0°, 1 m 0° 180° 500 1000 2000 0°, 5 cm 30°... -
Page 6: Specifications
Phantom powering Max. sound pressure level at 1 kHz Connector Weight Dimensions Pin assignment of XLR-3 connector pre-polarised conden- ser microphone 20–20,000 Hz half-cardioid 0.5 mV/Pa < 100 Ω 1 kΩ 48 V / 1.1 mA 154 dB SPL XLR-3 550 g length: 126.5 mm... -
Page 7: Overview Of Microphone Applications
Overview of microphone applications Application Vocals Choirs Studio, acoustic instruments Orchestra Brass / Saxophone Acoustic guitar Acoustic bass Guitar amplifiers Bass amplifiers Leslie Piano, grand piano Kick drums Snare drums Rack toms Floor toms Congas Cymbals Percussion Overheads Variant... - Page 9 Sennheiser electronic GmbH & Co. KG erklären, dass dieses Gerät die anwendbaren CE-Normen und Vorschriften erfüllt. Approval Sennheiser electronic GmbH & Co. KG declare that this device is in compliance with the applicable CE standards and regulations. Certification Sennheiser electronic GmbH & Co. KG déclarons que cet appareil est en conformité...
- Page 10 Sennheiser electronic GmbH & Co. KG 30900 Wedemark, Germany Phone +49 (5130) 600 0 Fax +49 (5130) 600 300 www.sennheiser.com Printed in Germany Publ. 08/04 094279/A01...
