  • Page 1 Set 820 Bedienungsanleitung Instruction Manual Notice d´emploi Istruzioni per l´uso Instrucciones para el uso Gebruiksaanwijzing Bruksanvisning...
  • Page 3 Deutsch...3 English ... 23 Français ... 43 Italiano... 63 Español ... 83 Nederlands... 103 Svenska ... 123...

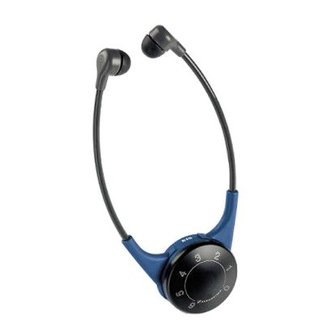

  • Page 5 Set 820 Thank you for choosing Sennheiser! Over half a century of accumulated expertise in the design and manufacture of high-quality audio equipment has made Sennheiser a world leader in the field of audiology. The Set 820 is an assistive listening system for your radio, TV, hi-fi system or similar sound sources at the volume you choose.
  • Page 6 Delivery includes The Set 820 consists of the following components and accessories: - Stethoset receiver - Transmitter (charging unit) - Rechargeable battery - Power supply - Connecting cable for headphone output - Adapter for SCART socket - Replacement ear pads - Instruction manual RR 820 TR 820...
  • Page 7 Connecting the transmitter (charging unit) The rear of the transmitter is fitted with two audio inputs: A socket (LINE) for connection to the audio output or the headphone socket on your TV, and a microphone socket (MIC). Plug in one end of the connecting cable to the audio output or the headphone socket on your TV, and the other end to the LINE socket on the transmitter.
  • Page 8 Only use one of the two audio inputs on the transmitter (MIC or LINE). Connect the power cable to the POWER socket on the transmitter. Plug the power supply into a household electrical outlet. Pull the power supply unit out of the electrical outlet when the unit will not be used for extended periods of time.
  • Page 9 Where to place the transmitter Choose a suitable place near or on top of your hi-fi system or TV set. Do not place the transmitter close to metal objects such as shelf bars, reinforced concrete walls, etc. The transmitter features a convenient automatic on/off function.
  • Page 10 Using the stethoset receiver When putting the stethoset receiver on, make sure the operating control is pointing downwards and the letters are at the front. The stethoset receiver automatically turns on if you pull the earbows apart. After use, the receiver automatically turns off.
  • Page 11 Adjusting the volume Adjust the receiver’s volume with the operating control. If you are not using the stethoset receiver, store it in the transmitter’s charging compartment so that the battery can be recharged (see section “Charging the battery”).
  • Page 12 Changing the transmission channel To avoid interference caused by the simultaneous operation of several transmitters, select a different channel on each transmitter. Several switchable transmission channels are available (C HANNEL Due to the required approval two channels are selectable: Positions 1 or 3 = channel 1 Position 2 = channel 2 Turning the automatic compression system on Use the COMP switch (compression) at the rear of the transmitter to turn the...
  • Page 13 Adjusting the receiver channel First turn on the transmitter (see section “Where to place the transmitter”). Then put on the stethoset receiver - as soon as the receiver is put on it automatically tunes itself to the first strong signal found (normally the transmitter frequency).
  • Page 14 Charging the battery Place the receiver into the transmitter’s charging compartment, with the operating control at the front. The left LED on the transmitter must light up. Charge the battery for 24 hours before you use it for the first time. The normal charging time is 4-5 hours.
  • Page 15 Additional information The audio transmission technology used with this unit is basically that of a radio. According to today’s scientific knowledge, the radio waves emitted by this unit are not harmful to humans or animals. Varnish or furniture polish may degrade the rubber feet of the transmitter. Place the transmitter on a nonslip pad to avoid potential staining of furniture.
  • Page 16 WARNING: Volume up? - No! When people use headphones, they tend to choose a higher volume than with loudspeakers. However, if your hearing has deteriorated and you need to rely on an assitive listening system, please avoid listening at high volume levels for a long...
  • Page 17 Accessories Only use original Sennheiser spare parts and accessories. ATTENTION: Components from other manufacturers (e.g. for power supply or battery) may cause damage to the unit and will invalidate the warranty. The following accessories are available from your authorized dealer:...
  • Page 18 A battery has a service life of 1-2 years and should be replaced if the operating time decreases. Sennheiser batteries can be recycled. Please dispose of the batteries as special waste or return them to your specialist dealer. To protect the environment, only dispose of totally exhausted batteries which cannot be recharged.
  • Page 19 RR 820 stethoset receiver One transmitter can transmit to several receivers. Additional RR 820 receivers are available from your authorized dealer. RR 820 S clip-on receiver Instead of earbows, this receiver features a socket for connecting a headphone or a connecting cable which allows its use with a hearing aid. MKE 800 TV external microphone If your TV doesn’t have a headphone output, SCART or RCA socket, you can use your Set 820 together with the MKE 800 TV microphone.
  • Page 20 If problems occur... - Are all jack plugs connected correctly? - Are the receiver and sound source turned on and is the volume of the - receiver and sound source sufficient? - Have you pulled the earbows apart? - Is the battery inserted properly into the receiver? - Have you charged the battery for at least 20 minutes? - Are you too far from the transmitter? (if so, move closer) - Choose a different channel.
  • Page 21 Additional information for hearing aid acousticians Adjusting the earbow pressure Loosen the screw at the rear of the stethoset receiver. Move the screw in the long hole to the desired position (continuously adjustable). 1 = Low earbow pressure 2 = High earbow pressure Tighten the screw.
  • Page 22 Adjusting the max. volume: Potentiometer turned fully counterclockwise Potentiometer turned fully clockwise Adjusting the bass response: Potentiometer turned fully counterclockwise Potentiometer turned fully clockwise The adjustments can also be made when the receiver is being used. When replacing the operating control, make sure the "projections"...
  • Page 23 Technical data Modulation Carrier frequencies AF frequency response S/N ratio Transmitter RF output power Audio input Microphone socket Charging time for battery Charging time (spare battery) Power supply Weight Dimensions Receiver Max. sound pressure level Power supply Operating time Weight Dimensions FM, stereo see type plate at the base of the transmitter...

  • Page 24: Manufacturer Declarations

    Before putting the device into operation, please observe the respective country-specific regulations! WEEE Declaration Your Sennheiser product was developed and manufactured with highquality materials and compon- ents which can be recycled and/or reused. This symbol indicates that electrical and electronic equip- ment must be disposed of separately from normal waste at the end of its operational lifetime.
