Summary of Contents for Toolex 532266
-

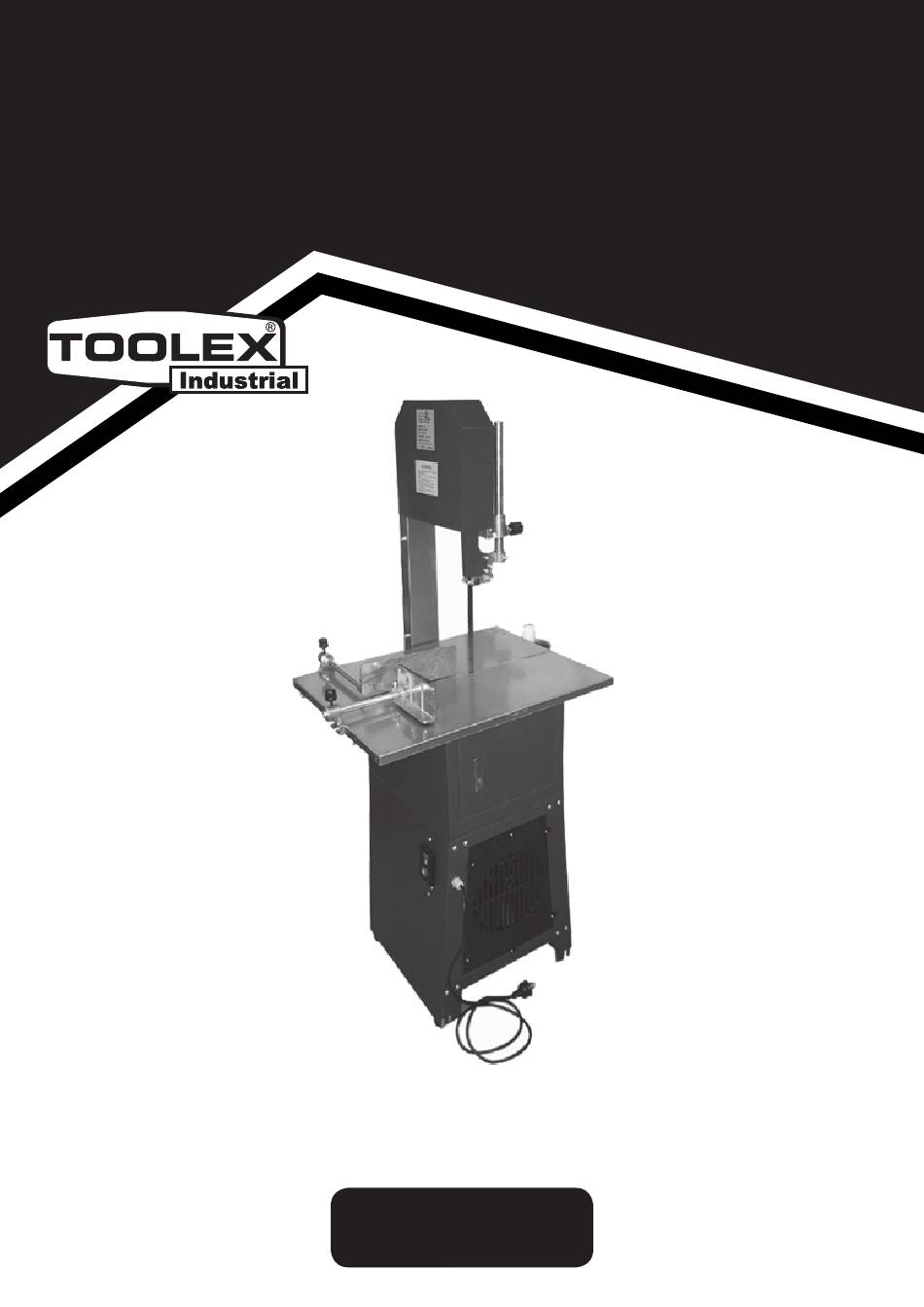

Page 1: Instruction Manual

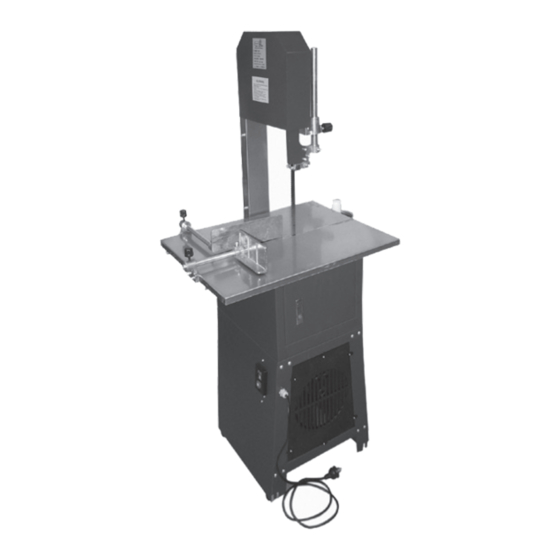

532266 MEAT SAW 10" (254MM) & MINCING ATTACHMENT INSTRUCTION MANUAL CONSUMER SERVICE CENTRE PO BOX 1012 HAMILTON NSW 2303 AUSTRALIA Made in P.R.C. -
Page 2: Warranty Information
LIMITED TOOL WARRANTY Toolex makes every effort to ensure that this product meets high quality and durability standards. Toolex warrants to the original retail consumer a 2-year limited warranty as of the date the product was purchased at retail and that each product is free from defects in materials. - Page 3 GENERAL & SPECIFIC SAFETY RULES GENERAL & SPECIFIC SAFETY RULES 1. KNOW YOUR TOOL watch) because they could get caught in moving parts. Non-slip Read and understand the owners manual and labels affixed to the footwear is recommended. Wear protective hair covering to tool.
- Page 4 GETTING TO KNOW GETTING TO KNOW YOUR MEAT BANDSAW YOUR MEAT BANDSAW Getting to know your 10” Meat Bandsaw 1) Blade guard lock knob 2) Upper blade guard 3) Long adjustable fence 4) Short adjustable fence 5) Sliding table 6) On/Off switch 7) 2 of 3 interchangable knives 8) Sausage filler 9) Meat packer...
-
Page 5: Electrical Information
ELECTRICAL INFORMATION ELECTRICAL INFORMATION WARNING! ALL ELECTRICAL CONNECTIONS MUST BE DONE BY A QUALIFIED ELECTRICIAN. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THE MACHINE DISCONNECTED FROM THE POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! POWER SUPPLY PROPERLY GROUNDED OUTLET WARNING!: YOUR MEAT BANDSAW MUST BE CONNECTED TO A 120V,... -
Page 6: Assembling Stand
ASSEMBLY ASSEMBLY CAUTION: Follow all the assembly & installation instructions completely before connecting the meat bandsaw to a power source. Carefully open and remove all the components and packing materials from the box. The table and guard pieces come with a protective coating. Peel this off before cleaning these pieces. - Page 7 ASSEMBLY ASSEMBLY INSTALLING BANDSAW ON STAND Place the bandsaw base (A) Fig.8 onto the top of the stand (B) and line up the stand and base corner mounting holes. From the inside of the stand, fix the bandsaw base to the stand using hex. bolts. FIGURE 8 INSTALLING V-BELT Before installing the V-belt, it is important to make sure that the motor...
- Page 8 ASSEMBLY ASSEMBLY ADJUSTING SLIDING TABLE Adjusting the sliding table may take some trial and error. It is important that the table slides correctly and that the blade does not make contact with the table. The position of the adjustable table rollers (A) Fig.12 can be adjusted inwards or outwards.
- Page 9 ADJUSTMENTS ADJUSTMENTS ADJUSTING BLADE GUARD The blade guard (A) Fig.15 protects the operator from accidental contact with the blade. The blade guard lock knob (B) sets the height of the blade guard and blade guides (C). Always keep the blade guide assembly 1 inch away from the top of your piece of meat.
-
Page 10: Adjusting Blade Tracking
ADJUSTMENTS ADJUSTMENTS ADJUSTING BLADE TENSION To prevent the blade from falling off the wheel during operation, the blade must be properly tensioned. Disconnect power cord from power source before tensionning blade. To tension blade, remove the upper wheel cover and then turn the tension hex. -
Page 11: Cleaning And Sanitizing
OPERATION, CLEANING AND SANITIZING CLEANING AND SANITIZING TURNING MEAT BANDSAW ON/OFF Once all assembly and adjustments steps have been done, this Meat Bandsaw is now ready to be used. Connect power cord to power source. Make sure the power source matches the specifications indicated on the machine nameplate. Your Meat Bandsaw is equipped with a safety toggle switch (A) Fig.21. -
Page 12: Parts Diagram
PARTS DIAGRAM Page 12... -
Page 13: Parts List
PARTS LIST PARTS LIST MODEL KC-10MB Order# Description Order# Description Blade guide holder 7700100480 7700100010 Pusher 7700100490 Square blade guide Cap screw 7700100020 7700100500 Upper blade guard plate Pusher guide bar 7700100030 Hex. nut 7700100510 7700100040 Rod bracket 7700100520 Elastic washer 7700100050 Lock knob 7700100530... - Page 14 PARTS LIST PARTS LIST MODEL KC-10MB Order# Description Order# Description Hex. nut 7700101040 7700100940 Left plate 7700101050 Spring washer 7700100950 Stand bracket 7700101060 Washer 7700100960 Front plate 7700101070 Sliding wheel support plate 7700100970 Locking tabs 7700101080 Supporting plate 7700100980 Tapping screw 7700101090 Retaining ring/shaft 7700100990...
