Sennheiser HMEC 45 NoiseGard Technical Data

HMEC 45 NoiseGard™
Headsets | Pilot´s Headset with NoiseGard™
Active Noise Compensation
General Description

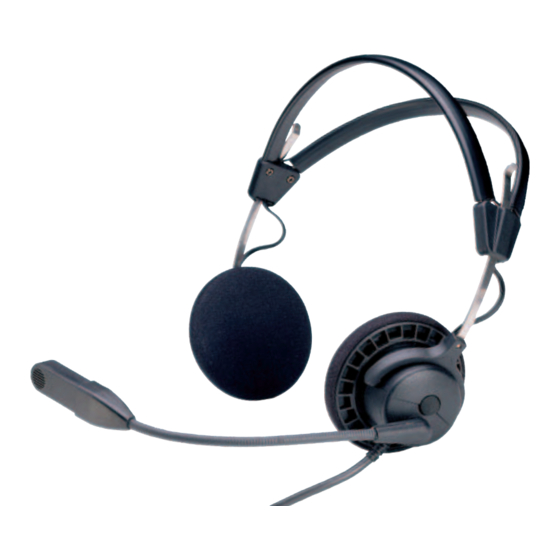

The HMEC 45 is a very lightweight and comfortable open pilot's head-
set (boomset) with NoiseGard™ active noise compensation. Different
connector and powering versions are available to suit every conceivable
cockpit configuration.
Features
Noise reduction of approx. 10 dB – consequently ATC signal can
be decreased
Lightweight, with soft ear pads
Two-piece adjustable headband ensures a secure fit
Boom microphone with noise-compensated electret capsule
Adjustable microphone boom can be turned through 350° and
thus be worn on either side
FAA and JAA TSO approval C 57 a and C 58 a
Delivery includes: 1 HMEC 45 headset, 1 MZW 45 windshield
1 MZQ 2002-1 cable clip
Recommended Accessories
HZH 60 hygiene pads (100 pairs)
HZP 45 comfort hygiene pads
Replacement Parts
Ear pads(1 pair)
MZW 45 windshield
Technical Data
Headphones
Transducer principle..............................................................dynamic
Ear coupling ........................................................... supra-aural, open
Frequency response ................................................. 20 – 18,000 Hz
Impedance active/passive ...............600 Ω/160 Ω (2 x 1,200 Ω/
Nominal SPL.........................................................102 dB/SPL ± 3 dB
(1 kHz, 1 mW)...............................................(as per RTCA/DO 214)
Active noise compensation.........................10 dB ± 3 dB between
NRR (Noise Reduction Rating) ................................................ 11 dB
THD ................................................................................................< 1 %
Contact pressure...........................................................approx. 1.6 N
Weight without cable ............................................................... 140 g
Microphone incl. Preamplifier
Type....................................................................................... MKE 45-1
Transducer principle..................back-electret condenser capsule,
Frequency response ................................................. 300 – 5,000 Hz
Max. SPL ................................................................................... 120 dB
Output voltage........................................400 mV ± 3 dB at 114 dB
Terminating impedance .......................................................... 150 Ω
Operating voltage....................................... 8 – 16 V DC, 8 – 25 mA
General Data
Connection cable............. single-sided round cable, length 1.8 m
NoiseGard™ supply
-CA/-KA...................................................... 2 x 1.5 V AA batteries or
-KAX ................................................ 12 – 35 V DC from the aircraft,
Operating time approx.
-CA/-KA........................................................................ Batteries: 80 h
Switch -CA/-KA ................................... Battery/NoiseGard™ on/off
Cat. No. 003553
Indicator -CA/-KA ...................................... green LED for Power On
Cat. No. 091592
Connector(s)
-CA ............................................................................................... XLR-5
-KA
Cat. No. 046581
Headphones ..................................... 1/4" stereo jack (6.3 mm Ø)
Cat. No. 075823
Microphone ..................................................... PJ-068 (5.25 mm Ø)
-KAX
Headphones ..................................... 1/4" stereo jack (6.3 mm Ø)
Microphone ..................................................... PJ-068 (5.25 mm Ø)
NoiseGard™ supply .................................................................. XLR-3
Cat. No. 004498
Cat. No. 004497 HMEC 45-CA
Cat. No. 004498 HMEC 45-KA
Cat. No. 004649 HMEC 45-KAX
2 x 320 Ω connected in parallel)
400 Hz and 1 kHz
noise-compensated
(as per RTCA/DO 214)
(as per RTCA/DO 214)
2 x 1.2 V AA rechargeable batteries
via XLR-3 connector
Rechargeable batt.: 20 h
(converted to mono)
(converted to mono)
HMEC 45
