Sennheiser HME 46-V-K Technical Data

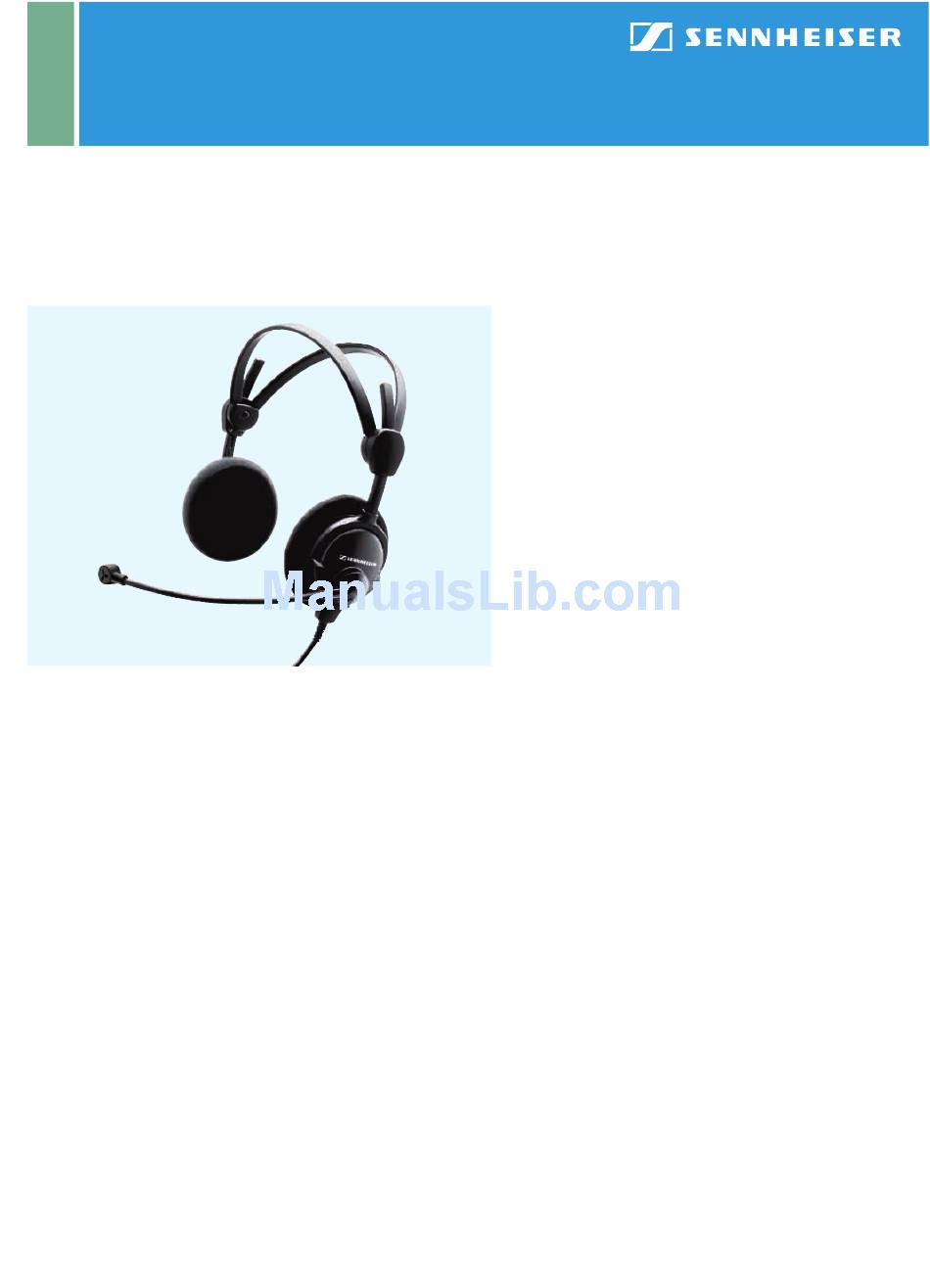

HME 46-V-K
Headsets | Pilot´s Headsets with passive
Noise Cancellation
General Description
The HME 46 is boomset for use in aircraft cockpits.
Features
Extremely lightweight
j
Superb wearing comfort due to patented two-piece automatic
j
headband and soft ear pads
Flip-away headphone allows single-sided listening
j
Flexible microphone boom, can be worn on either left or right-hand side
j
Noise-compensated condensor microphone ensures excellent speech
j
transmission
Single-sided cable, length 1.85 m (6.07 ft), easy to exchange
j
With volume control
j
Volume peaks above 110 dB are eliminated
j
ETSO/TSO approval C57a and C58a
j
Delivery includes: 1 HME 46
j
1 carrying bag for headset
1 cable clip
1 wind and pop screen
user manual
EASA Form 1
Product Variants
HME 46-V-K
j
HME 46-K, as HME 46-V-K, but without volume control
j
HME 46-C, as HME 46-K, but with XLR-5 connector
j
HME 46-N, as HME 46-K,
j
but with 8-pin Neutricon connector
HME 46, boomset without cable
j
Cable -V-K, connection cable with jack plugs
j
and volume control
Cable -K, connection cable with jack plugs
j
Cable -C, connection cable with XLR-5 connector
j
Cable -N,
j
connection cable with 8-pin Neutricon connector
Technical Data Headphone
Frequency response ................................................ 20 – 14,000 Hz
Transducer principle .................................................dynamic, open
Nominal impedance .................................. 600 O (active/passive)
Characteristic SPL ......................................... 94 dB SPL (according
THD ..................................... < 1 % at 110 dB SPL (300 – 3,000 Hz)
Ear coupling ......................................................................supra-aural
Contact pressure .............................................................approx. 3 N
Weight (without cable) .......................................... 150 g (5.29 oz)
Connection cable ....................................single-sided round cable,
Connector............................................................ 6.3 mm (1/4") jack
Temperature range
operation ................................................................- 10 °C to + 55 °C
storage ....................................................................- 55 °C to + 70 °C
Microphone type MKE 46
Transducer principle .............. condenser microphone (electret),
Frequency response ................................................ 350 – 6,000 Hz
Output voltage ....................... typ. 400 mV ± 3 dB at 114 dB SPL
Operating voltage ........... typ. 16 V DC (8 – 16 vDC, 10 – 26 mA)
Connector...................................................................................PJ-068
Cat. No. 500465
Cat. No. 500470
Cat. No. 500464
Cat. No. 500463
Cat. No. 500850
Cat. No. 500847
Cat. No. 500841
Cat. No. 500840
Cat. No. 500834
to RTCA/DO-214)
1.85 m (6.07 ft)
noise-compensated
(according RTCA/DO-214)
