Canon Super G3 Fax Board-J1 Service Manual page 38
Revision 0
Table of Contents
CHAPTER 4 INSTALLATION
11) Mount back the support cover.

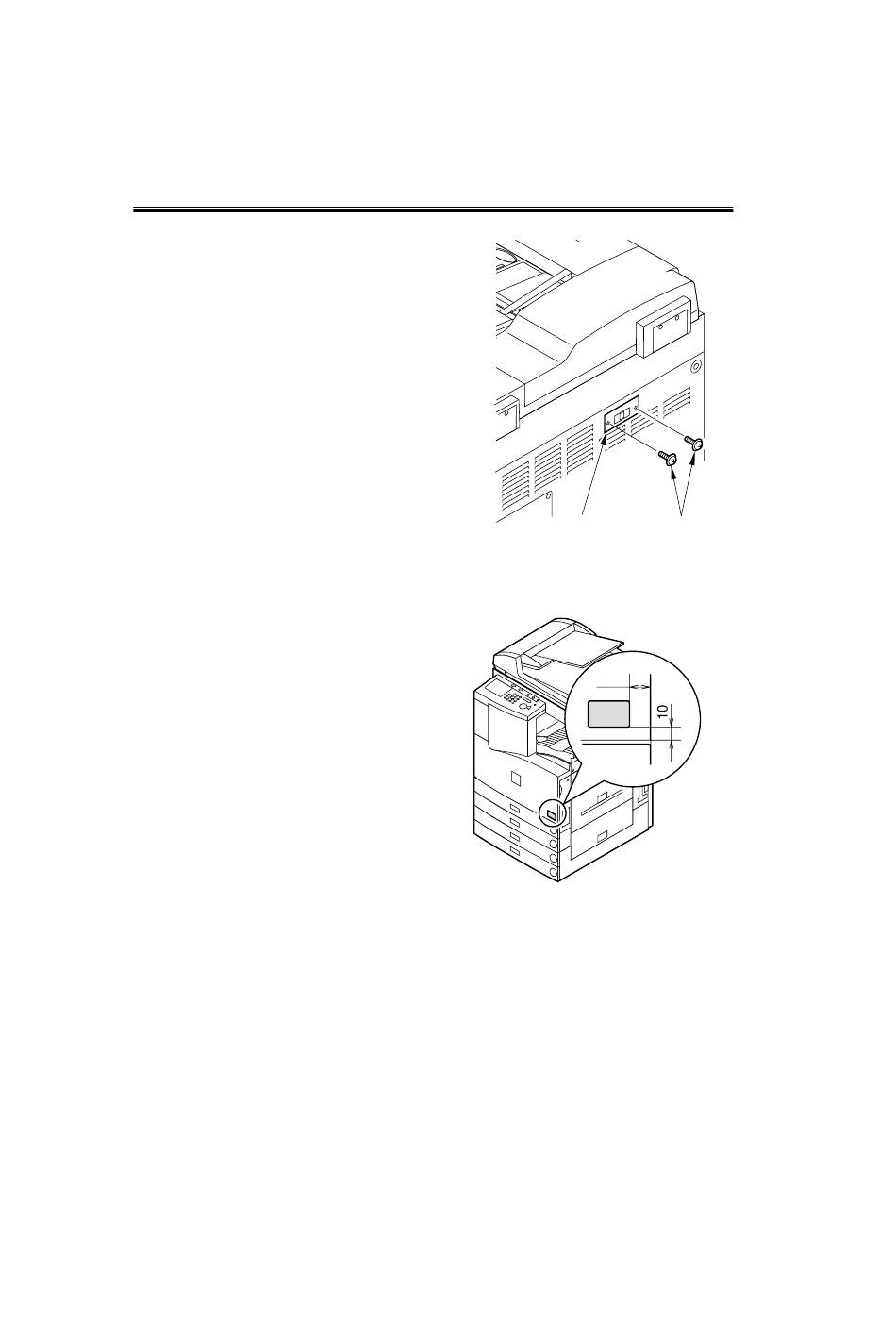

12) Before mounting the rear cover, remove
the face cover, and mount the modular
cover [2] using the two screws [1] re-
moved to detach the cover.
13) Mount back all covers.
14) Attach the Super G3 label where indi-
cated.
4-6
COPYRIGHT © 2001 CANON INC.
F04-103-11
F04-103-12
2000 2000 2000 2000
CANON SUPER G3 FAX BOARD-J1 REV.0 JUNE 2001
[2]
[1]
15.8
Unit : mm
