1 G3 Fax Control PCB

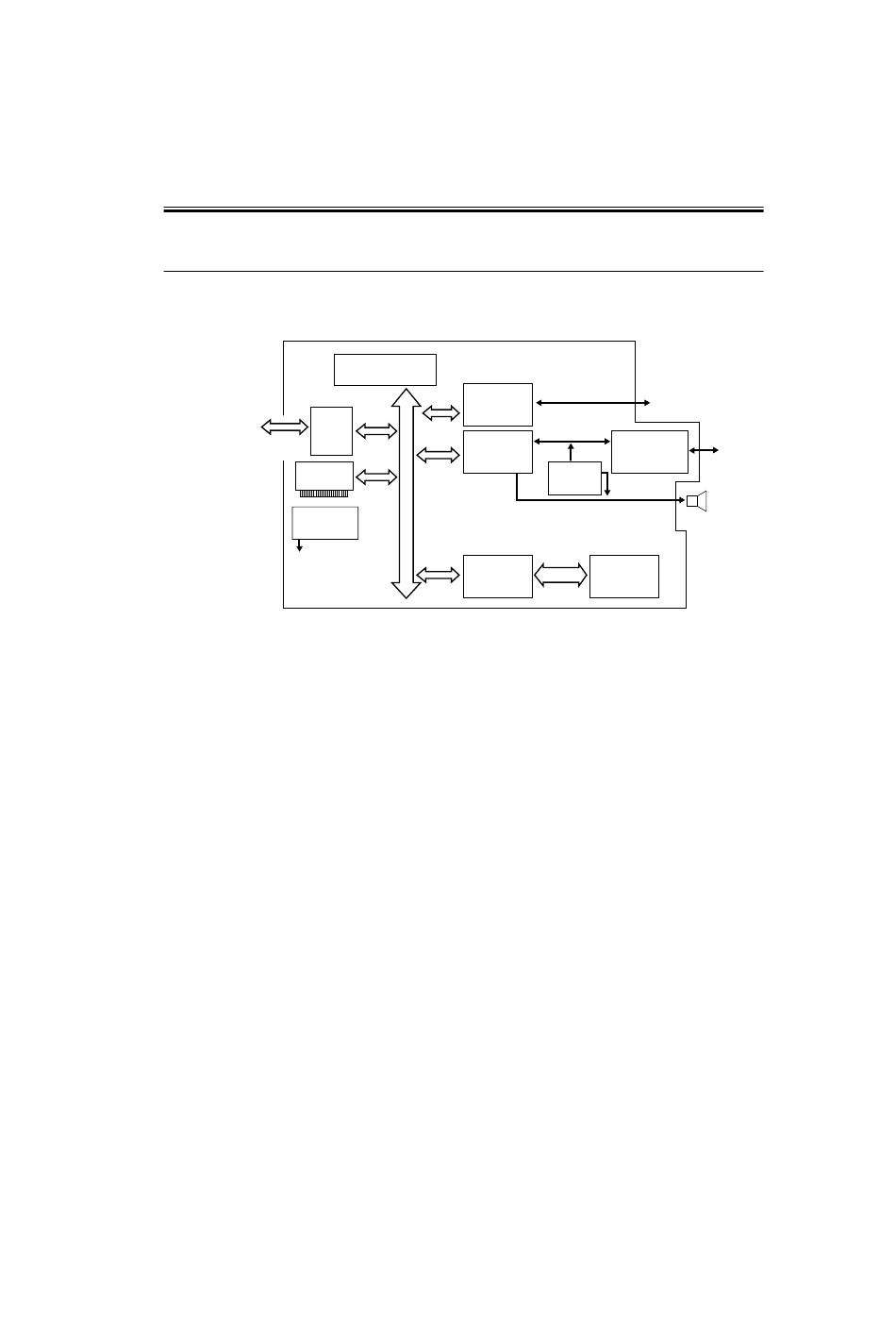

1.1 G3 Fax Control PCB Block Diagram

ASIC
Main Controller
Chip-D
PCB
IEEE
(IC43)
1284
FLASH
ROM-DIMM
Reset IC
(IC3)
MPU
CHIP-C
CHIP-D
PORT IC

1.2 Components of the G3 Fax Control PCB

MPU (IC34)
µPD703107GJ-025-UEN (V850E-MA1) from NEC is an MPU used to control the com-
munications exchanged on the line.
It is equipped with a 256K-byte internal ROM and a 10K-byte internal RAM, and is
driven by 3.3 V.
ASIC (IC46)
MB87J1762PFVS from Fujitsu is an ASIC (chip-D) used for JBIG coding/decoding and
SDRAM control. A 64M-bit SDRAM is connected to it.
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000
CHAPTER 2 BASIC OPERATION
G3 Fax control PCB
MPU
(IC34)
ASIC
PORT IC
(IC16)
MODEM IC
FM336
16
(IC11)
b
i
t
ASIC
Chip-C
(IC46)
F02-101-01
CANON SUPER G3FAX BOARD-J1 REV.0 JUNE 2001
NCU
(CONTROL)
Analog level
adjustment
circuit
OGMIC
(IC44)
Speaker
SDRAM
32bit
64Mbit
(IC6)
NCU
(LINE)
