Summary of Contents for WiDMX LC-512 Series

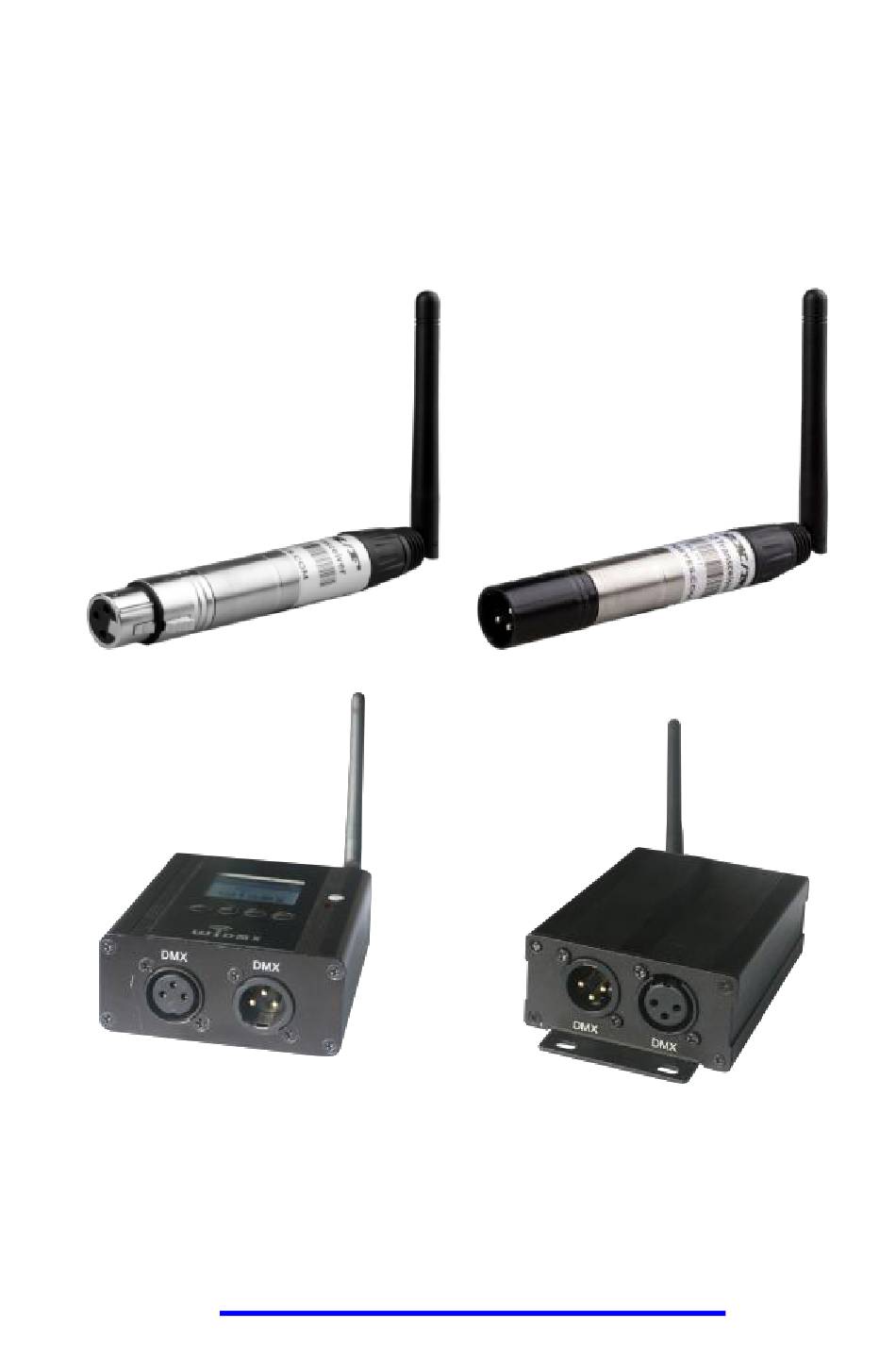

- Page 1 Wireless DMX Transceiver LC-512 Series User Manual Version 2.0 www.widmx.com...

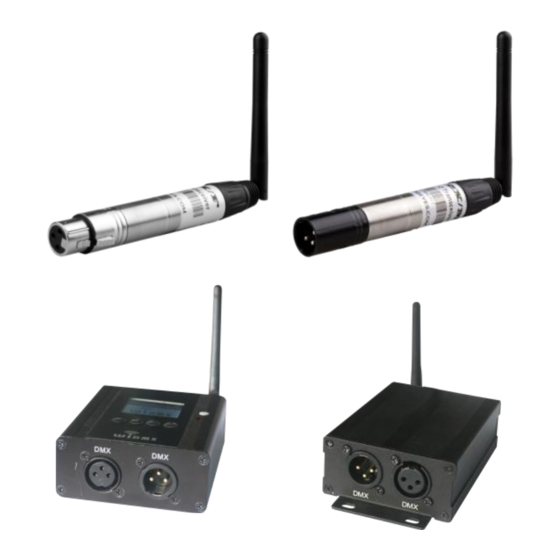

- Page 2 Thank you for choosing WIDMX LC-512 Series Wireless DMX Transceiver. WIDMX LC-512 Series is unique in its use of advance radio technologies that are also used in military communication and mobile phones. Its user-friendly operation that simplifies all the complex communication protocols makes it possible for the users to plug and play.
-
Page 3: Table Of Contents
Content SAFETY INFORMATION ..........2 STATEMENT ..............3 1 INTRODUCTION ............4 1.1 F ..............4 EATURES 1.2 S .............5 PECIFICATIONS 1.3 P ............5 ACKING 1.4 I .............6 NTERFACE 2 OPERATING GUIDE ..........7 2.1 O ..........7 PERATING MODE 2.2 D .....9 ESCRIPTION OF TATUS NDICATOR 2.3 S ........ -
Page 4: Safety Information
Safety Information Please keep the product far away from the heat. It should be away from the heater, radiator or any other heat source. Heat will damage and break the product, even worse it may start a fire. Please shutdown the product where there are slogans like “Explosion Zone”, “May Burst Area”... -
Page 5: Statement
Statement We will keep improving and developing our products. We reserve the right to modify and to improve the described item in this document without notice in advance. Unless otherwise provided by applicable laws, we do not make any type or implied warranties to the accuracy, reliability and content of it, including but not limited to the warranties of merchantability and the purposes of specific application. -
Page 6: Introduction
LC-512 Series User Manual 1 Introduction 1.1 Features WIDMX LC-512 Series is unique in its use of advance radio technologies that are also used in military communication and mobile phones. Its user-friendly operation that simplifies all the complex communication protocols makes it possible for the users to plug and play. -
Page 7: Specifications
LC-512 Series User Manual 1.2 Specifications Band: 2.402GHz – 2.480GHz, ISM, 79 channels Spread spectrum: FHSS, 1100 hops / sec Modulation: GFSK Maximum Transmit Power: 23dBm Receiver Sensitivity: -94dBm Power: DC 5V ± 10% ... -
Page 8: Interface
LC-512 Series User Manual 1.4 Interface 1, DMX512 3-pin or 5-pin male or female XLR 2, External power supply input 3, Status indicator 4, Button 5, Antenna... -
Page 9: Operating Guide
LC-512 Series User Manual 2 Operating Guide 2.1 Operating mode Wireless transceiver has two operating modes: set-up mode and use mode 1, Set-up mode: Press and hold the button before you power up. When you see status indicator turns into the white light, release the button to enter the Set-up mode. - Page 10 LC-512 Series User Manual Note: The wireless transceiver will remember the chosen protocol even after you disconnecting the power supply. There is no need for repeated setting. Color Protocol WIDMX Green W-DMX Receive Blue W-DMX G3 Transmit Yellow GZ Protocol...
-
Page 11: Description Of Status Indicator
LC-512 Series User Manual 2.2 Description of Status Indicator Protocol Action Status Description Red, Green, Blue, 6 / 7 Different Wireless WIDMX Yellow, Cyan, Groups Purple (, White) Flashing Transmitting DMX Protocol Green Flashing Receiving DMX Signal Connection is not... - Page 12 LC-512 Series User Manual Red(Fast-Flash) Connection is Lost Connecting to Green(Fast-Flash) Transmitter Connected, Without Green(Slow-Flash) DMX Signal Connected, Receiving Green DMX Signal Deleting all Receivers’ Connection Connecting with the W-DMX Blue(Fast-Flash) Receiver(s) Transmit Blue(Slow-Flash) No DMX Signal Input Blue...
-
Page 13: Select Wireless Group
LC-512 Series User Manual Note: 1. Flashing: > 20ms ON + <180ms OFF (Depending on the refresh rate of the DMX signal) 2. Fast-Flash: 100ms ON + 100ms OFF 3. Slow-Flash: 900ms ON + 100ms OFF 2.3 Select Wireless Group Each time you press the button, the status indicator will change different colors. - Page 14 LC-512 Series User Manual WIDMX mode supports 6 groups (FHSS, 1100 hops / sec) 1: RED ---------------------------- 2: GREEN ------------------------ Green 3: BLUE --------------------------- Blue 4: RED + GREED --------------- Yellow 5: GREEN + BLUE -------------- Cyan 6: RED + BLUE ------------------...
-
Page 15: Restore Factory Settings
LC-512 Series User Manual 2.4 Restore factory settings By pressing and holding the button (> 1S), When see the BLUE flashing, Then release the button, the devices would flash "RED-GREEN-BLUE" quickly, and then turns red. It indicates that the device has restored to factory settings successfully. - Page 16 LC-512 Series User Manual In the W-DMX Receive Mode, Press and hold (> 3S) the receiver’s button until the indicator turns white. The device would disconnect with the transmitter. Note: Receiver could only be connected to the new transmitter after the old connection is deleted.
-
Page 17: Applications
LC-512 Series User Manual 3 Applications 3.1 One transmitter to one receiver Controller inputs DMX signal onto a wireless transmitter, and the latter would send DMX signal via Radio to the receiver with the same group or to the receiver connected. -
Page 18: One Transmitter To Many Receivers
LC-512 Series User Manual 3.2 One transmitter to many receivers Controller inputs DMX signal onto a wireless transmitter, and the latter would send DMX signal via Radio to the receivers with the same group or the other receiver connected. -
Page 19: Parallel Transmission
LC-512 Series User Manual 3.3 Parallel Transmission Many sets radio transmitters operated simultaneously, without mutual interference. 3.4 Repeater or Amplifier If directly connect a receiver to a transmitter (both the receiver and transmitter work in different groups or in different sets), it would become a repeater or amplifier. -
Page 20: Maintenance
LC-512 Series User Manual 4 Maintenance Please storage and use the device within required temperature. Device may damage if the temperature is too high or too low. The device is not water-proof. Please keep the item and its accessories dry. Please do not use it in bathroom or other place with high humidity. - Page 21 LC-512 Series User Manual Federal Communications Commission (FCC) Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
