SERVICE MANUAL

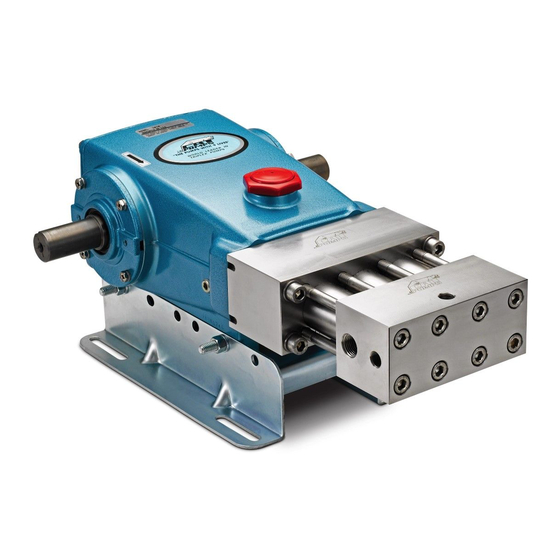

1810 PLUNGER PUMP SERIES
FLOW
PUMP MODEL
GPM (L/M)
1810
3.0 (11.4)
1810K
3.0 (11.4)
IMPORTANT SAFETY INSTRUCTIONS
It is the responsibility of the user to read and understand all instructions, important safeguards, and safety precautions before
operating or servicing any pump. Failure to do so may result in property damage, personal injury or death.
General Safety Information and Symbols
Pay special attention to the following signal words, safety alert symbols and statements:
DANGER
indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION
indicates a hazardous situation which, if not avoided, could result in minor or moderate injury or property damage.
NOTICE
indicates a hazardous situation which, if not avoided, could result in property damage.
Indicates a potential personal injury hazard. Obey all safety messages that follow this symbol to avoid possible injury or death.
SERVICING THE 1810 PLUNGER PUMP SERIES
WARNING
Do not service pump or electrical equipment while energized.
Electricity can cause personal injury, death or property damage.
1.
Adhere to "Lock Out" and "Tag Out" procedures for electrical equipment.
2.
Before commencing pump service, turn power supply off.
3.
Keep water away from electrical outlets and electrical devices.
4.
Electrical components must be installed by a qualified
electrician to avoid risk of electrocution.
PRESSURE
PUMP
MOTOR
PSI (BAR)
RPM
10,000 (690)
1500
10,000 (690)
1500
TEMPERATURE
RPM
Far. (Cent)
—
160º (71º)
—
160º (71º)
SHAFT DIA.
OIL CAP.
INCH (MM)
Oz. (l)
1.181 (30)
42 (1.26)
1.181 (30)
42 (1.26)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for CAT Pumps 1810 Series
Summary of Contents for CAT Pumps 1810 Series
- Page 1 SERVICE MANUAL 1810 PLUNGER PUMP SERIES FLOW PRESSURE PUMP MOTOR TEMPERATURE SHAFT DIA. OIL CAP. PUMP MODEL GPM (L/M) PSI (BAR) Far. (Cent) INCH (MM) Oz. (l) 1810 3.0 (11.4) 10,000 (690) 1500 — 160º (71º) 1.181 (30) 42 (1.26) 1810K 3.0 (11.4) 10,000 (690)
-
Page 2: Servicing The Valves
SERVICING THE VALVES Disassembly NOTE: Pump requires one (1) valve kit to repair pump. Valve kit includes discharge and inlet components. Use a M8 allen to remove two (2) M10 socket head screws (HSH) from opposite outside corners of inlet/discharge manifold (IMDM). As an aid in supporting the manifold, replace these two (2) screws with two (2) M10 x 180 threaded studs (PN 701268). - Page 3 SERVICING THE SEALS Disassembly NOTE: To service the seals it is necessary to remove the IMDM, discharge valves, inlet valves and cylinders. Follow steps 1 to 6 under SERVICING THE VALVES, Disassembly. Remove the inlet valves, springs, and spring retainers from each cylinder. Using a socket that fits inside the cylinder, drive the v-packing assembly out of each cylinder.
- Page 4 SERVICING THE PLUNGERS Disassembly Servicing the plungers can be done by removing the IMDM and housing block (complete head) together as one assembly. NOTE: If valves and/or seals are also being serviced at this time, follow the procedures for SERVICING THE VALVES and SERVICING THE SEALS for disassembly process.
- Page 5 Seal Change Valve Change Accessories * If other than Cat Pumps special custom blend, ISO 68 hydraulic oil is used, change cycle should be every 300 hours. ** Each system’s maintenance cycle will be exclusive. If system performance decreases, check immediately. If no wear at 1000 hours, check again at 1500 hours and each 500 hours until wear is observed.
- Page 6 C. HOT SURFACE HAZARD Do not touch pump, accessories or drive system while operating and until cool down is complete. Touching hot surface areas of the pump, accessories or drive system can cause severe burns or personal injury. D. SKIN PUNCTURE HAZARD Do not allow spray to contact any part of the body or animals.
- Page 7 1. Cat Pumps custom-blend oil is available worldwide in 21 oz. bottles,cases, or 5-gallon twin packs. Use of other oils may void the warranty. 2. Fill pump crankcase to specific capacity indicated on data sheet or service manual prior to startup.
-
Page 8: Diagnosis And Maintenance
Cat Pumps are very easy pumps to service and require far less frequent service than most pumps. Typically, only common tools are required, making in-field service convenient, however, there are a few custom tools, special to certain models, that do simplify the process. This service manual is designed to assist you with the disassembly and reassembly of your pump.
