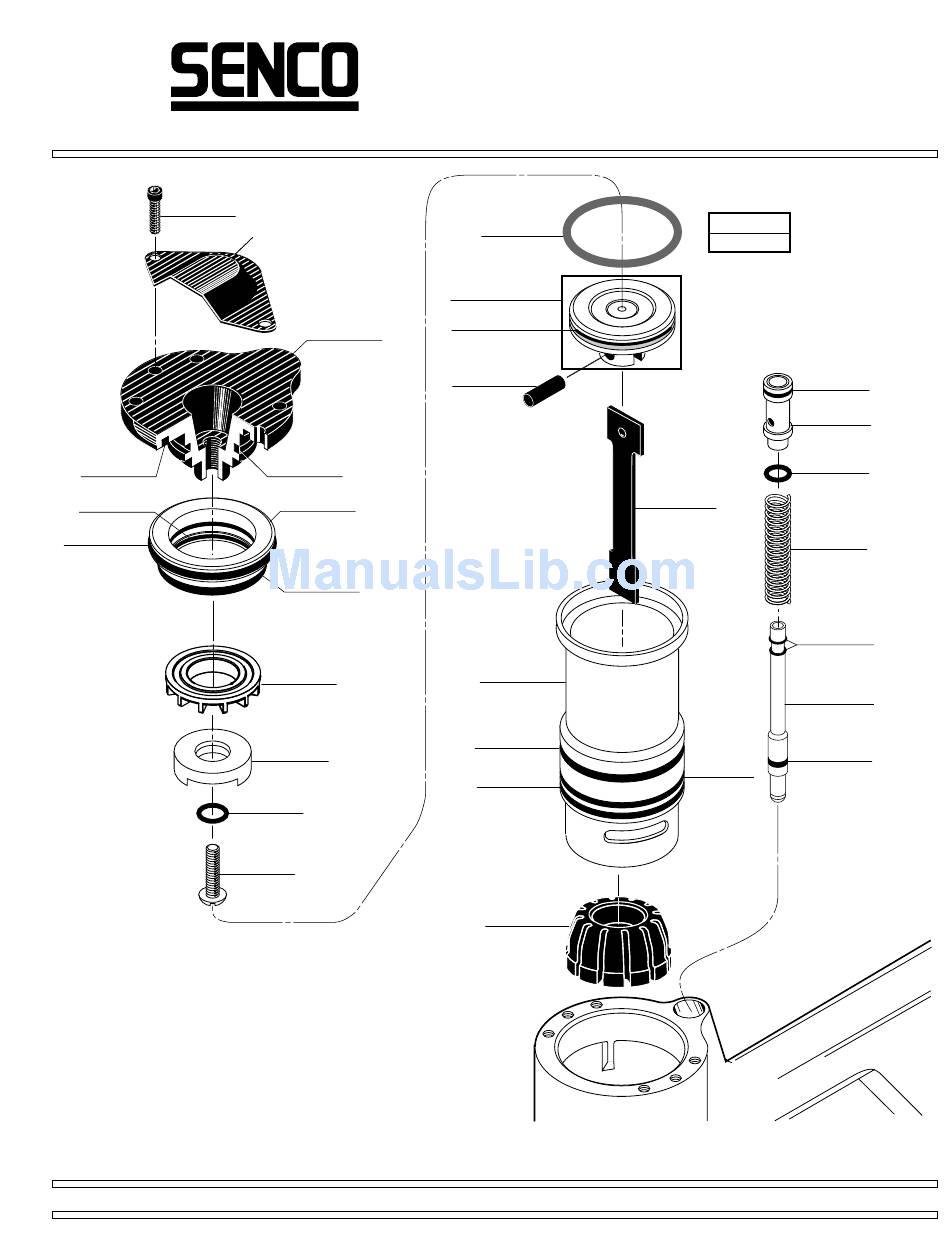

REPLACEMENT PARTS CHART
M1 STAPLER
LB3224
EA0081
LB0035
KA0003
BA0087
LB0083
LB0083
BB0147
© 1983, 1995 by SENCO PRODUCTS, INC.
Model
090001N
*Does not include O-rings
*No Incluye sellos de gomas
*Exklusiv Dichtringe
*Joints exclus
LB0017
CA0010
LB0017
EC0169
KB5052
LB0011
CA0014
LB0014
LB0133
Cincinnati, Ohio 45244–U.S.A.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Senco M1
Summary of Contents for Senco M1
- Page 1 BB0153 BB0010 LB0015 KB2797 In the U.S.A., you will find your nearest Senco location listed in the Yellow Pages under “Staples” Or, you can call our toll-free Action-line: 1-800-543-4596 NFD009 Revised October 16, 1995 (Replaces 1/16/95) ® REPLACEMENT PARTS CHART...
- Page 2 HG0009 AB0003 Restrictive AA0044 HB0010 AB0029 HB0006 KB5005 KB5004 KB1550 FA0014 KB1551 HB0002 HB0004 HB0002 KB3120 HB0003 KB1550 KB0145 HB0043 Dual Action FB0001 KB5010 KB2714 FB0002 KB1596 FA0017 KB4216 HB0240 NFD009-PG 2 M1 STAPLER REVISED 10/16/95 REPLACES REV. OF 1/16/95...
- Page 3 GB0005 GB0002 KB2700 KB5306 KB1636 GB0331 KB5007 KB2922 GC0287 GA0014 GC0294 GG0155 GB0215 GC0605...
- Page 4 DRIVER (1⁄8" CSK.) EC0169 DRIVER (3⁄16" CSK.) FA0012 GUIDE BODY ASSY. FA0014 BACKPLATE FA0017 GATE ASSY. FA0114 GUIDE BODY ASSY. M1 Stapler Replacement Parts List PART# DESCRIPTION FB0001 RIGHT LATCH PIN FB0002 LEFT LATCH PIN FB0035 BRACER SPRING GA0014 FEEDER SHOE GA0020 FEEDER SPRING ASSY.
- Page 5 Parts Kits • Estuches de Partes • Reparatursätze • Kits maintenance Escape de Air (Arriba) Síntoma Herramienta no mueve Operación Floja Fuite à l‘échappement Symptôme Ne fonctionne plus Appareil lent Undichtigkeit oben am Gerät Symptome Gerät reagiert nicht Air Leak (Top) Symptom Tool does nothing Sluggish...
- Page 6 Available Plugs (Not Included with Tool) PC0480 1⁄4" Body Ind. Interchange 3⁄8" MPT PC0485 3⁄8" Body Ind. Interchange 3⁄8" MPT PC0469 1⁄4" Body Tru-Flate 3⁄8" MPT PC0475 3⁄8" Body Tru-Flate 3⁄8" MPT Recommended Plugs Plugs shown smaller than actual size...
