11.
Fit the LSZDC Interface Cards to the rear panel surveillance interface card slots as required by your
system design.

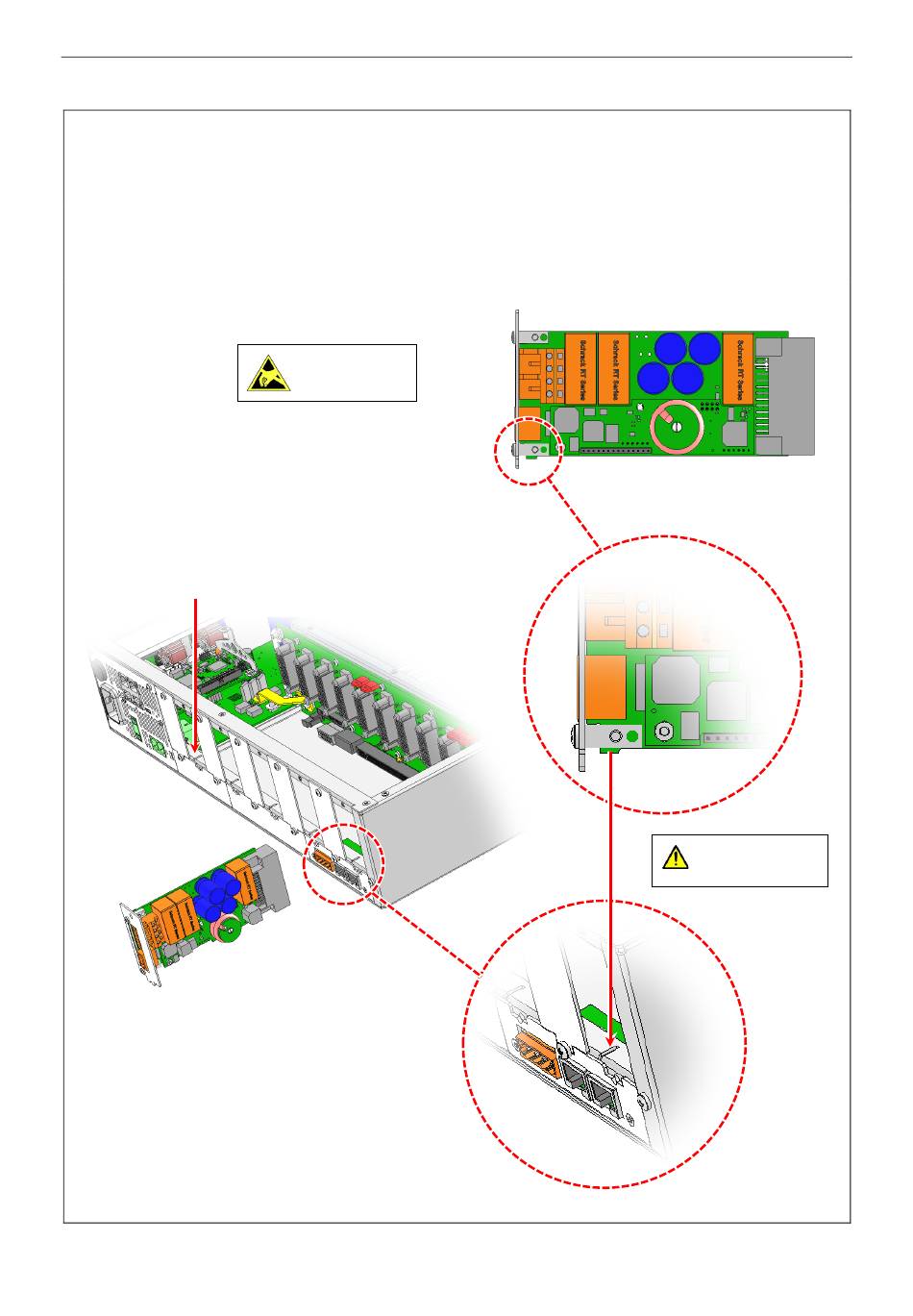

The illustrations below show a LSZDC Interface Card being fitted into slot 1.
a.
Insert the LSZDC Interface Card so that its rear connector mates the matching connector on
the backplane by seating the tab at the bottom of the interface card in the appropriate notch
on the midline rear support.
MIDLINE REAR SUPPORT
LSZDC
V2000 – Installation Guide
Observe precautions for
handling electrostatic
sensitive devices.
U-0623-0291.docx – Issue: 04 complete, approved
Page 17 of 40
LSZDC (top view).
Seat the interface card tab
in the appropriate notch on
the midline rear support.
