FramePro 701E-XP/ 751E-XP
Questions? Comments? call SENCO's toll-free Action-line:
1-800-543-4596 or e-mail: toolprof@senco.com
Symptom
Air Leak (Top)
Tool does nothing
Sluggish
Air Leak (Bottom)
Poor Return
Weak Drive
Broken Driver
Poor Feed
Tool Jamming
®
Senco Products, Inc.
8485 Broadwell Road
Cincinnati, Ohio 45244
Visit our Website www.senco.com
Síntoma
Symptome
Escape de Air (Arriba)
Undichtigkeit oben am Gerät
Herramienta no mueve
Gerät reagiert nicht
Operación Floja
Undichtighkeit unten
Escape de Air (Abajo)
am Gerät keine oder nur
Retorno Flojo
unzureichende Rückführung
Penetrado Flojo
Gerät treibt nicht ein
Lanzeta Quebrada
Gebrochener Treiber
Alimentador podre
Befestiger werden
Entrancado de la
nicht nachgeschoben
Herramienta
Gerät ist verklemmt

Parts Kits

D
YK0246
YK0305 / 701E-XP
C
YK0306 / 751E-XP
YK0244
B
A
YK0288
* Schematic Drawings inside
Covered by U.S. Patent Nos. 4,679,719 & 5,732,870
Symptôme
Fuite à l'échappement
Ne fonctionne plus
Appareil lent
Fuite à la base du
moteur Remontée
du conteau lente
Peu de puissance
Mauvaise percussion
Enraiements
Mauvaise avance des
projectiles

Advertisement

loading
Need help?

Need help?

Do you have a question about the FramePro 701E-XP / and is the answer not in the manual?

Questions and answers

Summary of Contents for Senco FramePro 701E-XP /

  • Page 1: Parts Kits

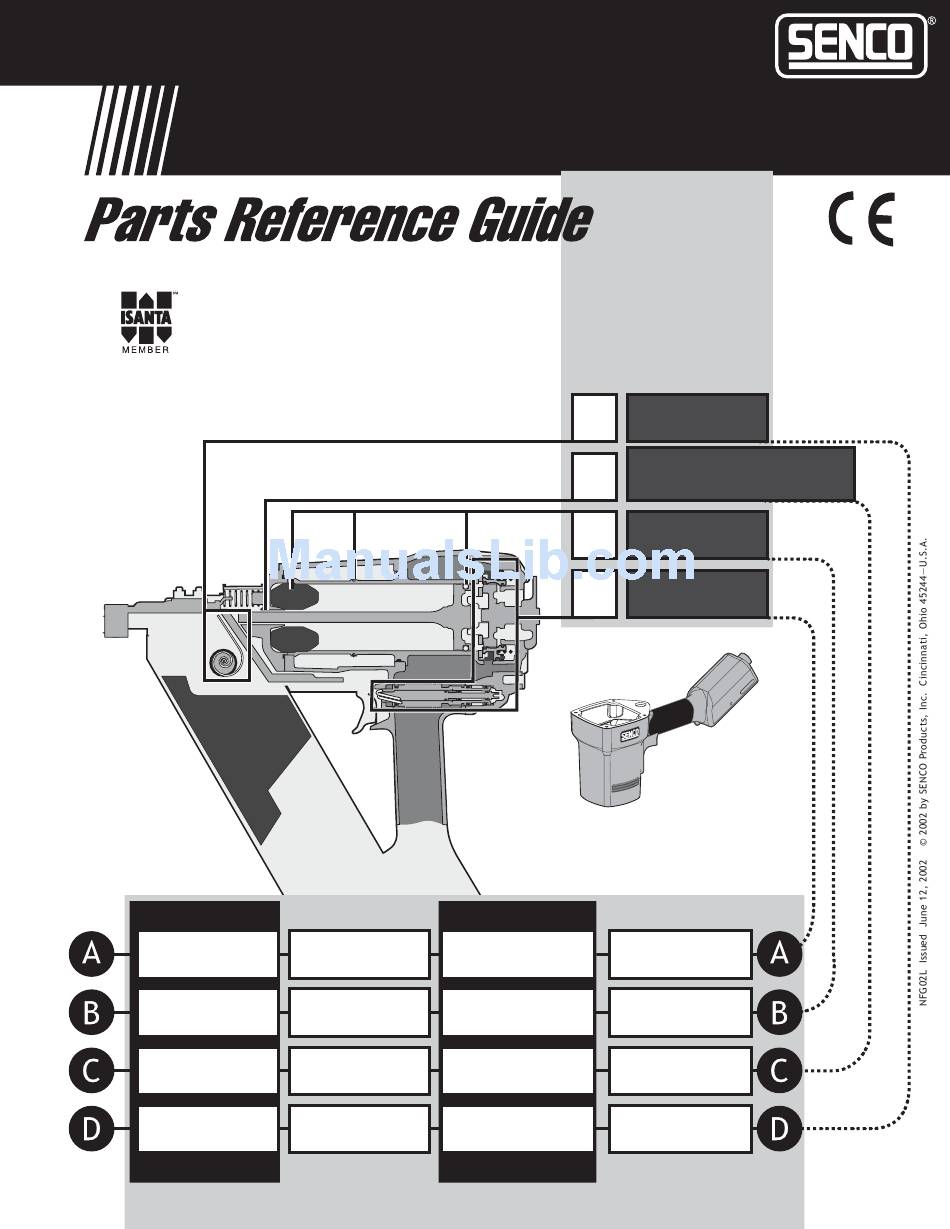

    FramePro 701E-XP/ 751E-XP Cincinnati, Ohio 45244 Visit our Website www.senco.com Questions? Comments? call SENCO’s toll-free Action-line: 1-800-543-4596 or e-mail: toolprof@senco.com Symptom Síntoma Air Leak (Top) Escape de Air (Arriba) Tool does nothing Herramienta no mueve Sluggish Operación Floja Air Leak (Bottom)
