OPERATOR MANUAL

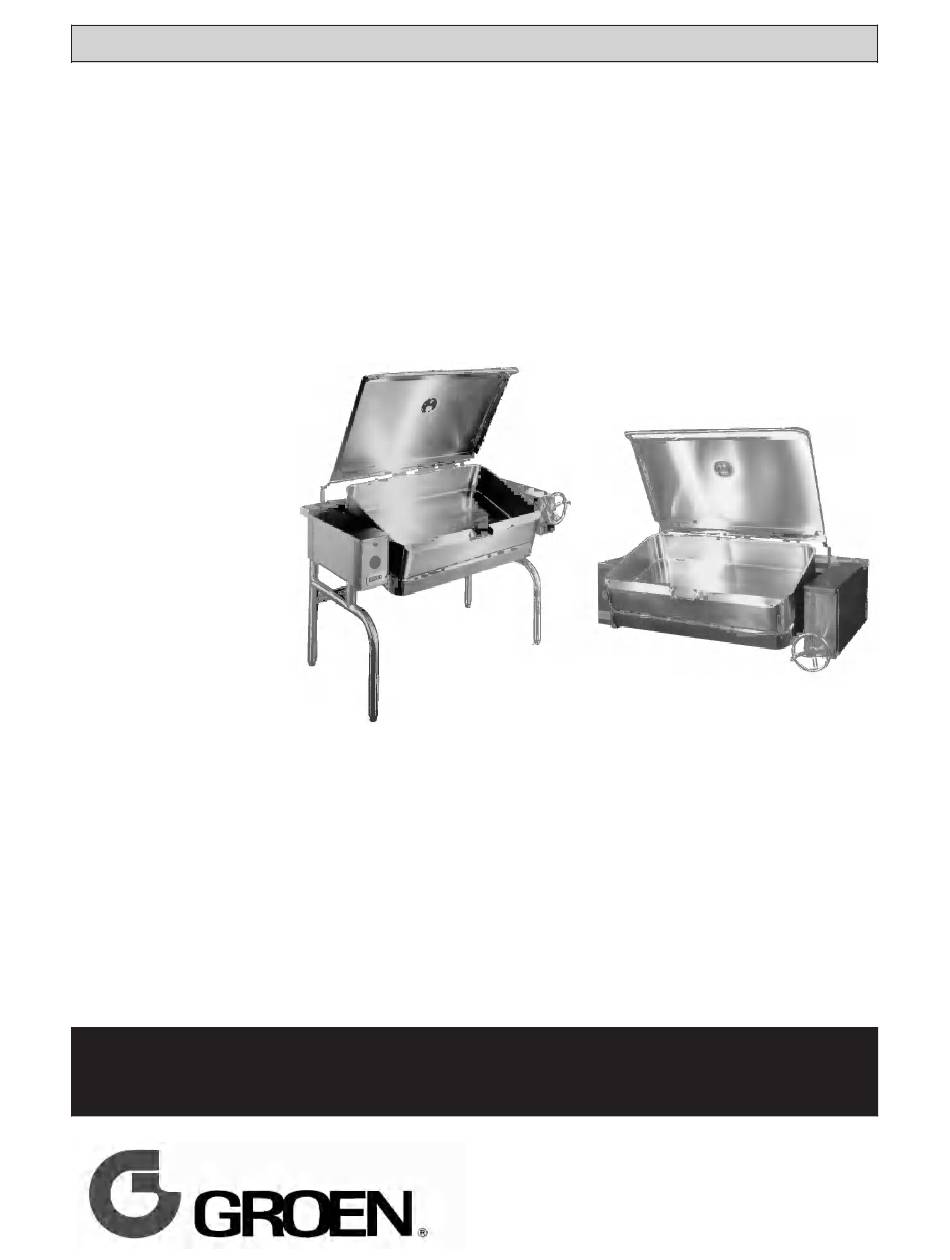

MODELS:
FPC, MW/FPC,
FPC/1, MW/FPC/1
Brais ing Pan s
Stainl ess Steel
Manual Til tin g
Electr ical ly Heate d
THIS MANUAL MUST BE R ETAINED FOR FUTURE REFERENCE. READ,
UNDERSTAND AN D FOLL OW THE INSTRUCTIONS AND WARNINGS
CONTAINED IN THIS MANUAL.
DO NOT STORE OR USE GASOLINE OR OTHER FLA MMABL E VAPORS AND
LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLI ANCE.
?
KEEP FOR OPERATOR
Mo del FPC /1-4
WARNING
.
Information contained in this document is known to be current
and accurate at the time of printing/creation. Unified Brands
recommends
unifiedbrands.net, for the most updated product information and
specifications.
?
IMPOR TANT I NFORMAT ION
Part Nu mb er 121 024 R ev B
Mo del M W /FPC-4
referencing
our
product
OM-FPC
DOMESTIC
line
websites,
Advertisement
Table of Contents
Related Manuals for Groen MW/FPC series
Summary of Contents for Groen MW/FPC series
- Page 1 IMPORTANT INFORMATION KEEP FOR OPERATOR IMPOR TANT I NFORMAT ION OPERATOR MANUAL OM-FPC DOMESTIC Part Nu mb er 121 024 R ev B MODELS: FPC, MW/FPC, FPC/1, MW/FPC/1 Brais ing Pan s Stainl ess Steel Manual Til tin g Electr ical ly Heate d Mo del M W /FPC-4 Mo del FPC /1-4 THIS MANUAL MUST BE R ETAINED FOR FUTURE REFERENCE.
-
Page 2: Important Operator Warnings
FORWARD SUDDENLY DURING TILTING AND CAUSE HOT LIQUID TO SPLASH OUT. WARNING: USE OF ANY REPLACEMENT PARTS OTHER THAN THOSE SUPPLIED BY GROEN OR ITS AUTHORIZED DISTRIBUTORS VOIDSALL WARRANTIES AND MAY CAUSE BODILY INJURY OR EQUIPMENT DAMAGE. SERVICE PERFORMED BY OTHER THAN FACTORY AUTHORIZED PERSONNEL WILL VOID ALL WARRANTIES. -
Page 3: Table Of Contents
OM-FPC Table of Contents IMPORTANT OPERATOR WARNINGS ..........2 EQUIPMENT DESCRIPTION . -
Page 4: Equipment Description
OM-FPC Equipment Description The Groen FPC is a stainless steel, electrically This handwheel controlled mechanism is located heated Braising Pan which is equipped with in a stainless steel console to right of the pan integrated heating elements, a hand operated body. -
Page 5: Installation
OM-FPC Installation B. For Model FPC or FPC/1: WARNING THE BRAISING PAN MUST BE INSTALLED Set the unit in place and level it by BY PERSONNEL WH O ARE QUALIFIED TO turning the adjustable feet. Crank the WO RK WITH ELECTRICITY. IMPROPER pan body to a completely horizontal I N S T A L LA T I O N... - Page 6 OM-FPC bottom of the pan body is level Make waterproof connection with the before you proceed to the next step. incoming electrical line. A BX To prevent sanitation problems, seal connection is NOT recom mended. the junction between the pan and ELECTRICALLY GROUND THE UNIT wall with an appropriate NSF- at the proper term inal.
-
Page 7: Initial Start-Up
OM-FPC Initial Start-Up Now that the Braising Pan has been installed, Set the thermostat to 235 F. The you should test it to ensure that it is operating heating indicator light should come on to correctly. show that the pan is heating. Heating should continue until the water boils. -
Page 8: Sequence Of Operation
OM-FPC in the open position until you put it WARNING down. IF THE PAN CONTAINS ITEMS IN SAUCE OR MELTED FAT, THEY COULD SLIDE To pour or dump product, remove FORWARD SUDDENLY DURING TILTING grease, or assist cleaning, first raise the AND CAUSE THE HOT LIQUID TO SPLASH cover, then tilt the pan up and forward OUT. -
Page 9: Cleaning
OM-FPC Cleaning Suggested Tools Cleaner, such as Klenzade HC-10 Brushes in good condition Cloth for cleaning controls CAUTION Chlorine sanitizer such as Klenzade MOST CLEANERS ARE HARMFUL TO THE XY-12 SKIN, EYES, MUCOUS MEMBRANES, AND CLOTHING. PRECAUTIONS SHOULD BE Heavy Duty Cleaner, such as TAKEN. -
Page 10: Maintenance
Maintenance WARNING USE OF REPLACEMENT PARTS OTHER THAN THOSE SUPPLIED BY GROEN OR THE IR AUTHORIZED DISTRIBUTORS CAN CAUSE INJURY TO THE OPERATOR AND DAMAGE TO THE EQUIPMENT AND WILL VOID ALL WARRANTIES. SERVICE PERFORMED BY OTHER THAN FACTORY-AUTHORIZED PERSONNEL WILL VOID ALL WARRANTIES. -
Page 11: Troubleshooting
If the actions suggested do not solve the problem, call your authorized Groen Service Representative. For the phone number of the nearest agency, call your area Groen representative or the Groen Parts and Service Department. If an item on the list is followed by , the work should only be performed by a qualified service representative. - Page 12 OM-FPC Parts List...
-
Page 13: Parts Lists
OM-FPC Parts List Description Part No. Description Part No. Gear Carrier Assembly (Casting) 014079 Nut - Acorn 090567 W orm Gear Sector 003692 Spacer - Long 012733 90 deg. Alemite Grease Fitting 012195 Thermostat - Non-adjustable 012840 Fuse Bus - 3 Amp 002651 Not Used Straight Alemite Grease Fitting... - Page 14 OM-FPC Parts List Description Part No. Description Part No. FOR 7" DEEP PAN FOR 9" DEEP PAN Stud Weld ¼” - 20x 012590 Stud Weld ¼” - 20x 012590 Cover Hinge Bracket 013485 Cover Hinge Bracket 013485 Bracket Cover 013277 Bracket Cover 013277 Actuator #51 FPC/CFPC...
-
Page 15: Electrical Parts Chart
OM-FPC Electrical Parts Chart CONTACTOR HEATER INDIC. TRANS- MODEL LIGHT FORMER FPC-2, M W /FPC-2, FPC/1-2, & M W /FPC/1-2 208V/1 ph 013368 012842 016028 NONE 240V/1 ph 013368 012843 016028 NONE 208V/3 ph 013368 012842 016028 NONE 240V/3 ph 013368 012843 016028... -
Page 16: Diagrams & Schematics
OM-FPC Diagrams & Schematics FPC/1-2, 208 and 240 Volts FPC/1-2 380/415 Volts... - Page 17 OM-FPC Diagrams & Schematics, Continued FPC/1-3, 208 and 240 Volts FPC/1-3, 380/415 Volts...
- Page 18 OM-FPC Diagrams & Schematics, Continued FPC/1-4, 208 and 240 Volts FPC/1-4, 480 Volts...
-
Page 19: Maintenance Log
OM-FPC Service Log Model No. Purchased From Serial No. Location Date Purchased Date Installed Purchase Order No. For S ervice Call Date Maintenance Performed Performed by... -
Page 20: W Arranty
Groen Foodservice Equipm ent ("Groen Equipment") has been skillfully m anufactured, carefully inspected and packaged to meet rigid standards of excellence. Groen warrants its Equipm ent to be free from defects in material and workmanship for (12) twelve months with the following conditions and subject to the following limitations. - Page 21 OM -FPC (Revised 08/02) 105 5 Men dell D avis Dr ive Jackson, MS 39272 Rev B Part Number 121024 Telephone 601 372-3903 FAX 601 373-958 7...
