Overview
This Hardware Installation Guide provides a brief description of the hardware
installation of the print server. It contains the following information:
Scope of Supply
Safety Regulations
Print Server Controls and Technical Data
Mounting the Print Server
Notification
Information and Hotline
To obtain additional information about your print server, please refer to the
documentation on the product CD. Should you have any further questions, please
contact our support hotline.
Monday - Thursday
Friday
℡
+49 (0)521 94226-44
@
support@seh.de
Hardware Installation Guide
Print Server
IC146-ETHER-HP-FL
Hardware Installation Guide
8:00 a.m. to 5:45 p.m. and
8:00 a.m. to 4:15 p.m. (CET)
1
Advertisement
Table of Contents
Related Manuals for SEH IC146-ETHER-HP-FL
Summary of Contents for SEH IC146-ETHER-HP-FL
-

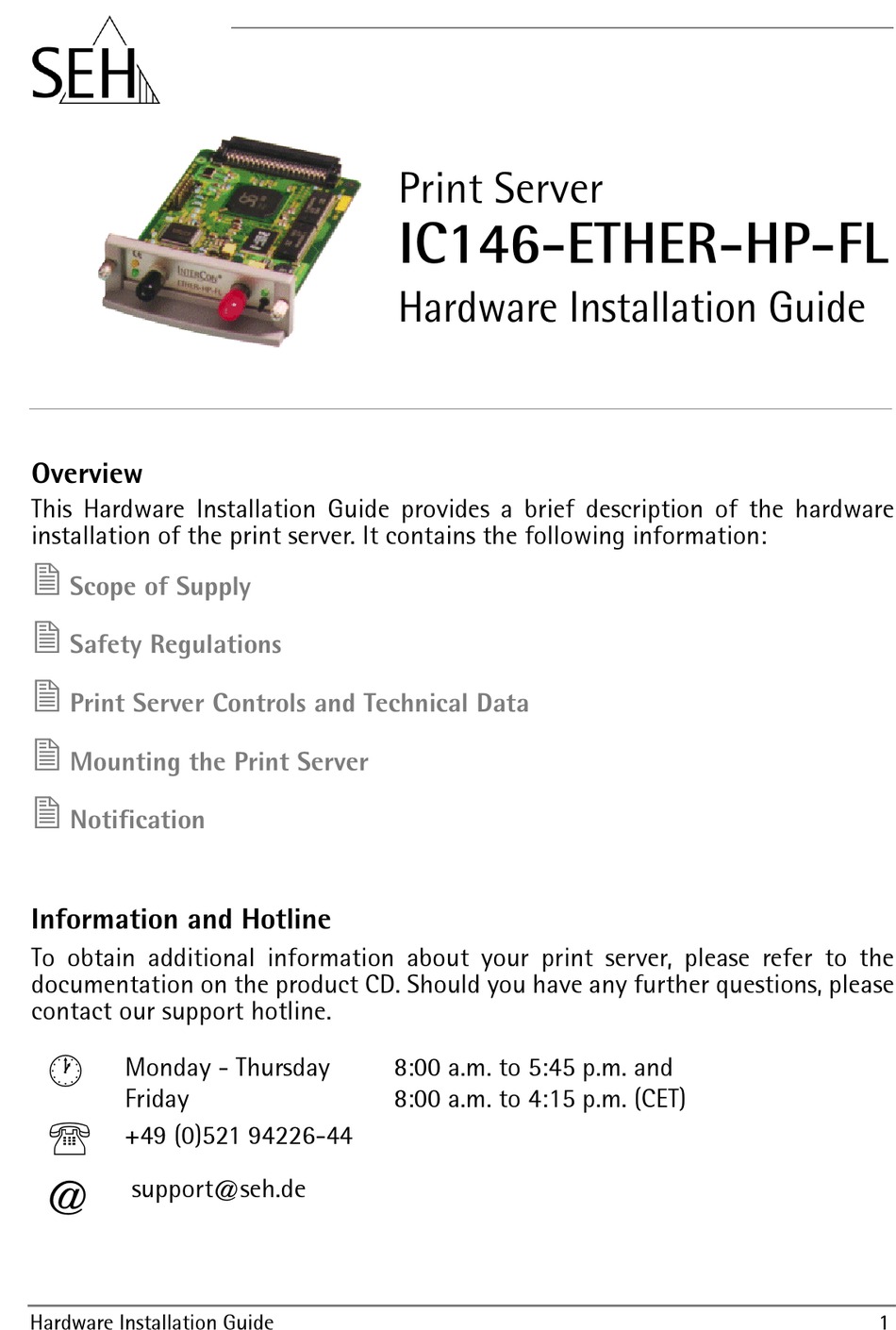

Page 1: Print Server
CD. Should you have any further questions, please contact our support hotline. Monday - Thursday Friday ℡ +49 (0)521 94226-44 support@seh.de Hardware Installation Guide Print Server IC146-ETHER-HP-FL Hardware Installation Guide 8:00 a.m. to 5:45 p.m. and 8:00 a.m. to 4:15 p.m. (CET) -
Page 2: Scope Of Supply
Guide Software Quick Installation Product CD IC146-ETHER-HP-FL Provides a brief description of the hardware installation of the print server. (This document) Provides a brief description of the software installation of the print server under each of the supported operating systems. -
Page 3: Français (Fr)
Saftety Regulations English (en) Print servers are network interfaces for printers in office environments and are designed for the direct integration of printers into networks. Before starting the initial operation procedure of your print server, please note the following safety regulations: •... -
Page 4: Italiano (It)
Les serveurs d'impression sont des interfaces réseaux pour les imprimantes dans des bureaux et servent à l'intégration directe des imprimantes dans les réseaux. Avant de mettre en service votre serveur d'impression, veuillez suivre ces quelques conseils de sécurité: • Lisez attentivement la documentation et assurez-vous que votre système satisfait bien toutes les exigences mentionnées. -
Page 5: Português (Pt)
• Il server di stampa deve essere collegato e messo in funzione solo in condizioni perfette. • Assicurarsi che nessuno inciampa nei cavi. • Prima di procedere all'estrazione della scheda dalla confezione devono essere adottate misure idonee per evitare danneggiamenti del server di stampa a causa di scariche elettrostatiche. -
Page 6: Nederlands (Nl)
• Detta är en laserklass 1 produkt. Om ingen kabel ansluts till SC- resp. ST-kontakten kan osynlig laserstrålning tränga ut. Utsätt dig ej för laserstrålen och se inte in i laserstrålen. Sätt de i leveransen medföljande pluggarna på SC- resp. ST-kontakten om den ej används. - Page 7 • Lees de documentatie en vergewist u zich er van dat uw systeem voldoet aan de vermelde vereisten. • Het apparaat mag niet in aanraking komen met vochtigheid of met vloeistoffen. • De printserver mag alleen in onbeschadigde toestand worden aangesloten en bedreven.
-
Page 8: Lietuvių Kalba (Lt)
• Pred vybalením urobte opatrenia, aby sa predišlo poškodeniu elektrostatickými výbojmi. • Ide o laserový výrobok triedy 1. Ked nie je do SC- príp. ST-zástrčky pripojený žiadny kábel, je možné že vyžaruje neviditeľný laserový lúč. Nevystavujte sa laserovému lúču a nepozerajte sa do vnútra. Na SC- príp. ST-zástrčku nasadte ochranné kryty, dodané... -
Page 9: Latviešu Valoda (Lv)
ijungtas joks kabelis, gali būti, kad spinduliuojami nematomi lazerio spinduliai. Ven- kite lazerio spindulių ir nežiūrėkite į vidų. Užmaukite pridėtus apsauginius gaubtelius ant SC ar ST kištukinių jungčių, jei jų nenaudojate. • Printserver negãlima anapus printer dirbiti. Latviešu valoda (lv) Printera serveri ir tīkla saskarnes printeriem biroju apkārtnē... - Page 10 Polski (pl) Serwery druku stanowią interfejsy sieciowe dla drukarek w otoczeniach biurowych i służą do bezpośredniego integrowania drukarek w sieci. Przed uruchomieniem serwera druku należy przestrzegać następujących przepisów bezpieczeństwa: Przeczytać dokumentację i upewnić się, że posiadany system spełnia podane tam •...
- Page 11 • Olvassa el a dokumentációt és biztosítsa, hogy az Ön rendszere megfeleljen a felsorolt követelményeknek. • A készülék nem léphet érintkezésbe nedvességgel vagy folyadékkal. • Csak sértetlen állapotban csatlakoztatható és üzemeltethető a nyomtatószerver. • Az összes kábelt fektesse úgy, hogy senki ne léphessen rá vagy botolhasson meg. •...
-
Page 12: Print Server Controls And Technical Data
Print Server Controls and Technical Data Characteristics Printer Connector Network Connection logical: physical: Operating Environment Dimensions 1) Network activity LED (yellow): 2) TX 3) RX 4) Link indicator LED (green): 5) Status button 6) Status indicator LED (green): Values - HP EIO - IEEE 802.3j (10BaseFL Ethernet) - ST (Type MMF 62,5/125) - Ambient temperature: 5 - 40 °C... -
Page 13: Mounting The Print Server
Mounting the Print Server The print server is a so-called slot card that is simply inserted into the foreseen slot. The print server slot is usually located next to, or above the printer's Centronics interface. Insert the print server Proceed as follows: 1. - Page 14 Notification Hardware Installation Guide...
- Page 15 Pursuant to Part 15.21 of the FCC Rules, any changes or modifications to this device not expressly approved by the SEH Computertechnik GmbH may cause interference and void the FCC authorization to operate this device. This device has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the FCC Rules.
- Page 16 Online Links to important Internet Resources: Free Guarantee Extension: Support Contacts and Information: Sales Contacts and Information: © 2005 SEH Computertechnik GmbH All trademarks, registered trademarks, logos and product names are property of their respective owners. Suedring 11 Germany Document:...
