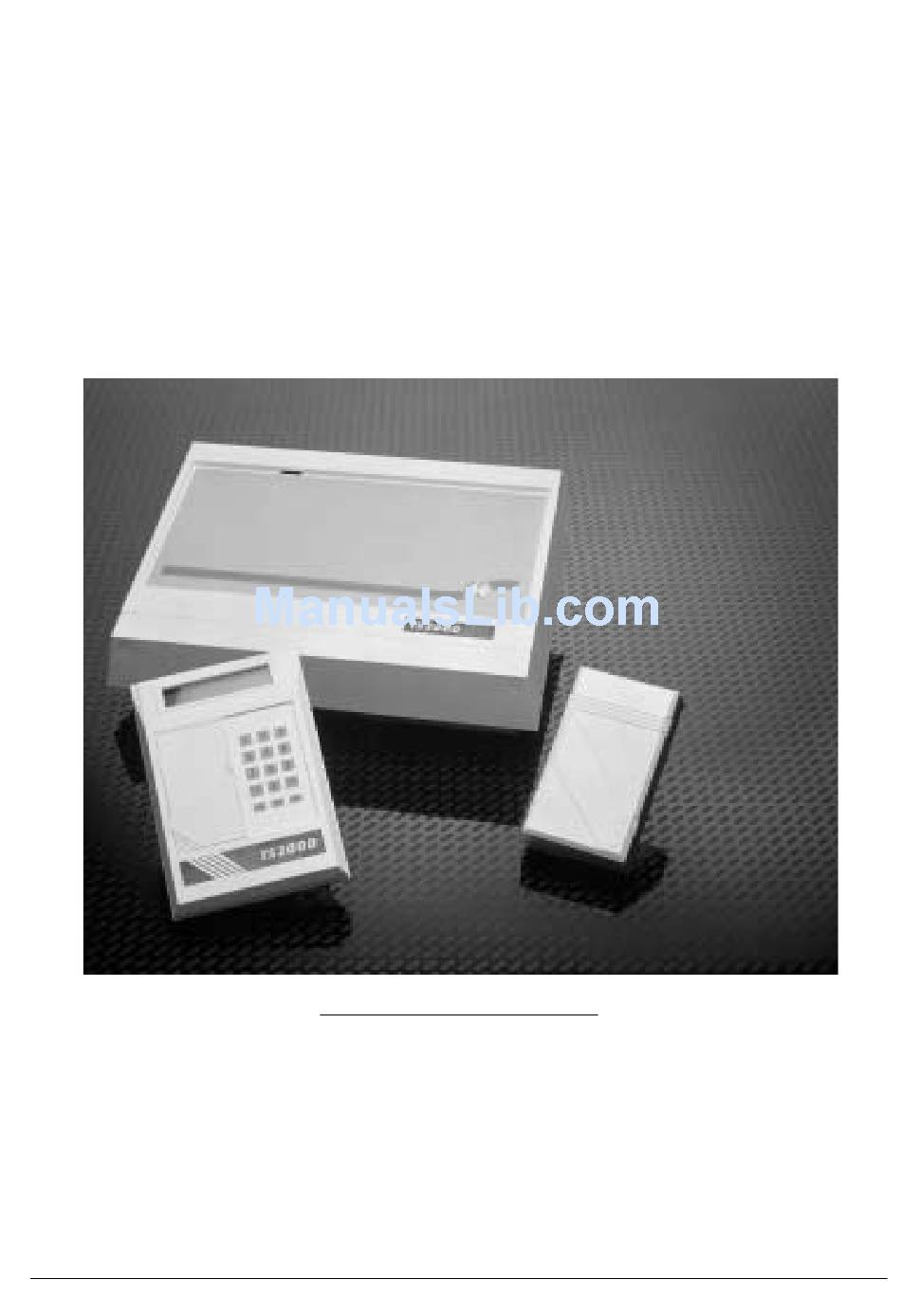

- Page 1 TS2000 Installation & User Guide Compatible Equipment CPA6 OM - Output Module 9040 - Loudspeaker DC54/58 - Digital Communicators 1 of 20 496529 Issue A TS2000...
- Page 2 TS2000 OVERVIEW Introduction The Intruder Alarm Control System TS2000 is provided for large domestic and general commercial intruder systems conforming to BS 4737 part 1 1986. It is an extremely versatile system with the following facilities: Will monitor up to 128 zones using various types of detector device;...
-
Page 3: Additional Equipments
Power Supply Unit: All power can be supplied from the TS2000 CP internal Power Supply Unit but in large systems it may be necessary to fit additional power supply units. The PSU150 has been designed for use with the TS2000... -
Page 4: Schematic Block Diagram
REMOTE KEYPAD No X 3 Detection Circuits for WCU 12V Supply NODE OR REMOTE KEYPAD No 32 (MAX) Figure 1. TS2000 Schematic Block Diagram 4 of 20 PSTN Lines* Other Option Outputs Programmable Option Outputs Control Network Cable Detection Circuits... - Page 5 12V supply Loudspeaker Drive LSD1* Three Outputs *NODE UNIT *Relay Unit RM.3A Four Circuits Four Outputs Figure 2. TS2000 System Options - Schematic 5 of 20 Approved To PSTN Modem To PSTN Mains Input DC 28 Digicom 8 Outputs* 8 Outputs*...
-
Page 6: Power Supply
TS2000 Equipment System Specification Supply Voltage: 240V + or - 10% 30W 50 Hz Battery: 12V 6Ah Zones: 128 maximum Outputs: 128 remote 8 local maximum Unit Dimensions: CP L 395 x W 280 x D 100mm (boxed) NU/WCU L 145 x W 85 x D 50mm... - Page 7 Control Unit Figure 3. Ward Control Unit Schematic 7 of 20 Network Ward Control Outputs: Ward Set Fail (A) Ward Exit (B) Ward Set (C) Ward Alarm (D) Last Exit/Entry(LX Con) Access (Acc Con) Exit Terminate (ET Con) TS2000 TS2000...
- Page 8 TS2000 8 of 20 TS2000 496529 Issue A...
- Page 9 TS2000 Figure 6. TS2000 Network Connections 9 of 20 496529 Issue A TS2000...
- Page 10 Connect to CP (Fig 4) or previous unit and to next unit Connect to CP (Fig 4) or to previous unit (Down) Connect to next unit (Up) Figure 8. TS2000 Remote Keypad Node - Connections TS2000 MUTE I/P B SOUND I/P A...
- Page 11 WARD EXIT SET FAIL WARD ALARM Programme circuits in ward X A = Ward Control B & C = Night Figure 9 TS2000 Ward Control Unit - Connections Exit Mode Settle Exit Entry Timers: Figure 10. Ward Control Unit - Layout and Settings...
- Page 12 TS2000 Figure 11. TS2000 Circuit and Output Connections 12 of 20 TS2000 496529 Issue A...
-
Page 13: Key Functions
JP13 Open: Normal Closed: Soft reset Fuses Fuse Value PSU F1 1AQB PSU F2 2A QB Fuseholder 1A QB Fused terminal Block 13 of 20 TS2000 Low voltage ac input 12V external (auxiliary) supply Network 12V supply Mains input TS2000... - Page 14 TS2000 Define Circuit Text STEP ACTION DISPLAY Press < YES > to DEFINE CIRCUIT TEXT CCT > 001 000 000 000 Press YES to accept displayed data. Press NO to change CCT 001 > 000 000 000 Text is to be changed. Enter number of the first word of CCT 001>123 000 000...
- Page 15 TS2000 Dictionary ABOVE ACCESS ACCOUNTS ADMIN ALARM ALERT ANNEXE AREA ASSEMBLY ASSISTANT ATTACK ATTIC AUTOMATIC AUXILIARY BACK BAGGAGE BAKERY BALCONY BALLROOM BANKING BARN BASEMENT BATHROOM BEAM BEDROOM BELL BELOW BESIDE BLOCK BLUE BOARD BODY BOILER BOTTOM BOYS BRANCH BROWN BUILDING...
- Page 16 TS2000 TS2000 Dictionary Cont’d INFRA-RED INSIDE INSTRUCTORS INTERIOR INTO IRON JANITOR JUNIOR KEEP KEYPAD KITCHEN LADIES LANDING LAST LAUNDRY LAVATORY LAWN LECTURE LEFT LEVEL L.H.S. LIBRARY LIFT LIGHT LINE LITTLE LOADING LOBBY LOCK LOFT LORRY LOUNGE MACHINE MAGNETIC MAIN MAJOR...
- Page 17 TS2000 Dictionary Cont’d SITE SITTING SLIDING SMOKE SOFTWARE SOUND SOUTH SPRAY SPRING SQUARE SQUASH STABLE STAFF STAIRS STAIRWELL STALLS STAND START STATION STOP STORE STORES STROBE STRONG STUDY SUITE SUMMER SUNDAY SUPPLY SURGERY SWIMMING SWITCH SYSTEM TABLE TALL TAMPER TEACHER...
- Page 18 TS2000 Programmable Ouputs The programmable outputs from the NU and the REM, are referred to as the Node Outputs response to various conditions or events. They are programmed to respond to System, Ward or Circuit activation. Panel outputs are from the CP and are programmed in the same way as the Node outputs.
- Page 19 1, 2, 3, 4, 5, 6 1, 2, 3 1, 2, 3, 4, 5 1, 2, 3, 4, 5 1, 2, 3 1, 2, 3 1, 2, 3, 1, 2 1, 3, 4, 5, 6 1, 2 1, 2 1, 2 TS2000 TS2000...
- Page 20 TS2000 This page intentionally left blank 20 of 20 TS2000 496529 Issue A...
