SECO-LARM Enforcer Video EV-1323C12DWQ Specification Sheet

12 or 24 LEDs
40' or 80' Range
IP67 for Outdoor Use
Low Power Consumption
Model Lens Angle LEDs
EV-132C-DW2Q 2.9mm
4.3mm
EV-1323C12DWQ
6.0mm
EV-132C-DWL6Q
EV-132C-DWL8Q 8.0mm
EV-132C-DWLDQ 12.0mm
EV-132C-DWLHQ 16.0mm

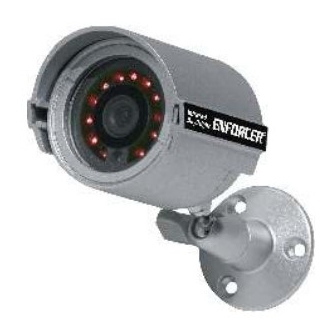

SECO-LARM's IR Day/Night Color Cameras with 12
LEDs for up to 40' range or 24 IR LEDs for up to 80' range
incorporate the Sony CCD to provide a clear picture and
outstanding resolution (420 TV lines) at a very low lux
(0.1 lux LED off, 0 lux LED on). They combine a rugged
die-cast aluminum construction with a unique weatherproof
(IP67) design and sunscreen for indoor or outdoor use.
Day
IP67
Night
Weatherproof
Sony
Current
CCD
Drain
Copyright 2007 SECO-LARM U.S.A., Inc. All rights reserved.
The SECO-LARM policy is one of continual development. For that reason, SECO-LARM reserves the right to change prices and specifications without notice. SECO-LARM is not responsible for misprints.
16842 Millikan Avenue, Irvine, CA 92606
o
120 12
o
12
78
o
53 24
o 24
39
o
24
26
o
24
19
Viewing angles are approximate
IR
12
IR
VDC
Low
0
Lux
1.949.261.2999 (CA & Int'l)
Email: info@seco-larm.com

Technical Specifications:

12 LED Cameras
Infrared Illumination
Current consumption
60mA (LED off)
160mA (LED on) 290mA (LED on)
Chip
S/N ratio
Resolution
Pickup elements
Scanning system
Sync
Video output
1 Vp-p composite output, 75 ohms
Minimum illumination
0.1 lux (LED off), 0 lux (LED on)
Backlight compensation
Shutter control
Gain control
Gamma correction
White balance
Power source
Enclosure
Ambient temperature
Dimensions
3 /
Sunscreen & Bracket
1.800.662.0800 Fax: 1.949.261.7326
Website: www.seco-larm.com
24 LED Cameras
Up to 40' Up to 80'
90mA (LED off)
1/3" CCD, Sony
50dB (AGC off)
420 TV lines horizontal
512 x 492 pixels
Interlace 2:1
Internal
Auto
Auto, 1/60~1/100,000 sec.
Auto
0.45
Auto
12VDC ±10%
IP67 Weatherproof
14°~131° F (-10°~55° C)
1 "(L) x 2 / 1 "(D) (78 x 57 mm)
16 4
Included
