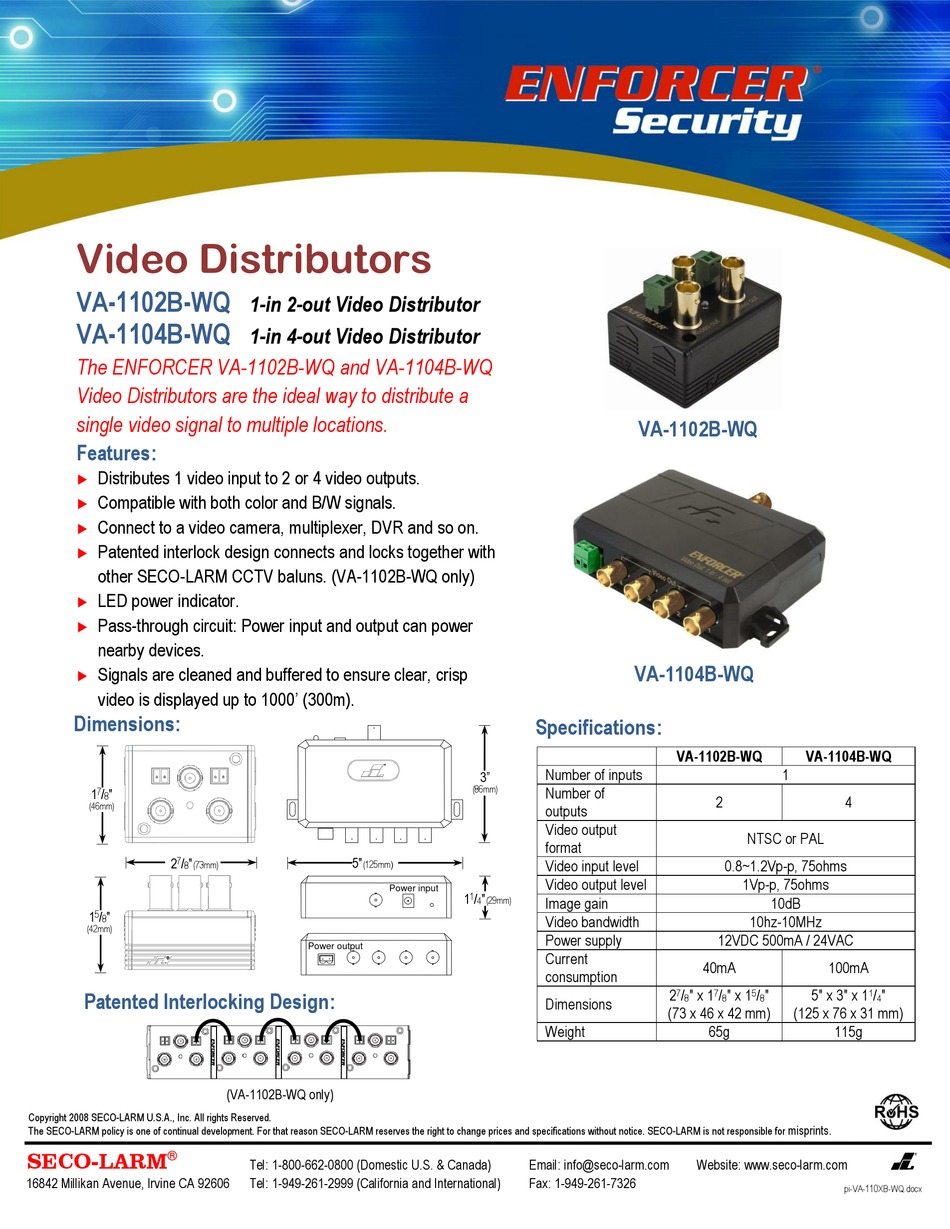

SECO-LARM Video Distributors VA-1102B-WQ Specification Sheet

Video Distributors
VA-1102B-WQ
VA-1104B-WQ
The ENFORCER VA-1102B-WQ and VA-1104B-WQ
Video Distributors are the ideal way to distribute a
single video signal to multiple locations.
Features:
Distributes 1 video input to 2 or 4 video outputs.

Compatible with both color and B/W signals.

Connect to a video camera, multiplexer, DVR and so on.

Patented interlock design connects and locks together with

other SECO-LARM CCTV baluns. (VA-1102B-WQ only)
LED power indicator.

Pass-through circuit: Power input and output can power

nearby devices.
Signals are cleaned and buffered to ensure clear, crisp

video is displayed up to 1000' (300m).
Dimensions:
1 7 / "
8
(46mm)
2 / "
7
8 (73mm)
1 5 / "
8
(42mm)
Patented Interlocking Design:
Copyright 2008 SECO-LARM U.S.A., Inc. All rights Reserved.
The SECO-LARM policy is one of continual development. For that reason SECO-LARM reserves the right to change prices and specifications without notice. SECO-LARM is not responsible for
SECO-LARM
®
16842 Millikan Avenue, Irvine CA 92606
1-in 2-out Video Distributor
1-in 4-out Video Distributor
5"
(125mm)
Power input
Power output
(VA-1102B-WQ only)
Tel: 1-800-662-0800 (Domestic U.S. & Canada)
Tel: 1-949-261-2999 (California and International)
VA-1102B-WQ
VA-1104B-WQ

Specifications:

Number of inputs
3"
(86mm) Number of
outputs
Video output
format
Video input level
Video output level
1 1 / "
Image gain
(29mm)
4
Video bandwidth
Power supply
Current
consumption
Dimensions
Weight
Email: info@seco-larm.com
Fax: 1-949-261-7326
VA-1102B-WQ VA-1104B-WQ
1
2 4
NTSC or PAL
0.8~1.2Vp-p, 75ohms
1Vp-p, 75ohms
10dB
10hz-10MHz
12VDC 500mA / 24VAC
40mA 100mA
2 / " x 1 / " x 1 / " 5" x 3" x 1
7 7 5
8 8 8
(73 x 46 x 42 mm) (125 x 76 x 31 mm)
65g 115g
misprints.
