Summary of Contents for VIZU Auto Breader

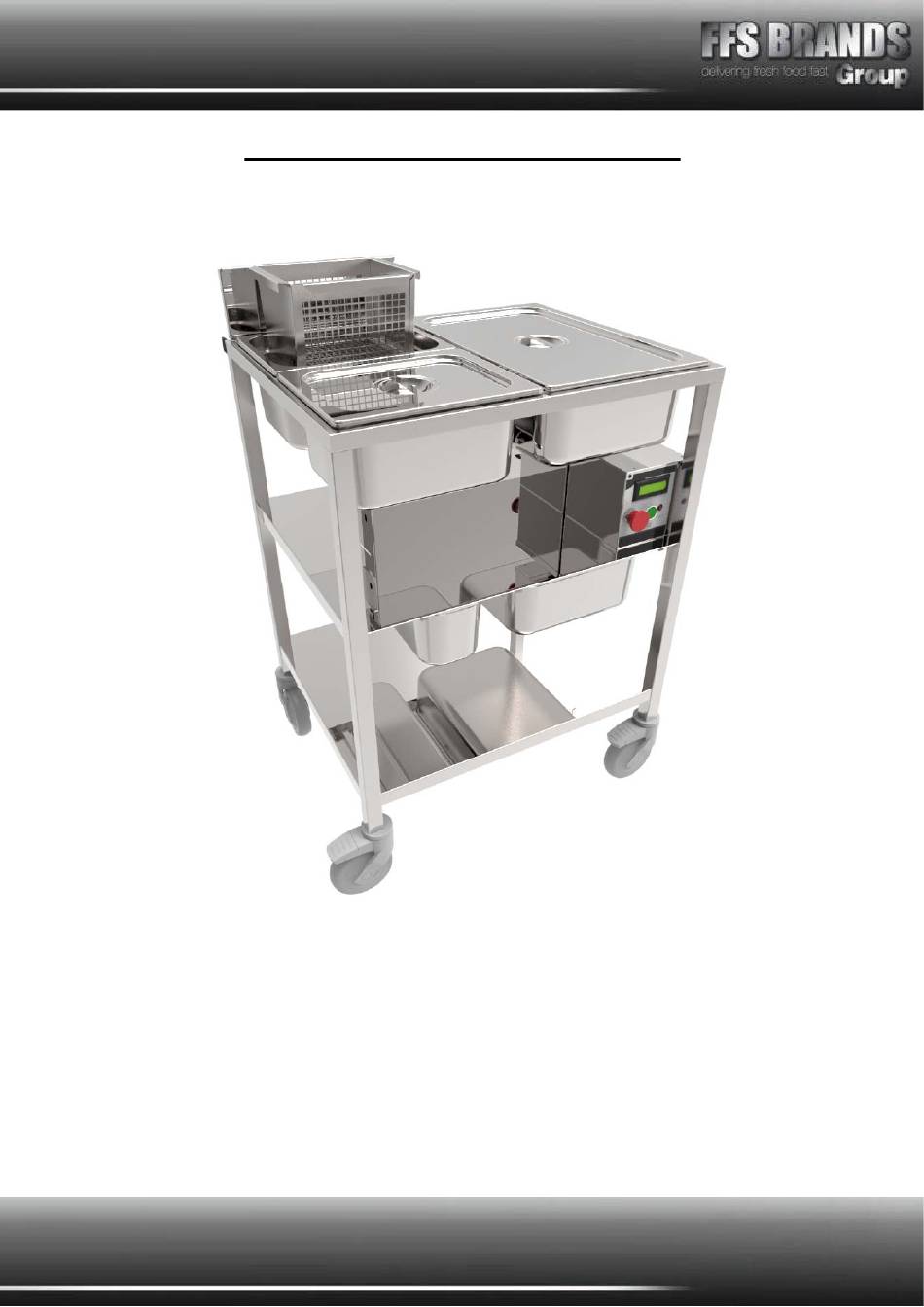

- Page 1 VIZU Auto Breader ® VI005AB Vizu mobile breading station with motorised rotary sieve, for dividing re-usable flour & dough balls for discarding. ...
- Page 2 VIZU AUTO BREADER Specification Page Model VI005AB Dimensions Machine Height 1045mm Width 710mm Depth 645mm Weight 43kg Electrical 1 phase , 50Hz AC, 230 V, .01kw Running Amps Connection Type 2m BESCHUKO Euro cable with, MFEUROCONVERT Euro to UK converter plug International Option ...
-
Page 3: General Description
Please retain all packing materials. Damage must be reported within 7 days of delivery General Description The Vizu mobile breading station is a motorised rotary sieve used for dividing re-usable flour & dough balls. Assembly Instructions 1. - Page 4 Operating Instructions (VI005AB) 1. Remove steel plug from large pan. 2. Using the steel plug push the breading through the hole onto the sieve. 3. Once the sieve compartment is full – or you have added enough breading for your requirements replace the stainless steel plug.
- Page 5 DO NOT LIFT PLUG OUT AS BREADING WILL BE FLICKED OUT WHICH IS POTENTIALLY DANGEROUS 7. If the machine needs to be stopped press the ‘red’ ON / OFF emergency stop button. This will stop the machine. It will be switched off and display will not be illuminated. ...
- Page 6 Cleaning (VI005AB) Disconnect from power supply. Remove the stainless steel pans and wash in warm soapy water, dry thoroughly with a soft dry cloth. Remove both pan supports from the Breader frame Lift the lid off the sieve ...
- Page 7 Unlatch the drop catch on the side of the motor box and slide the motor box over 2 to 3 inches. This disengages the motor. Holding the breading compartment the brush can now be slid back in the direction of the drive side –...
-
Page 8: Wiring Diagram
Wiring Diagram ... - Page 9 Exploded Diagram ...
- Page 10 Exploded Diagram ...
- Page 11 Exploded Diagram ...
-
Page 12: Spare Parts Listing
Euro to UK converter plug In black 19-1032 MF20-32 Nylon Bush Rear For Man+Auto Breada MF61-29 Motor Drive Bar to Suit Brush MF504-341 Transformer MF817-8877 Black Nylon 66, strain relief cable bush MF02-2550/61-28 Auto Breader Brush Assembly Complete ... - Page 13 PART NO. DESCRIPTION QTY. IMAGE MF354Z 2 Pole 5amp term block TB06 MF193-026 Bridge Rectifier Quad SKB25/02 17A 1600V MF330-8638 Push Button Zb4-Ba31 Non-Illuminated MF795-1318 Red mushroom push button MF374-1029 10mm low profile lens indicator 230VAC GSGAST90262 1/2GN pan 150mm deep GSGAST90062 1/1GN 150mm deep GSGAST90562...
-
Page 14: Fault Finding
Fault Finding Qualified personnel must only carry out any servicing. Machine must be removed from electrical supply before any servicing. Vizu Auto Breader VI005AB Problem Probable Cause Solution 1. Count down timer will Not plugged in ... -
Page 15: Terms And Conditions
Terms and Conditions Claims No claim shall be entertained by the Company unless made in writing. Claims arising from damage or partial loss in transit must reach the Company within 7 days from the date of delivery. Claims for non-delivery must reach the Company within 10 days from the date of dispatch. - Page 16 DAMAGE CLAIM FORM Machine: VIZU Auto Breader Product code: VI005AB Customer name…………………………………………………………… Date of delivery…………………………………………………………… Machine serial number………………………………………………… Damage comments……………………………………………………… …………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………… Please indicate on the picture where the unit is damaged Courier name…………………………………………………………………...
-
Page 17: Warranty
Warranty UNITED KINGDOM AND REPUBLIC OF IRELAND Excepting where otherwise specified all products are subject to 12 months parts and labour warranty Goods found defective will be repaired, credited or replaced without charge according to the terms of the Company’s standard warranty, provided written notice is given within the guarantee period. - Page 18 ...
- Page 19 Note… ...
- Page 20 Note… ...
- Page 21 Model Number……………………………… Order ID/Job No…………………………… Machine serial number…………………… Date of Manufacture ……/………/……… Date of delivery……/………/…… Date of commissioning……/………/…… Fast Food Systems Limited Manufacturer & Distributor of Catering Equipment Unit 1 Headley Park 9 Headley Road East Woodley Reading Berkshire RG5 4SQ Tel: 0118 944 1100 Fax: 0118 944 0350 Email: service@fast-food-systems.co.uk Website: www.fast-food-systems.com...
