REPAIR
PARTS
LIST
417.44052400
For Parts or Service:
Call
P12L0051.eps P12C0334.eps P12V0066.eps P12T0084.eps
1-800-4-MY-HOME
(1-800-469-4663)
Or Visit
www.sears.com
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A
P/N 134375000

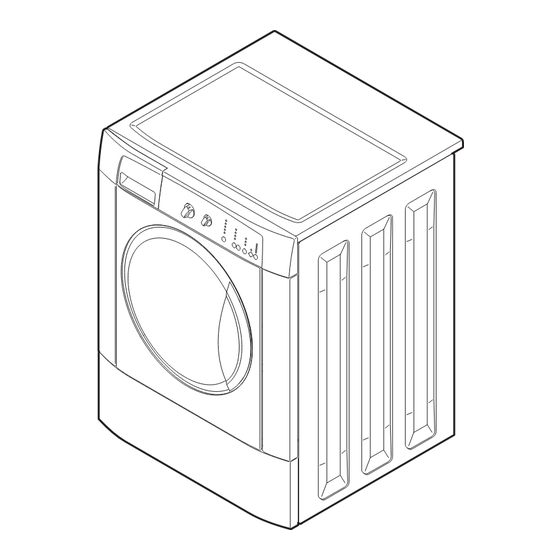

FRONT-LOAD WASHING MACHINE
In all orders or correspondence, avoid delays and misunderstandings
by always giving the complete model number shown on the serial plate
located on the inside of the washer door.
All repair parts listed are available for immediate purchase or special
order when you visit your nearest Sears Parts & Repair Center, or the
Service Department at most Sears stores. To order parts by phone, call
the toll-free number listed to the left or visit sears.com.
When requesting service or ordering parts, always provide the following
information:
®
• Product Type
• Model Number
Publication number 5995422929
134474000.eps
• Part Number
• Part Description
