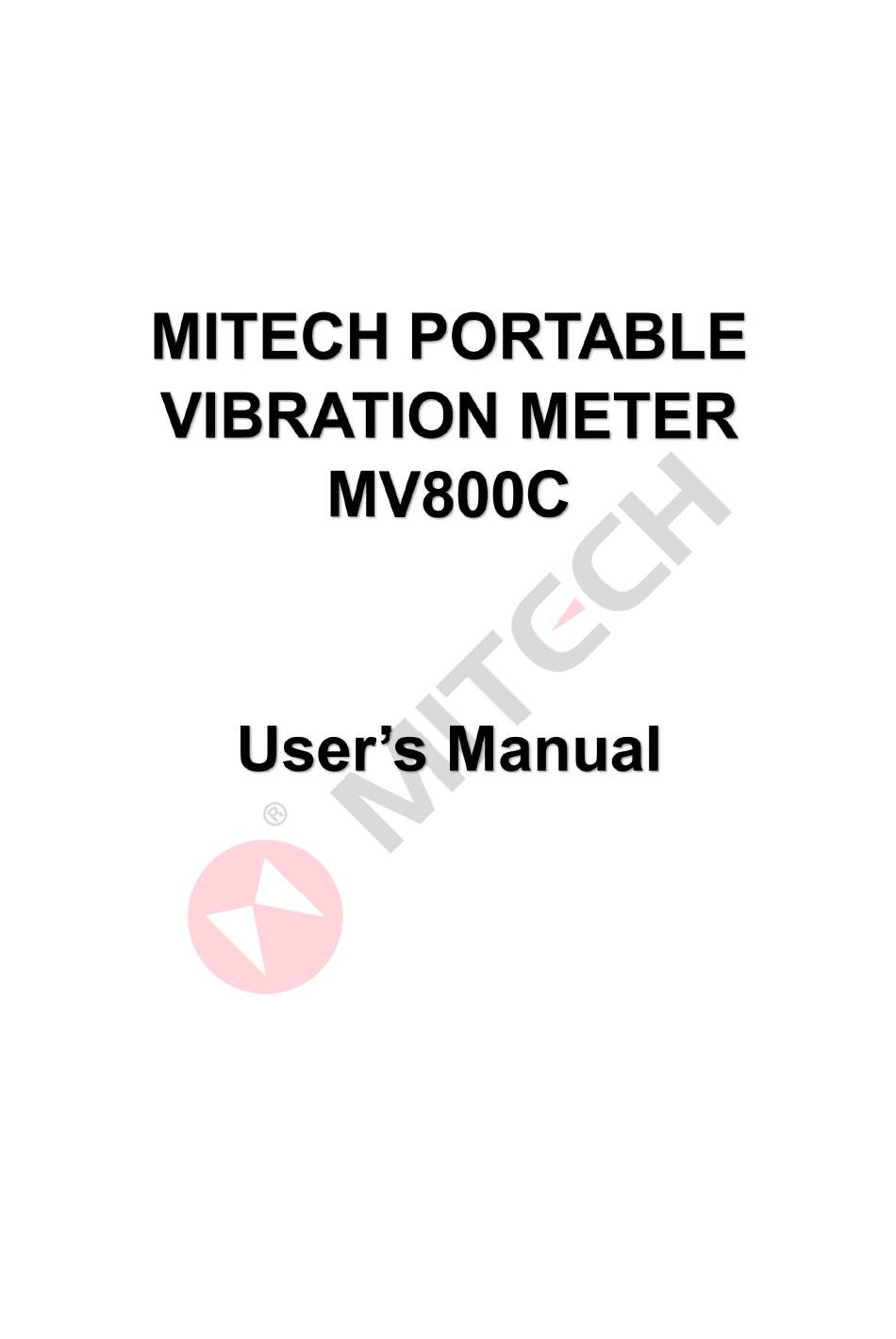

- Page 1 MITECH CO., LTD. www.mitech-ndt.com www.ponpe.com...
-
Page 2: Table Of Contents
CONTENTS 1.Overview................................. 2 1.1 Application..............................2 1.2 Features................................2 1.3 Technical Parameters..........................2 1.4 Working Principle............................2 1.5 Working Conditions.............................2 1.6 Configuration..............................3 2.Structure and Outline............................3 2.1 Main Unit...............................3 2.2 Display................................3 3.Keypad Definition..............................3 4.Operation................................3 4.1 Preparations Before Using........................3 4.2 Selection of Probe............................4... -
Page 3: Overview
Battery life: continuous use for 30 hours 1.4 Working Principle MV800C combines the quartz crystal and PZT piezoelectric effect together. When the quartz crystal or PZT is under strength, the surface generates charger, the vibration was changed into electrical signal by acceleration transducer. -
Page 4: Configuration
1.6 Configuration Configuration Part name QTY. Remarks Main unit Short probe Standard 6F22 battery config User’s manual Warranty Long probe Earphone Optional config Sheathe Cable (signal line) 2.Structure and Outline 2.1 Main Unit Display Cableline Measurement port Audio jack... -
Page 5: Selection Of Probe
Press measurement key, if the screen shows this, it means the voltage is low, you need to change a new one. 4.2 Selection of Probe The principle of selecting probe When measure the displacement, speed, acceleration of low frequency 10Hz~1KHz, select long probe,... -
Page 6: Set Frequency Range
Do not use pincers to avoid damage Theoretically, MV800C can test acceleration of 199.9m/s, while in reality the collision of probe make the test range lower than199.9m/s2, usually the limit of acceleration is 50m/s2. 6. The Standard of Vibration Intensity The vibration is from structure design, manufacture, apply, adjust, it will cause metal fatigue, component abrasion and other faults. -
Page 7: Maintenance& Notes
7.Maintenance& Notes Avoid man-made damage, put sheathe when using When the battery is almost out, please change the battery Take out the battery when not using to avoid the battery leakage After using, clean the tester with soft cloth, avoid rain or oil infiltration ... -
Page 8: User Notes
Warranty ： The product is guaranteed for one year since purchased. Log www.mitech-ndt.com or follow our company official public platform to register for maintenance. Please fill the blanks as required, if the product is not registered for maintenance, it will follow the date of manufacturer.
