SENSAPHONE

REMOTE MONITORING SOLUTIONS

SENSAPHONE CARBON DIOXIDE (CO2) SENSOR • FGD-0068

Quick Installation Instructions

The Sensaphone Carbon Dioxide (CO2) sensor will allow you to monitor levels of Carbon Dioxide from 0-2000ppm with any

Sensaphone that will accept a 4-20 Input signal. The FGD-0068 will require a 24VDC power supply to operate (Part No: FGD-0052).

Note on wiring: Use 22AWG shielded wiring for all connections (Sensaphone Part No. FGD-0010) and do not locate the device wires in

the same conduit with wiring used to supply inductive loads such as motors. Disconnect the power supply before making any connec-

tions to prevent electrical shock or equipment damage. Make all connections in accordance with national and local codes.

Described below is the correct way to wire your Carbon Dioxide (CO

) Sensor to your Sensaphone.

1. Remove the cover.

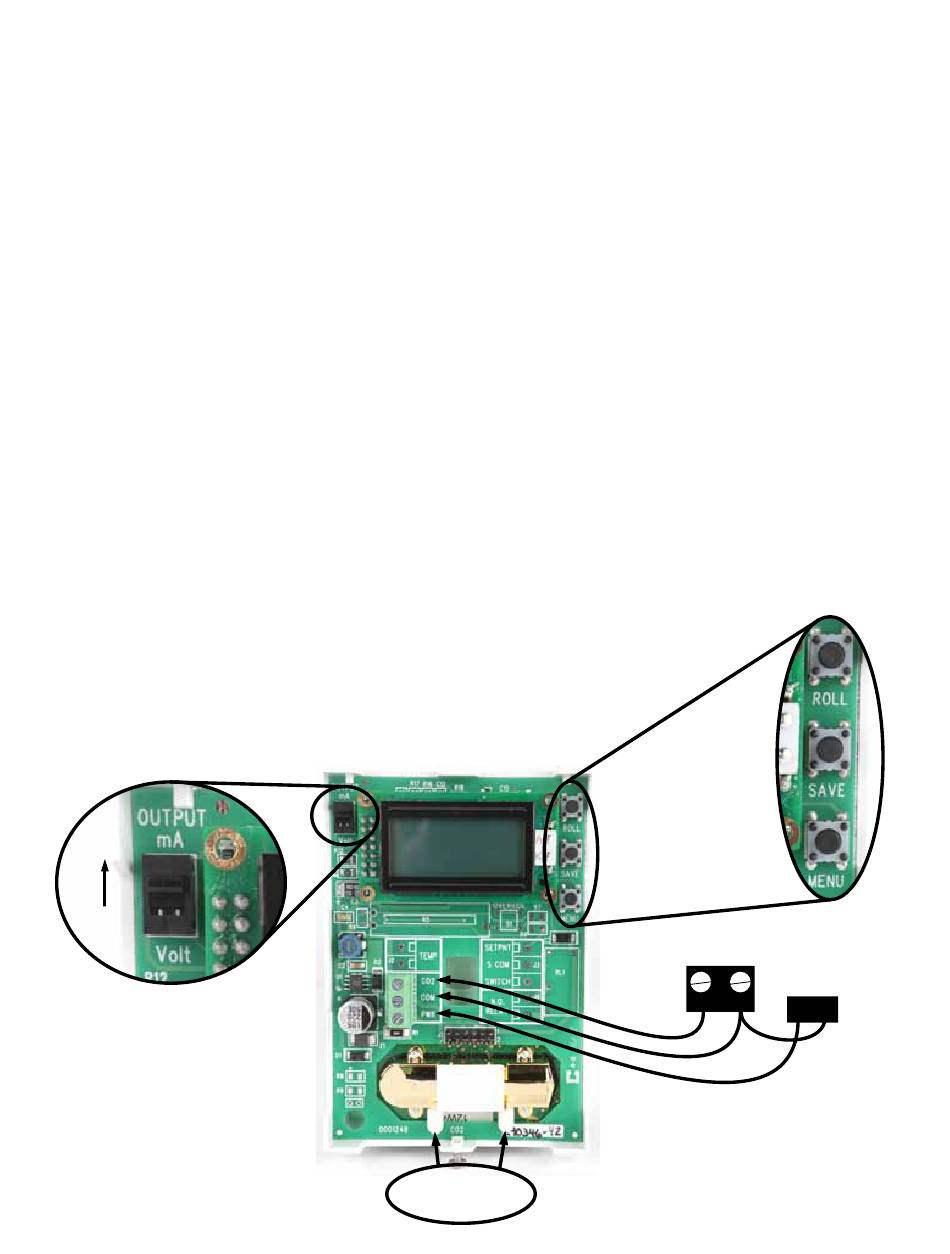

2. Verify the switch in the upper left corner on the sensor is in the "OUTPUT mA" position.

3. Route the wires through the hole in the center of the circuit board.

4. Connect the 24VDC Power Supply Positive (+) to the terminal marked PWR.

5. Connect the 24VDC Power Supply Negative (-) to the Sensaphone Zone Negative (-)

6. Connect the Sensaphone Zone Negative (-) to the terminal marked COM.

7. Connect a wire from the CO2 terminal to the Sensaphone Zone (+) positive terminal.

8. Replace the cover.

9. Program the Sensaphone zone (input) for a 4-20mA sensor type with a table range of 0-2,000.

Sensaphone

Terminal Block

24VDC

Power

–

Sensaphone • 901 Tryens Road • Aston, Pa 19014 • Ph: 877-373-2700 F: 610-558-0222 • Lit-0153 06/13
