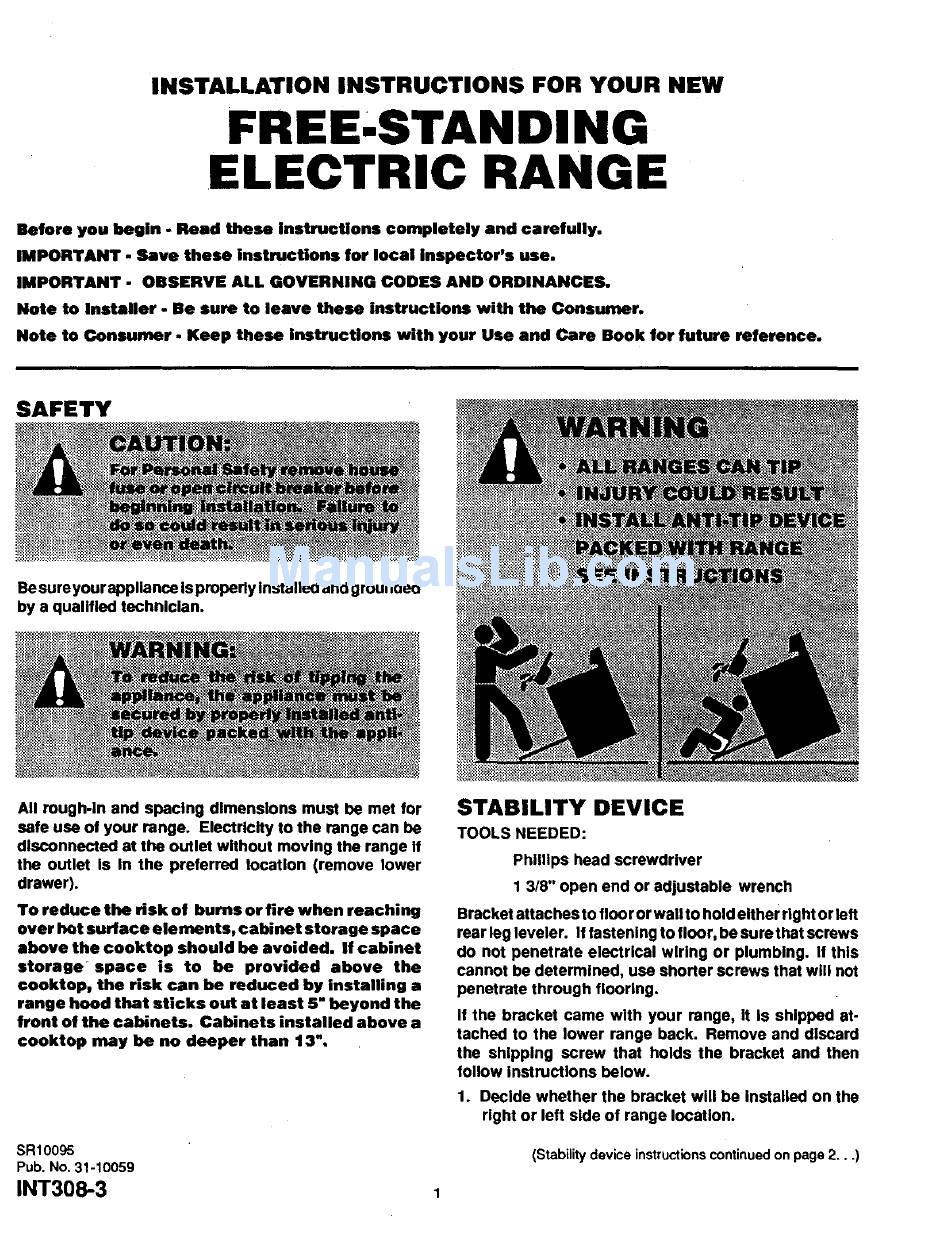

INSTALLATION INSTRUCTIONS FOR YOUR NEW
FREE-STANDING
ELECTRIC RANGE
Before you begin - Read these instructions completely and carefully.
IMPORTANT - Save these instrucUons for local Inspector's use.
IMPORTANT - OBSERVE ALL GOVERNING CODES AND ORDINANCES.
Note to Installer. Be sure to leave these instructions with the Consumer.
Note to Consumer - Keep these Instructions with your Use and Care Book for future reference.
SAFETY
Besureyourappllance is properly Installed and grounded
by a qualified technician.
All rough-In and spacing dimensions must be met for
safe use of your range. Electricity to the range can be
disconnected at the outlet without moving the range If
the outlet Is In the preferred tocatlon (remove lower
drawer).
To reduce the risk of bums or fire when reaching
over hot surface elements, cabinet storage space
above the €ooktop should be avoided. If cabinet
storage ° space is to be provided above the
€ooktop, the risk can be reduced by Installing a
range hood that sticks out at least 5" beyond the
front of the cabinets. Cabinets installed above a
cooktop may be no deeper than 13".
SR10095
Pub. No. 31-10059
STABILITY DEVICE
TOOLS NEEDED:
Phillips head screwdriver
1 3/8" open end or adjustable wrench
Bracket attaches to floor or wall to hold either right or left
rear leg leveler. If fastening to floor, be surethat screws
do not penetrate electrical wiring or plumbing. If this
cannot be determined, use shorter screws that will not
penetrate through flooring.
If the bracket came with your range, It Is shipped at-
tached to the lower range back. Remove and discard
the shipping screw that holds the bracket and then
follow instructions below.
1. Decide whether the bracket will be Installed on the
right or left side of range location.
(Stability device instructionscontinued on page 2,..)
INT308-3 1
