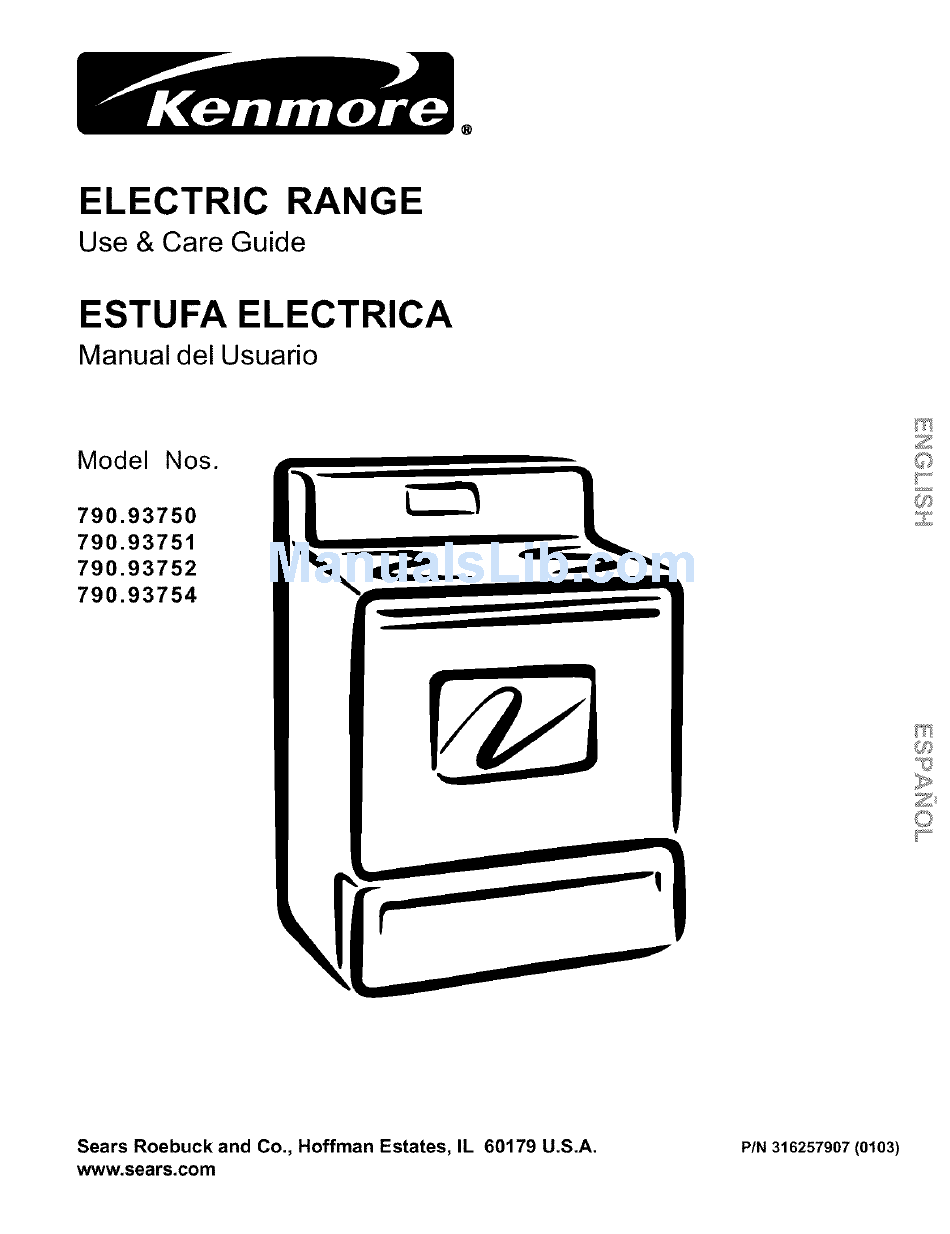

ELECTRIC
RANGE
Use & Care Guide
ESTUFA ELECTRICA
Manual del Usuario
Model
Nos.
790.93750
790.93751
790.93752
790.93754
Sears Roebuck
and Co., Hoffman
Estates,
IL 60179 U.S.A.
PIN 316257907 (0103)
www.sears.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 790.9375 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kenmore 790.9375

  • Page 1 ELECTRIC RANGE Use & Care Guide ESTUFA ELECTRICA Manual del Usuario Model Nos. 790.93750 790.93751 790.93752 790.93754 Sears Roebuck and Co., Hoffman www.sears.com ® Estates, IL 60179 U.S.A. PIN 316257907 (0103)
  • Page 2: Table Of Contents

    WHAT WE SELL Your purchase has added value because you can depend on Sears HomeCentral® for service. With over 12,000 trained repair specialists and access to over 4.2 million parts and accessories, we have the tools, parts, knowledge and skills to ensure our pledge: We Service What We Sell.
  • Page 3: Important Safety Instructions

    Do not allow children to climb or play around the range. The weight of a child on an open door may cause the range to tip, resulting in serious burns or other injury.
  • Page 4 IMPORTANT INSTRUCTIONS • Clean the range regularly to keep all parts free of grease that could catch fire. Pay particular attention to the area underneath each surface element. Do not allow grease to accumulate. • Kitchen cleaners and aerosols--Always residue from cleaners and aerosols may ignite causing damage and injury.
  • Page 5: Important Safety Instructions

    Important Safety Instructions The California Safe Drinking Water and Toxic Enforcement to the state to cause cancer, birth defects or other reproductive to such substances. SERIAL PLATE LOCATION You will find the model and serial number printed on a serial plate. This serial plate is located on the right side of the oven front frame behind the Warmer Drawer or Storage Drawer compartment.
  • Page 6: Range Features

    Integrated Handle Removable Element RemovableElement Drip Bowls(colorsmay vary by model) Removable Element Range Features of your range will vary according to model. Warm & Ready" ElectronicOven Control Drawer with Clock and Controland • W.Itchan " Rmer IndicatorLight :_,_: =:iL _-;...
  • Page 7: Before Setting Oven Controls

    Do not place plastic items such as salt and pepper shakers, spoon holders or plastic wrappings on top of the range when it is in use. These items could melt or ignite. Potholders, towels or wooden spoons could catch fire if placed too close to the surface elements.
  • Page 8 Do not place plastic items such as salt and pepper shakers, spoon holders or plastic wrappings on top of the range when it is in use. These items could melt or ignite. Potholders, towels or wooden spoons could catch fire if placed too close to the surface elements.
  • Page 9: Oven Control Functions

    READ THE INSTRUCTIONS CAREFULLY with the various functions of the oven as described below. OFF/CANCEL PAD-- Used to clear any function previously entered except the time of day and minute timer. Push OFF/CANCEL stop cooking. Also the OFF/CANCEL pad is used to activate oven door lockout setting•...
  • Page 10: Setting Oven Controls

    Note: The time of day must first be set in order to operate the oven. TO Set the Clock When the range isfirst plugged in, or when the power supply to the range has been interrupted, the display will flash "12:00". Press _. Within 5 seconds, press and hold the Note: The clock cannot be changed during any timed bake or self-clean cycle.
  • Page 11 To Set or Change the Temperature The oven can be programmed to bake at any temperature from 170°F to 550°F (65°C to 287°C). To Set the Controls for Baking: Press _. " "appears Within 5 seconds, press the , the temperature can then be adjusted in 5°F (1°C) increments.
  • Page 12 To Set the Timed Bake Feature The COOK TIME and STOP TIME controls operate the Timed Bake feature to turn the oven on and off at the times you select in advance. The oven can be programmed to start immediately and shut off automatically or to begin baking at a later time with an automatic shutoff.
  • Page 13: Setting Oven Controls

    The broiler pan and the insert allows grease to d rain and be kept awayfrom the high heat of the broiler. DO NOT use the pan withoutthe insert. DO NOT cover the insertwith foil; the exposed grease could ignite. Setting Oven Controls To Broil Arrange oven rack while oven is still cool.
  • Page 14: Setting Warmer Drawer Controls

    Setting Warmer Drawer Controls Arranging Warmer (Warm & Ready The rack can be used in 2 ways: In the upright position to allow low profile food items to be placed both under and on top of the rack (for example, rolls or biscuits on top of the rack and a casserole dish under).
  • Page 15: Setting Warmer Drawer Controls

    Pull the bearing glides to the front of the chassis glide (see figure 2). Align the glide on each side of the drawer with the glide slots on the range. Push the drawer intothe range until levers "click" (approximately 2"). Pull the drawer open again to seat bearing glides into position.
  • Page 16: Self Cleaning

    Move birds to another ventilated room. DO NOT line the oven walls, racks, bottom or any other part of the range with aluminum foil. Doing so will destroy heat distribution, produce poor baking results and cause permanent damage to the oven interior (aluminum foil will melt to the interior surface of the oven).
  • Page 17: Self Cleaning

    To Start the Self-Clean Cycle For satisfactory results, use a 2 hour self-clean cycle for light soils and a 3 hour cycle for average or heavy soils. NOTE: The kitchen area should be ventilated using an open window, ventitlation fan or exhaust hood during the first self-clean cycle.
  • Page 18: Care & Cleaning

    Surfaces Aluminum (Trim Pieces) & Vinyl Painted and Plastic Control Knobs, Body Parts, and Decorative Trim Stainless Steel, Chrome Control Panel, Decorative Trim Porcelain Enamel Broiler Pan and Insert, Door Liner, Body Parts, Warmer Drawer (if equipped) Oven Racks Oven door Care &...
  • Page 19 Replace glass shield over bulb and snap wire holder into place. Turn power back on again at the main source (or plug the range back in). The clock will then need to be reset. To reset, see Setting the Clock and Minute Timer in this Use &...
  • Page 20: Care & Cleaning

    Hold the door at the sides near the top. Insert the hinge arms intoslots at the bottom of the door. Hinge arms must go into the range slots evenly. The hinge arms should be inserted into the bottom corners of the door as far as they can go.
  • Page 21: Before You Call

    Make sure cord/plug is plugged tightly into outlet. The time of day must first be set in order to operate the oven. Service wiring is not complete. Contact your authorized Sears Service Centerfor assistance. Power outage. Check house lights to be su re. Call your local electric com pany for service.
  • Page 22 "Stopping or Interrupting a Self-Cleaning Cycle" in the Self Cleaning section. bowls may be purchased from your Sears in this Use & Care Guide. section.
  • Page 23: Notes

    Notes <J...
  • Page 24: Sears Service

    1-888-SU-HOGAR (1-888-784-6427) ® Registered Trademark / _a Trademark / sa Service Mark of Sears, Roebuck end Co. ® Marea Registrada / TMMarea de Fdbdce / SMMama de Servicio de Seers, Roebuck and Co. Marque de commerce / Marque d_pos_e de Sears, Roebuck and Co.
