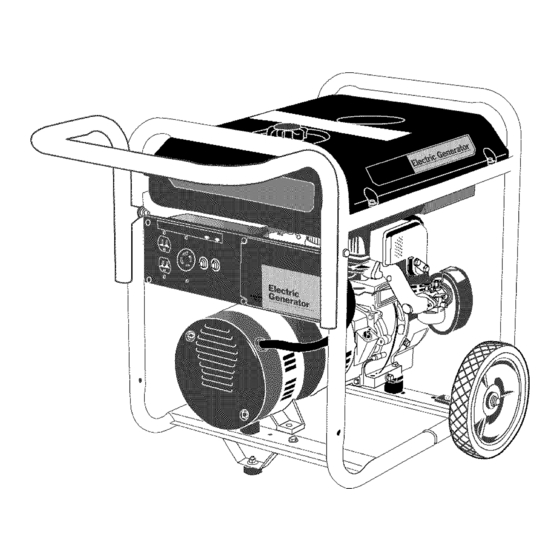

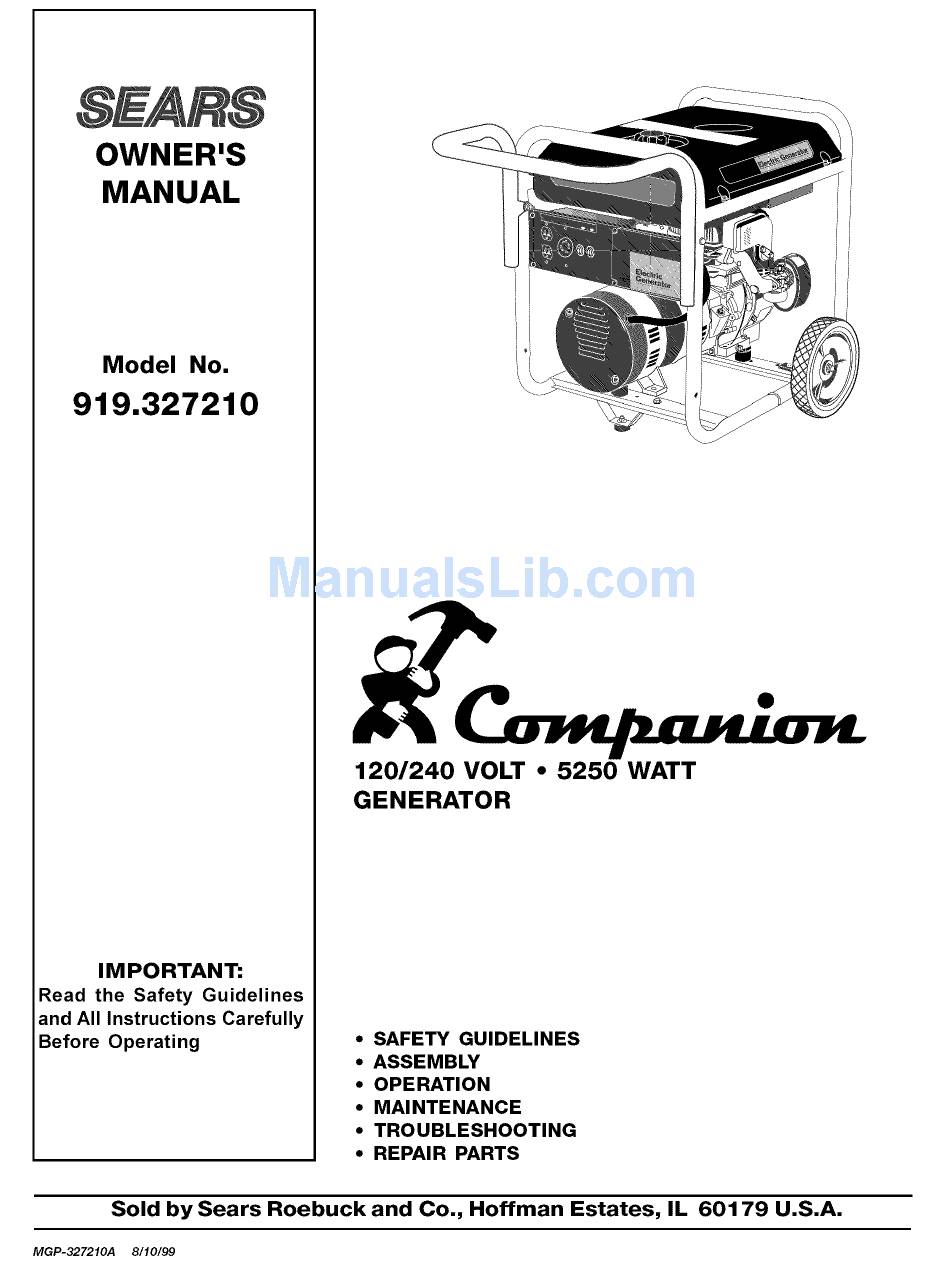

OWNER'S
MANUAL
Model
No,
919.327210
IMPORTANT:
Read
the Safety
Guidelines
and All Instructions
Carefully
Before
Operating
f
.........
............
120/240
VOLT ° 5250
WATT
GENERATOR
• SAFETY
GUIDELINES
° ASSEMBLY
° OPERATION
° MAINTENANCE
= TROUBLESHOOTING
= REPAIR
PARTS
Sold by Sears
Roebuck
and Co., Hoffman
Estates,
IL 60179
U.S.A.
MGP-327210A
8/10/99
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for COMPANION CAMPANION 919.32721
Summary of Contents for COMPANION CAMPANION 919.32721
- Page 1 OWNER'S MANUAL Model 919.327210 IMPORTANT: Read the Safety Guidelines and All Instructions Carefully Before Operating Sold by Sears Roebuck MGP-327210A 8/10/99 120/240 VOLT ° 5250 GENERATOR • SAFETY GUIDELINES ° ASSEMBLY ° OPERATION ° MAINTENANCE = TROUBLESHOOTING = REPAIR PARTS and Co., Hoffman...
- Page 2 Sears will repair, free of charge, any defect in material and workman- ship. If your Sears Generator is used for commercial or rental purposes, this warranty applies for only 90 days from the original date of purchase.
- Page 3 SAFETY This manual contains information that is important for you to know understand. This information relates to protecting YOUR SAFETY PREVENTING EQUIPMENT PROBLEMS. To help you recognize this information, we use the symbols to the right, Please read the manual and pay attention to these sections, IMPORTANT •...
- Page 4 READ AND ATTEMPTING RISK OF ELECTROCUTION HAZARD Operation of generator in rain, wet, icy, or flooded conditions. Use of worn damaged, undersized or un- grounded extension cords. Placing generator on or against highly conductive surface, such as a steel walk- way or metal roof.
- Page 5 READ AND UNDERSTAND ATTEMPTING HAZARD Attempting to fill the fuel tank while the engine is running. Sparks, fire, hot objects Improper storage of fuel Inadequate ventilation for generator Tampering with factory set engine speed settings. Overfilling the fuel tank- fuel spillage. ALL WARNINGS TO OPERATE GENERATOR.
- Page 6 READ AND UNDERSTAND ATTEMPTING Risk of Injury and Property HAZARD Fire, Inhalation, Damage to Vehicle Surfaces RISK OF BREATHING HAZARD Gasoline engines produce toxic carbon monoxide exhaust fumes. ALL WARNINGS TO OPERATE GENERATOR. Damage Transporting Generator WHAT COULD HAPPEN Fuel or oil can leak or spill and could result in fire or breathing hazard, seri- ous injury or death can result.
- Page 7 READ AND UNDERSTAND ATTEMPTING HAZARD Operation of generator in careless manner. Operation of voltage sensitive appliances without a voltage surge protector. HAZARD Contact with hot engine and generator components. HAZARD Contact with moving parts can result in serious injury. ALL WARNINGS TO OPERATE GENERATOR.
- Page 8 READ AND UNDERSTAND ATTEMPTING HAZARD Lifting a very heavy object. Read Owner's Manual. Do not operate equipment until you have read Owner's Manual for Safety, Operation, and Maintenance This product is not equipped with a spark arresting muffler. If the product will be used around flammable materials, or on land covered with materials such as agricultural crops, forest, brush, grass, or other similar items, then an approved spark arrester must be installed and is legally required in the state of California.
- Page 9 Grounding INSTALLING WHEEL The Sears Wheel Kit was designed to greatly improve the portablility of your generator. You will need (2) 1/2" wrenches and (2) 9/16" wrenches. • Place two 4"x4" pieces of wood on the floor. With another person helping, carefully lift the generator and place on top of the wood supports.
- Page 10 KNOW YOUR GENERATOR Read this Owner's Manual and Safety Rules be- fore operation of your Generator, illustration with your generator to familiarize yourself with the location of various controls and adjustments. Save the manual for future references. FUEL TANK- Capacity of 7 US gallons. CHOKE SWITCH- Lever used to start cold engine.
- Page 11 RECEPTACLES Your generator is equipped with duplex 120 volt receptacles and a twistlock 240 volt receptacle. The unit is also equipped with a 20 amp circuit breaker for the 120 volt receptacles and a 20 amp circuit breaker for the 240 volt receptacle which is provided to protect the generator against electrical overload.
- Page 12 TARTI NG TEMPERATLIR1E RANGE_ANTICIPATED Low Oil Shutdown Electrical Your Sears generator engine is equipped with Low Oil Shutdown. signed to protect your engine from damage in the event the oil level in the crankcase is low. If while the engine is running, the oil gets low, it will automatically shut itself down and will not restart until the oil is added.
- Page 13 • On the engine there is a choke/run lever. Place this lever to the choke position. FULL CHOKE POSITION NO CHOKE CHOKE • Grasp the starter handle and pull rope out slowly until it pulls harder. Let the rope rewind slowly. Then pull rope with a rapid full arm stroke.
- Page 14 GENERAL RECOMMENDATIONS The warranty of the generator does not cover items that have been subjected to operator abuse or negligence. receive full value from the warranty, operator must maintain the generator as instructed in this manual. Some adjustments will need to be made periodically to maintain your generator.
- Page 15 The carburetor should not be tampered with. If your gen- erator is used at an altitude in excess of 4000 feet perfor- mance may be affected. If so consult with your nearest Sears Service Center regarding high altitude set changes. Governor Your engine governor maintains the constant operating speed of your generator.
- Page 16 PROBLEM Engine will not start No electrical output Repeated circuit breaker tripping Generator overheating No auto idle DC does not have power with the circuit breaker depressed CAUSE Low on fuel or oil. Ignition switch in "Off" position. Faulty spark plug. Choke in wrong position.
- Page 17 CRAFTSMAN 5250 GENERATOR 919.327210 TORQUE 20-25 IN.-LBS. TOQUE 120-144 IN.-LBS. TORQUE 60-70 IN.-LBS, TORQUE 120-144 IN.-LBS. DESCRIPTION FUEL TAN K SCREWS FUEL TANK FUEL CAP FUEL HOSE FUEL LINE CLAMP DRAINCOCK GROMMET TANK DRAINCOCK ENDCOVER SCREW #10-24 x 9/16 ISOLATOR WASHER 3/8 LOCK NUT 3/8-16 GROUND LUG...
- Page 18 CRAFTSMAN 5250 GENERATOR 919.327210 SHOWN FOR REFERENCE ONLY ORIENT WiTH VENTS DOWNWARDAS SHOWN TORQUE TO 204--264 IN-LBS TORQUE UNTIL THREADS RUN OUT TORQUE TO 120-144-IN-LBS TORQUE TO 30-40 IN-LBS CAPACITORWiRiNG SCALE 1:1 DESCRIPTION DRIVE END ADAPTER LOCKWASHER 3/8 CAP SCREW 5/16 - 24Xl ROTOR ASSEMBLY STATOR THRU BOLT STATOR ASSEMBLY...
- Page 19 CRAFTSMAN 5250 GENERATOR 919.327210 DESCRIPTION 120V/20A DUPLEX RECEPTACLE 4 PRONG TWlSTLOCK CIRCUIT BREAKER 120/240V/20A SCREW #6 - 32 x .5 TORX NUT, 10 - 9 X .50 PLASTITE SWITCH FACE PLATE RESET NUT, HEX JAM 7/16 SPEED NUT #6 - 32 WAS HER 3/8 PART NUMBER GS-0019...
- Page 20 CRAFTSMAN 5250 GENERATOR 919.327210 370G TECUMSEH 264A ,..,'V I1_''136 /250 20 -- ENG 4-CYCLE ENGINE MODEL #HM100-159409P _110 370L /261282 _' 281 \_ 370K "--.
- Page 21 CRAFTSMAN 5250 GENERATOR 919.327210 RERNO. PARTNO. DESCRIPTION 35968A CYLINDER (INCL. #2, 20 & 72) 27652 DOWEL PIN 30699C GOVERNOR ROD (INCL. #15A & 15B) 30700 GOVERNOR YOKE 650494 SCREW, 6-40 X 5/16" 33454A GOVERNOR LEVER 29916 GOVERNOR LEVER CLAMP 651028 SCREW, TORX T-15, 8-32 X 3/8"...
- Page 22 CRAFTSMAN 5250 GENERATOR 919.327210 REE NO. PARTNO. DESCRIPTION 631776A THROTTLE SHAFT & LEVERASSEMBLY 631970 THROTTLE RETURN SPRING 631184 DUST SEAL WASHER (KIT) 631183 DUST SEAL (THROTTLE)(KIT) 640109 THROTTLE SHUTTER 650506 SHUTTER SCREW 632740 CHOKE SHAFT & LEVERASSEMBLY 632043 CHOKE RETURN SPRING 631184 DUST SEAL WASHER (KIT) 631183...
- Page 23 CRAFTSMAN 5250 GENERATOR 919.327210 RERNO. PARTNO. DESCRIPTION 590599A SPRING PIN (INCL. 4) 590600 WASHER 590679 RETAINER 590601 WASHER 590678 BRAKE SPRING 590680 STARTER DOG 590412 DOG SPRING 590681 PULLEY & REWIND SPRING ASSEMBLY 590747 STARTER HOUSING ASSEMBLY 590535 STARTER ROPE (LENGTH 98" X 9/64" DIA.) 590701 STARTER HANDLE 23 -- ENG...
- Page 24 CALIFORNIA & US EPA EMISSION The U. S. Environmental Protection Agency ("EPA"), the California Air Resources Board ("CARB") and Tecumseh are pleased to explain the Federal and California Emission Control Systems Warranty on your new utility or lawn and garden equipment engine.
- Page 25 EMISSION CONTROL SYSTEM WARRANTY Emission Control System Warranty ('ECS Warranty') for 1995 and later model year California utility and lawn and garden equip- ment engines (for other states, 1997 and later model year engines): A. APPLICABILITY: This warranty shall apply to 1995 and later model year California utility and lawn and garden equipment engines (for other states, 1997 and later model year engines).
- Page 26 Call 6 am - 11 pm CST, 7 days a week 1-800-366-PART Para ordenar piezas For the location of a Sears Parts and Repair Center Call 24 hours a day, 7 days a week For information on purchasing or to inquire about an existing...
