OWNER'S MANUAL
®

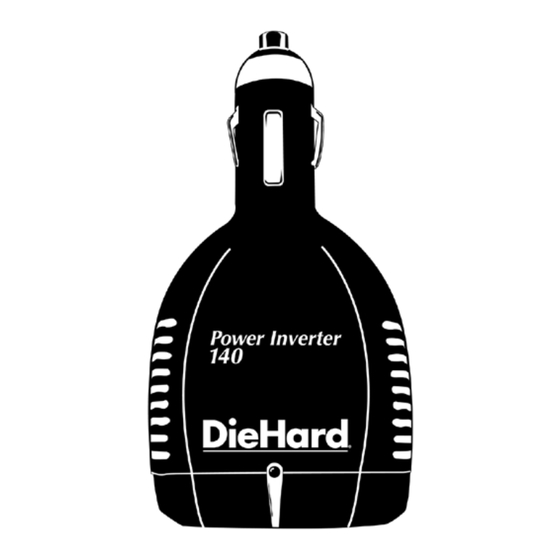

Power Inverter 140
Converts 12V DC Power to 110V AC
Household Electrical Power
Model No.
200.71491
CAUTION:
Read all Safety Rules and Operating Instructions,
and follow them with each use of this product.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
00-99-000591/1205

Advertisement

Table of Contents
loading

Related Manuals for DieHard 140

Summary of Contents for DieHard 140

  • Page 1 Converts 12V DC Power to 110V AC Household Electrical Power Model No. 200.71491 CAUTION: Read all Safety Rules and Operating Instructions, and follow them with each use of this product. Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. 00-99-000591/1205...

  • Page 2: Table Of Contents

    TAbLE Of CONTENTS Warranty ... 3 Important Safety Instructions ... 3 Power Inverter 140 Product Features ... 5 Before Using Power Inverter 140 ... 6 Operating Instructions ... 7 Power Source ... 8 Usage Examples ... 8 LED Indicator and Overload Protection ... 9 Troubleshooting ...

  • Page 3: Warranty

    One-year full Warranty on DieHard Power Inverter 140 If this Power Inverter 140 fails due to a defect in material or work- manship within one year from the date of purchase, RETURN IT TO ANY SEARS STORE or OTHER DIEHARD OUTLET IN THE UNITED STATES FOR FREE REPLACEMENT.
  • Page 4 • DO NOT operate the inverter if you, the inverter, the device being operated or any other surfaces that may come in contact with any power source are wet. Water and many other liquids can conduct electricity, which may lead to serious injury.

  • Page 5: Power Inverter 140 Product Features

    POWER INVERTER 140 PRODUCT fEATURES 1. Green LED Indicator 2. One, 3-prong AC Receptacle Positive Connector 4. Two, Negative Connectors...

  • Page 6: Before Using Power Inverter 140

    It is important to know the continuous wattage of the device you plan to use with the inverter. The Power Inverter 140 must be used with devices drawing 140 watts or less. If the wattage is not marked on the device, an estimate can be made by multiplying the AC input current (Amps) by the AC voltage (110V).

  • Page 7: Operating Instructions

    2. Make sure that the device to be operated is turned OFF. 3. Plug the device into the Power Inverter 140 AC outlet. 4. Turn the device on. If the LED Indicator briefly blinks when you first plug the inverter in, it is a sign that there is a short circuit within the power supply.

  • Page 8: Power Source

    To maintain battery power, run the engine every 2 to 3 hours for approximately 10 minutes to recharge the battery. While the Power Inverter 140 draws very low amperage when not in use and it should be unplugged to avoid battery drain.

  • Page 9: Led Indicator And Overload Protection

    2. When the power input the vehicle’s battery exceeds 15 volts, high voltage overload protections occurs. 3. The continuous load demand from the equipment or device being operated exceeds 140 watts. 4. The case temperature become hot (exceeds 145°F). Reset: To reset after shutdown occurs, check the source of the problem and correct.

  • Page 10: Troubleshooting

    NOTE: Installing a fuse higher than 15-amps may cause damage to the inverter. 5. Inverter may be defective. Call 1-800-SEARS-64 (1-800-732-7764) for trouble- shooting assistance, or return it to any Sears store or other DieHard outlet in the United States for a free replacement.

  • Page 11: Specifications

    SPECIfICATIONS Maximum Continuous Power ...140 Watts Surge Capacity (Peak Power) ...280 Watts No Load Current Draw ...<0.2 Amps Wave Form ... Modified Sine Wave Input Voltage Range ... 10.5 – 15.5V DC Low Battery Alarm ... N/A Output Voltage ... 110 – 125V AC Low Battery Shutdown ...
