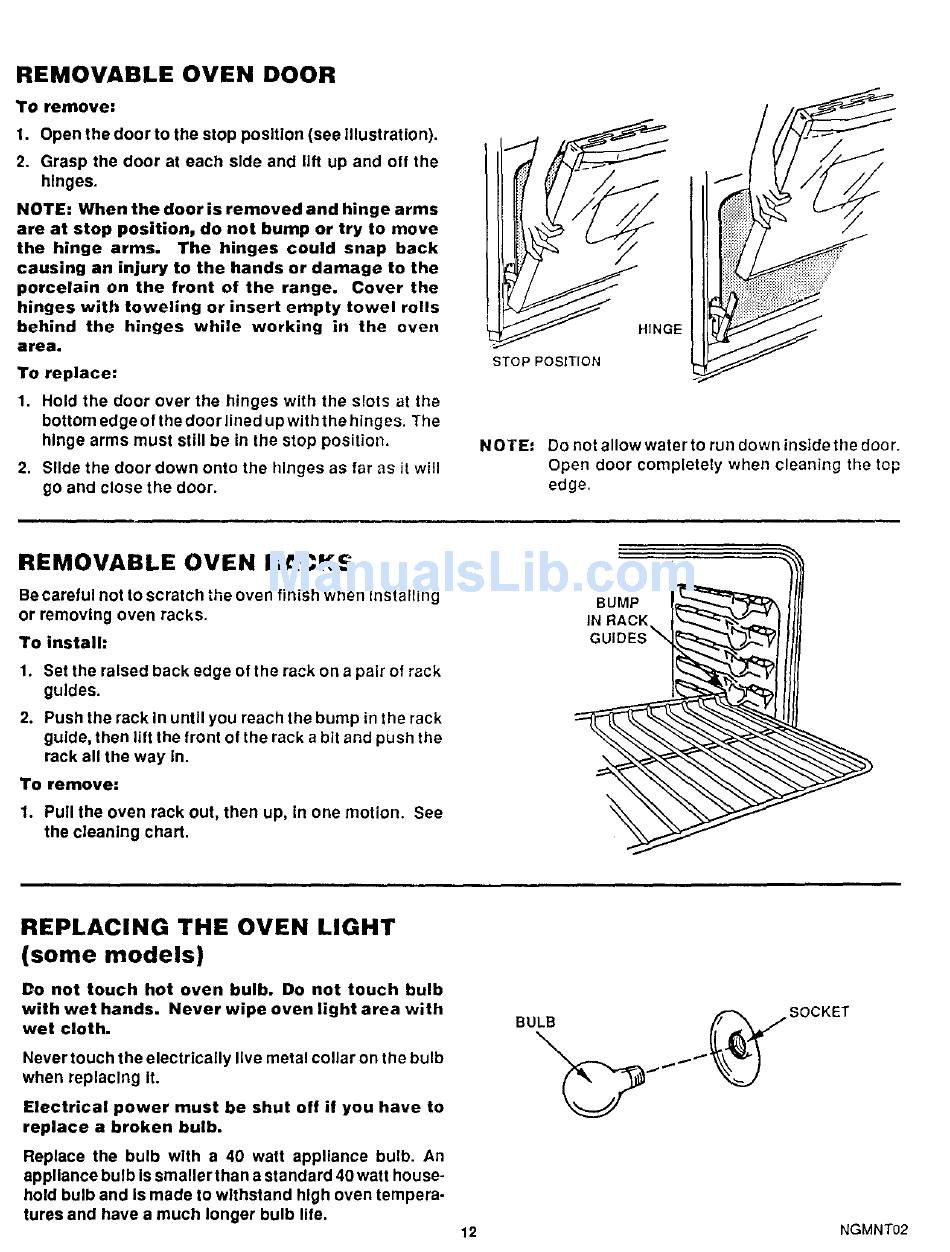

REMOVABLE OVEN DOOR
TO remove:
1. Open the door to the stop positlon (see lllustration).
2. Grasp the door at each side and lift up and off the
hinges.
NOTE: When the door is removed and hinge arms
are at stop position, do not bump or try to move
the hinge arms. The hinges could snap back
causing an injury to the hands or damage to the
porcelain on the front of the range. Cover the
hinges with toweling or insert empty towel rolls
behind the hinges while working in the oven
area.
To replace:
1. Hold the door over the hinges with the slots at the
bottom edge of thedoor lined upwJth the hinges. The
hinge arms must still be in the stop position,
2. Slide the door down onto the hinges as far as it will
go and close the door.
STOP POSITION
HINGE
REMOVABLE OVEN RACKS
Be careful not to scratch the oven finish when Installing
or removing oven racks.
To install:
1. Set the raised back edge of the rack on a pair of rack
guides.
2. Push the rack In until you reach the bump in the rack
guide, then lift the front of the rack a bit and push the
rack all the way In.
To remove:
1. Pull the oven rack out, then up, In one motion. See
the cleaning chart.
NOTE: Do not allow water to run down inside the door.
Open door completely when cleaning the top
edge,
REPLACING THE OVEN LIGHT
(some models)
Do not touch hot oven bulb. Do not touch bulb
with wet hands. Never wipe oven light area with
wet cloth.
Never touch the electrically live metal collar on the bulb
when replacing It.
Electrical power must be shut off if you have to
replace a broken bulb.
Replace the bulb with a 40 watt appliance bulb. An
appliance bulb is smaller than a standard 40 watt house-
hold bulb and is made to withstand high oven tempera-
tures and have a much longer bulb life.
BULB
12
SOCKET
