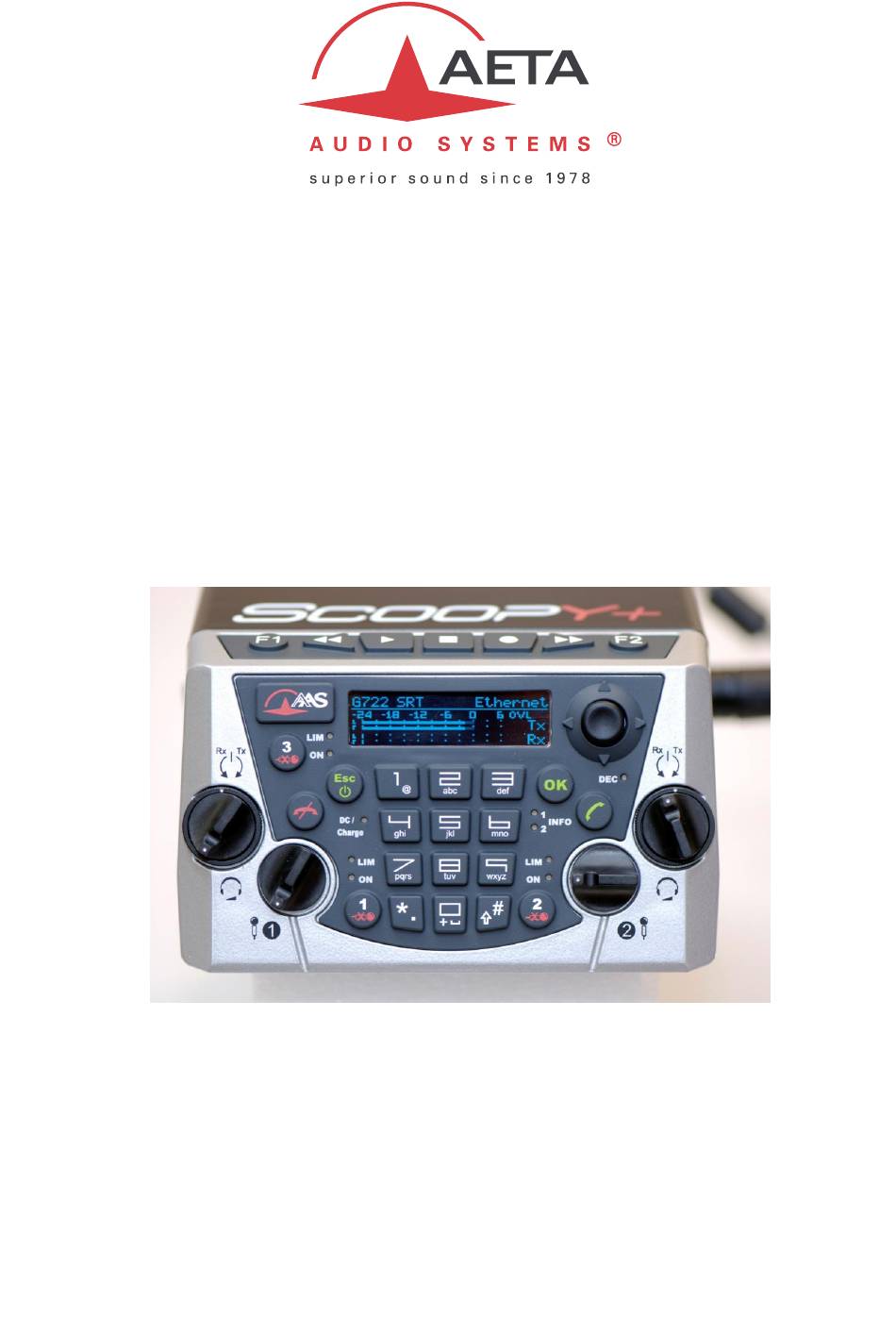

Page 1 ScoopY+ Mono / Stereo portable audio codec ISDN / POTS / MOBILE / IP User Manual...
Page 3: Table Of Contents
Table of contents 1. Presentation – Getting started ..............1 1.1. Install and connect ScoopY+ ..................3 1.2. Audio settings ......................3 1.3. Select and set up network to be used: wired networks ............ 3 1.3.1. Set up an ISDN link ....................3 1.3.2.
Page 4 2.5.4. Configuration and dialling memories ..............27 2.5.5. Test functions ....................... 28 3. Operation ..................29 3.1. General principles – Control means ................29 3.2. Physical description of the equipment ................ 30 3.2.1. Front panel ......................30 3.2.2. Rear panel ......................33 3.3.
Page 5 4.8. Clearing all settings ....................78 4.9. Backing up and restoring the configuration ..............78 4.10. Displaying received SMS ..................78 4.11. Record on SD-CARD ..................... 79 4.11.1. Settings ......................79 4.11.2. Record ....................... 80 4.11.3. Play ........................80 4.11.4. Edit ........................80 4.11.5.
Page 6 6.2.1. Transmission gain ....................103 6.2.2. Amplitude-frequency response ................103 6.2.3. Group delay distortion ..................103 6.2.4. Idle channel noise ....................103 6.2.5. Total distortion vs frequency and level ..............104 6.2.6. Crosstalk ......................104 6.2.7. Gain and phase difference between channels ............104 6.3.
Page 7: Presentation - Getting Started
1. Presentation – Getting started The SCOOPY+ codec allows the bi-directional transmission of one or two audio signals with bit rate reduction, over various transmission media: ISDN lines, PSTN telephone lines, IP protocol networks… The standard version of the codec includes an Ethernet interface for IP transmission. The unit can be complemented with many options providing additional network interfaces, coding algorithms, etc.
Page 8 Characteristics Optional Operation modes Single wide band codec Double 7 kHz codec (ISDN mode)  IP transmission interface Ethernet Interface, 10BaseT / 100BaseT; TCP/IP, UDP/IP, RTP protocols Audio transmission in unicast mode: SIP signalling protocol, SDP, RTP streaming Audio transmission in multicast mode: RTP streaming Net bit rate 16 to 256 kbit/s (depending on coding algorithm) ISDN transmission interface ...
Page 9: Install And Connect Scoopy
1.1. Install and connect ScoopY+  Plug on a power source or put 6 C batteries.  Turn SCOOPY + on by holding for >3 seconds. (Hold down for > 3 seconds to turn it off!)  Connect the necessary audio interfaces (details: page 18) ...
Page 10: Set Up A (Wired) Ip Link
1.3.2. Set up a (wired) IP link Over a public IP network, and especially when no SIP server is used, it is highly recommended to use a STUN server. The address of a STUN server can be set in the SCOOPY+ html pages (see page 88) or via the menu: Setup Network...
Page 11: Select And Set Up Network To Be Used: Mobile Networks
1.4. Select and set up network to be used: mobile networks To set links over a mobile network, you must have a SIM card with a subscription suitable for the use. Specifically, for an IP mode transmission the subscription must include access to data transmission, and RTP audio streams must be allowed.
Page 12: Set Up A (Mobile) Ip Link
1.4.2. Set up a (mobile) IP link Over a public IP network, and especially when no SIP server is used, it is highly recommended to use a STUN server. The address of a STUN server can be set in the SCOOPY+ html pages (see page 88) or via the menu: Setup Network...
Page 13: Functions
2. Functions The following synoptic diagram shows the basic functions of the equipment. Figure 1 – Functional diagram of the equipment The audio signals to be transmitted are converted (when needed) to digital format, then the encoding function reduces the bit rate, using a selectable algorithm; the resulting bit flow is sent to one of the available transmission interfaces: Ethernet interface, ISDN interface, PSTN interface, mobile network...
Page 14: Transmission Interfaces
2.1. Transmission interfaces The SCOOPY+ features in all versions an Ethernet interface for IP protocol networks. One ISDN, PSTN/POTS and mobile network access is optionally available. 2.1.1. Ethernet/IP interface The IP interface is a 10BaseT/100BaseT Ethernet interface allowing transmission of the audio programmes in a wide range of possible bit rates.
Page 15 SIP and SDP protocols The SIP protocol is a signalling protocol, used for IP connections, which allows the SCOOPY+ to interoperate with IP phones and other SIP compatible audio codecs, in a way similar to ISDN or POTS connections. Details about the SIP protocols can be found in the annex (refer to 7.2, Overview of the SIP protocol).
Page 16: Isdn Interfaces
2.1.2. ISDN interfaces For access to the ISDN, the transmission interface is one S0 BRI (Basic Rate Interface), for transmission over one to two 64 kbit/s B channels. The codec synchronises itself onto the ISDN network clock when a link is active. Network protocols Available protocols: ...
Page 17: Pots Interface
It must be noted that, thanks to the interoperation protocol, J52 codecs, when setting up a link, can negotiate automatically and agree on a configuration that is compatible with the capability of both units (regarding bit rate, channel mode, etc.). In this way, when the units differ in their capability (or make), the resulting configuration may be different from expected beforehand, but in most cases the link will work and audio will be transmitted.
Page 18: Mobile Network Access
2.1.4. Mobile network access Units equipped with the “Wireless” option include an integrated module for access to 2G/3G/3G+ mobile networks, and a holder for a SIM card. Depending on the version the accessible networks are 2G (GSM, EDGE), 3G (UMTS), 3G+ (HSDPA, HSUPA, HPA…), and 4G/LTE.
Page 19: Managing Calls
Mobile IP mode The other service available with mobile access is the data packet transmission mode, abbreviated as “PS” (for Packet Switched), with IP protocol. This mode brings similar capabilities as a wired IP connection via the Ethernet interface, as described above in 2.1.1, with some distinctive characteristics: ...
Page 20: Audio Encoding And Decoding
2.2. Audio encoding and decoding SCOOPY+ features a wide range of coding algorithms. Their availability depends on the transmission network used. Besides, the MPEG family algorithms feature a large configuration flexibility. The table below synthetically describes the capabilities with the various transmission media: F requency ( kHz) W ired Mobile...
Page 21: G711 Coding
2.2.1. G711 coding Application: telephony, coordination. Low latency. G711 is the standard coding used for voice transmission on public telephone networks, and features 300 to 3400 Hz audio bandwidth. This algorithm is typically used for links over IP networks with IP telephones or VoIP gateways.
Page 22: G722 Coding
2.2.5. G722 coding Application: commentaries, coordination. Low latency. This mono coding algorithm at a 64 kbit/s bit rate is a reference for commentaries, and features a 50-7000 Hz bandwidth. It is available, ISDN, IP networks (wired or mobile). For ISDN, three synchronisation modes are possible: ...
Page 23: Mpeg Audio Layer 2 Coding
2.2.8. MPEG Audio Layer 2 coding Application: mono or stereo music, high quality. As shown on Table 3, this coding algorithm features a maximum flexibility, with many variations for bit rate, mono or stereo channel mode, sampling rates... The two channel modes exist in three variations: ...
Page 24: Audio Interfaces
PAD, when the source is either a recorder of a mixing console. If you need more microphone inputs, you can use AETA AUDIO SYSTEMS mixer : MIXY on the extension port. Mixy will add 3 more microphones inputs plus many lines inputs. Mixy is automatically detected by the scoopy+.
Page 25: Mixed Inputs
Pad switch to adjust the gain on each input A mute activation pad located on the front panel By menu Gain pad (to adjust by step of 16 dB from 0 to 48dB). Microphone power selection switches None: dynamic microphone or line live Phantom: phantom power supply (48V or 12V switch configuration) T12 : “Tonadder”...
Page 26: Usb Interface
2.3.3. USB interface Scoopy+ has also the capability to establish a link with a PC or a MAC. The Scoopy+ is seeing as a stereo sound card by the computer. Depending of the Scoopy+ configuration, you can record on the computer the main program (send signal on the left and return signal on the right) On the other way, audio play on the computer is mixed with ScoopY+ inputs.
Page 27: Audio Routing
2.3.6. Audio routing Input 1 Input 2 Input 3 Extension Left Extension Right USB Left USB Right Player Left Player Right Headphone 1 Headphone 2 Ligne Left Ligne Right USB Left USB Right Recorder Track 1 Recorder Track 2 Multi choice One choice No choice Balance...
Page 28 Input 1 Input 2 Input 3 Extension Left Extension Right USB Left USB Right Player Left Player Right Headphone 1 Headphone 2 Line Left Line Right USB Left USB Right Recorder Track 1 Recorder Track 2 Multi choice One choice No choice Balance Can be automaticaly manage...
Page 29 Input 1 Input 2 Input 3 Extension Left Extension Right USB Left USB Right Player Left Player Right Headphone 1 Headphone 2 Ligne Left Ligne Right USB Left USB Right Recorder Track 1 Recorder Track 2 Multi choice One choice No choice Balance MONO ROUTING : PROGRAM &...
Page 30 Input 1 Input 2 Input 3 Extension Left Extension Right USB Left USB Right Player Left Player Right Headphone 1 Left Headphone 1 Right Headphone 2 Left Headphone 2 Right Ligne Left Ligne Right USB Left USB Right Multi choice One choice No choice Balance...
Page 31: Auxiliary Functions
2.4. Auxiliary functions The main function of the SCOOPY+ is the transmission of one or two main audio programmes, but it also provides auxiliary functions for transmitting data or additional signals, inside the same stream (or, more generally, the same session). These features are only compatible with AETA products, because they are not inside the scope of independent standards.
Page 32: Transmission Of Relays
2.4.1. Transmission of relays You can transmit 2 states (Contacts) through a data channel during an establish link. These contacts can mange relay or “ON AIR” Lamp on the remote side. Note: In ISDN & POTS, the feature should be enabled on both sides. Some algorithms don’t support it in ISDN.
Page 33: Supervision And Control Interface
2.5. Supervision and control interface The control and supervision of the equipment (configuration, communication management, status monitoring), is carried out either “locally” thanks to a keyboard, an alphanumeric display, LED indicators, or using various remote control interfaces. 2.5.1. “Local” control For local management, the front panel includes a large keypad, a graphic OLED, and various LED indicators for essential status information.
Page 34: Test Functions
2.5.5. Test functions For maintenance purposes, some test loops can be activated. The following drawing schematically shows these test loops: Figure 5 – Test loops  “Audio loop”: uncompressed audio data are looped from the input of the encoder to the input of the output conversion functional block.
Page 35: Operation
3. Operation 3.1. General principles – Control means The equipment control and supervision (configuration, status monitoring) is possible either in “Local” mode (front panel keypad and display, status indicators), or “Remote control” mode, thanks to an Ethernet interface. As a general rule, the configuration parameters are saved in non-volatile memory, and restored when the unit is powered on.
Page 36: Physical Description Of The Equipment
3.2. Physical description of the equipment The SCOOPY+ codec is housed in an ABS chassis. 3.2.1. Front panel All the elements needed for local controls are located on the front panel (see picture on page 31 below). This panel can be roughly divided in many parts: One can find several LED indicators, an LCD and the main navigation keys.
Page 37 Figure 6 – SCOOPY+ front panel 1 - Headphone 1 : Local/Cue 4 - Headphone 2 : Local / external (external ring) and volume ring) and volume adjustment (central adjustment (central knob) potentiometer) 2 - Input 1 volume control 5 – Joystick 3 –...
Page 38 LCD and navigation keys Besides the backlit graphic LCD one can find the keys for navigating through the menus: Function Confirm a selection or enter data. From the base screen: switch to the root menu. Escape to upper menu level; From the base screen: switch to the root menu.
Page 39: Rear Panel
3.2.2. Rear panel Figure 8 – Rear panel 1. External DC 2.1mm Jack 6. POTS RJ11 Jack 2. Ethernet RJ45 Socket 7. USB interface to connect with any USB peripheral 3. External antenna connector for Integrated GSM module 8. ISDN RJ45 Socket 4.
Page 40 Drawer for SIM card [10] In the units fitted with the mobile network access option, this drawer houses the SIM card enabling the access to the network and services.  The SIM card must be inserted while the unit is off (or in standby). To remove the drawer and the card, push the small button shown by the little arrow besides the drawer (see picture below).
Page 41: Installation And Set Up
3.3. Installation and set up 3.3.1. Mounting and connections To operate the codec, the minimum necessary connections to set up are (see details in the rear panel description):  Power supply (Batteries and/or DC);  Audio inputs and outputs (XLR sockets); ...
Page 42: Initial Setup Of The Ethernet Interface
3.4. Initial setup of the Ethernet interface The SCOOPY+ includes a 100BaseT / 10BaseT Ethernet interface, and the audio transmission can take place over an IP network through this interface. In addition, it is always possible to use the Ethernet interface to access the embedded html server or for remote control the unit via a TCP/IP connection (TCP port 6000).
Page 43: Optional Configuration Of The "Link" Ethernet Layer
You can then also check that the unit is seen on the network and at the right address: from a computer connected to the same network, enter (in the command mode, or console mode depending on the OS) “ping ipaddr”, where ipaddr is the IP address of the SCOOPY+. If the response is positive, then you can proceed with the rest.
Page 44: Managing Links
3.5. Managing links 3.5.1. Setting up and releasing links Generally speaking, once the codec is set up and the transmission interface(s) to be used is(are) configured, it is possible to manage audio links with remote devices. A transmission links/sessions have to be set, which can be done in two ways: ...
Page 45: First Level Maintenance
3.6. First level maintenance 3.6.1. Using the test loops The test loops accessible from the “Tools ” menu can help improve the Maintenance Tests analysis of a problem:  In order to check if the audio part functions correctly, use the “Audio” loop and check if the audio is OK at the output.
Page 46: Detailed Operating Mode - User Interface
4. Detailed operating mode – User interface In local mode, the unit is operated thanks to a keypad and display on the front panel. The display is an OLED graphic display. Operating from the keyboard can be protected by a password (numeric sequence, that can be programmed or erased by the user.
Page 47: Principles For The Navigation
4.2. Principles for the navigation From the base screen, if pressing the key the display switches to the highest level menu, called ”root menu” Network interface Current coding Pressing again brings back the base screen. The LED indicators and the main keys surrounding the LCD are described above in 3.2.1, Front panel The unit proposes a tree structure of menus, and the Joystick is used to navigate through the menus.
Page 48: Dialing And Text Input Keypad
4.3. Dialing and text input keypad The keypad is used for entering numbers and/or texts. It is used in a similar way to a mobile phone:  The keypad works in “numeric” only mode, or in “alphanumeric” mode (where both numbers and letters can be entered).
Page 49: Description Of The Menus
4.4. Description of the menus The root menu shows the following three main menus:  Setup configuration of the codec  (profiles): access to configuration memories or “profiles”  Tools Maintenance and miscellaneous functions, access to status information Network Algorithm Setup Audio Coord_line...
Page 50: Network Sub-Menu
The « Tools » menu is itself divided in sub-menus:  About display information on addressing and firmware version  Misc miscellaneous functions  maintenance and test functions Maintenance The following diagrams show the various sub-menus and the available parameters. 4.4.1.
Page 51 Ethernet Parameters DHCP Mode Manual PPPoE Very high High IP Network Quality Middle Loca l IP Subnet Mask Network Config Gateway Ethernet DNS Server 1 Local IP Parameters DNS Server 2 Subnet Mask Gateway DNS Server 1 DNS Server 2 PPPoE_user PPPoE_password PPPoE_service...
Page 52  Link Mode is related to the physical Ethernet interface; the default setting “Auto- negotiation” is suitable for almost all situations. AoIP Parameter This sub-menu groups the settings related to the Audio over IP (AoIP) transmission. It is relevant for the Ethernet interface but also for using a mobile access network, be it with the integrated module or an external module via USB.
Page 53  Registration: enable or disable the registration on a SIP registrar server. The following menus SIP xxx are used to enter the parameters of the account on this server, when using such service. These parameters should be provided by the administrator of the SIP server. The User field usually corresponds to a number that a remote party can call to initiate a link with the codec when it is registered on the server.
Page 54 ISDN Parameter This sub-menu is not available on versions with no active ISDN interface. Euro ISDN Protocol NI-2 Local Number 1 Local Number 2 Sub-address 1 RNIS Parameter Sub-address 2 SPID Single Codec Codec Mode Double Codec Notes:  Protocol: NI-1 is used in North America, NTT is the protocol of the Japanese operator NTT, and Euro ISDN (or ETSI) can be used in the majority of the other countries (see more details on page 10, Network protocol).
Page 55 POTS Parameter This sub-menu is only visible on units with the POTS option. Tone Dialing Mode Pulse Wait Dial Tone Ignore Argentina …. Country Code …. United States POTS Parameters 12000 14400 16800 Max Speed 19200 21600 24000 Auto Speed Mode Fixed Notes: ...
Page 56  Speed Mode: for a line/transmission with variable quality, and/or to avoid repeated changes of the bit rate, with this setting you can force a fixed bit rate. In such case, the “Max Speed” above setting becomes a fixed value. Be aware you must be sure that transmission conditions will not require a lower speed;...
Page 57 Mobile Parameter This sub-menu is only visible on units with the “wireless” option. If more than one mobile access module is available (example: integrated module and “mobile key” on the USB socket), then one such sub-menu is presented for each module. save IP Mode Mobile Service...
Page 58 Note: once this parameter is “checked”, it is memorized: the data connection is carried out automatically by the SCOOPY+5 at startup, when it registers on the mobile network. Why disabling the data service? For avoiding unwanted data consumption. For instance, if you only intend to use the voice / HD voice service (“Cellphone”...
Page 59: Algorithm Sub-Menu
4.4.2. Algorithm sub-menu This sub-menu allows to select the desired configuration for an outgoing call, using the current transmission interface. CELP …. Other Previous (1) HE-AAC v2 Algorithm Previous(2 …. It is possible to quickly recall the last used configurations (“Previous” above), scrolling the list and selecting one of these recent settings.
Page 60: Audio Sub-Menu
4.4.3. Audio sub-menu Global -12dB to +12dB by 1dB step Gain Power Off / 12V / 48V / T12 Gain 0 /16/32 /48dB Inputs Filter Input Limiter Settings { 1 to 3 } On / Off / Initial Setting Memorized PAD ( Input 3 only ) Program, Coordination Line,...
Page 61 Limiter: Enable the analogue limiter ( set @-6dBFs ) Initial state : Mute state on power on PAD : A 20dB attenuation is available only on the input 3 to support high input. Audio routing: Setting depend of the routing configuration( mono /stereo & coordination channel/international sound ) ...
Page 62: Profiles Menu (Directories)
4.4.4. Profiles menu (Directories) This is the only menu available in restricted access mode. 0: Name_prof0 Remote Prof. 1: Name_prof1 . . . Local Prof. 0: Name_loc0 . . . Prof. 0: Name_snap0 Snapshots 1: Name_snap1 . . . Filename_1.wav Filename_2.wav Records name1_T1.wav...
Page 63: Tools / About Sub-Menu
Call the remote destination in the profile (choice available only for a remote profile): in this case the codec recalls the memorized parameters, and then sets the call to the memorized number(s); Delete the profile (not available in restricted access mode); the profile (for a remote profile): you can edit an existing profile, going Update through the same steps as for creating a new remote profile.
Page 64: Misc Sub-Menu
4.4.6. Misc sub-menu Reset Call History Reset Algo. History Reset Snapshots Reset Profiles Reset Reset Records Reset Settings Factory Reset Relays Data Channel Aux. Functions Baud Rate 300 / 1200 / 2400 / 4800 / 9600 Inputs Input Ext. 1 Disable / Info1 /info 2 / Assignment to 4...
Page 65 Notes:  Reset: you can select to delete only the snapshots or the profiles, or conversely to reset all parameters but keep these memories (“Reset Settings” choice). It is also possible to clear the history of calls or the history of selected algorithms. For a complete erasure with the restoration of all default settings, select “Factory Reset”.
Page 66: Maintenance Sub-Menu
4.4.7. Maintenance sub-menu On one hand this sub-menu allows managing the restricted access mode, which is specifically described further in 4.7, Restricted operation mode. On the other hand it allows activating test loops (as described in 2.5.5, Test functions). Reduce User Access Access? Password...
Page 67: Setting Up A Link
4.5. Setting up a link 4.5.1. Setting up a link in ISDN mode Preliminary settings The network interface must be configured depending on the local ISDN line that is used, thanks to the “ISDN Parameter” sub-menu (Setup Network ISDN Parameter) Protocol The default setting is “Euro ISDN”, also known as ETSI protocol.
Page 68 If a sub-address is needed, right after the number enter the “*” character and the sub-address (4 digits max.). The number then has the form nnnn*ssss, e.g. 0912345678*32 (then press When the selected encoder needs two B channels, the unit asks for additional numbers. If the same number is suitable, just press the “green phone”...
Page 69: Setting Up Links In Double Isdn Codec Mode
4.5.2. Setting up links in double ISDN codec mode The double codec mode is specific, as the unit behaves as two independent G711/G722 mono codecs, designated “Codec 1” and “Codec 2”. Each codec sets or releases links separately on the B channel it is assigned, and uses the audio input and output it is assigned: input and output A (or “left”) for Codec 1, and input and output B (or “right”) for Codec 2.
Page 70 Releasing/Hanging up To stop a link, press the key. You must then select which line/codec you want to release, using key F1 or F2. Press a second time to confirm. Quick redialing Once a number has been called with a codec, it is easy to recall it without having to type it again: press the key, then you can scroll through the “history”...
Page 71: Setting Up A Link In Ip Mode Via Ethernet
4.5.3. Setting up a link in IP mode via Ethernet A link is set up in a similar way as an ISDN link. The difference is mainly that instead of the telephone number, we use either an IP address, or a SIP URI (Uniform Resource Identifier). Preliminary settings If a SIP server is used, the SCOOPY+ must be registered on this server.
Page 72 Receiving calls This is very simple, in both cases (direct peer to peer link or SIP server). There is nothing to do… When a call is received, the units negotiate automatically a commonly acceptable coding algorithm, and set the link automatically. On the receiving side, SCOOPY+ will “follow” the calling unit. ...
Page 73 Multicast mode transmission On a network that can support it , the multicast mode can optimise the resource usage when an audio stream has to be distributed simultaneously to several destinations. Contrary to the normal bidirectional unicast mode, this mode is unidirectional: one sender encoder sends a stream towards a multicast group address, and one or several decoders receiving the stream pick up the packets sent to this group address and decode the audio stream.
Page 74: Setting Up A Pots Link
4.5.4. Setting up a POTS link Preliminary settings The network interface must be configured depending on the PSTN line that is used, thanks to the “POTS Parameter” sub-menu (Setup Network POTS Parameter)  You should preferably disable services such as call waiting tones. Tone signals injected on the line during the communication have a high risk of disturbing the codec operation, and even dropping the link.
Page 75: Setting Up A Mobile Telephone Link
4.5.5. Setting up a mobile telephone link Prerequisites You must have a subscription and a SIM card granting access to mobile transmission. In the case described here the subscription must include access to the basic telephone service. Preliminary settings First insert the SIM card in the SCOOPY+ (the unit must be powered off for this. See how to proceed on page 34, “Drawer for SIM card [10]”.
Page 76 If you wish you can clear this history of calls: see the menu Tools / Misc. / General Reset. SCOOPY+ - User Manual...
Page 77: Setting Up A Link In Ip Mode Via A Mobile Network
4.5.6. Setting up a link in IP mode via a mobile network Prerequisites You must have a subscription and a SIM card granting access to mobile transmission. In the case described here the subscription must include access to packet switched data transmission. It is possible to operate over a 2G network in EDGE mode, if using very low bit rates, but for an acceptable performance it is preferred to access a 3G/3G+ network, at minimum UMTS.
Page 78 Calling via a mobile IP network To set the link, first set –if not already done- the unit in mobile access mode (menu Setup Network Change Network Mobile (xxx) . If needed come back to the base screen, using  Note that the display now shows you the network type (example: 3G) and the radio reception quality.
Page 79: Setting Up A Coordination Channel
 Press a second time to confirm! (this is for safety, in order to avoid releasing by mistake) Quick redialing Once a remote device has already been called, it is easy to recall it: press the key, then you can scroll through the call “history”...
Page 80: Management Of The Configuration Profiles
4.6. Management of the configuration profiles The configuration profiles ease configuration changes and the setting up of routine links. There are three types of profiles:  “Remote profiles”, which include call parameters for a given destination (number(s), coding, etc.). Such a profile is similar to a directory entry, but in addition it can memorize the coding parameters.
Page 81: Setting Up A Coordination Channel
 Create a New profile, which will memorize all the current network settings (for a local profile) or all the audio settings (for a snapshot), assigning it a name.  Load a local profile or snapshot: the codec then restores the settings included in the profile. ...
Page 82: Restricted Operation Mode
4.7. Restricted operation mode 4.7.1. Principles SCOOPY+ can be locked in a restricted user access mode, which limits user access to the essential controls and features. For routine operation, this mode allows to avoid risks such as random settings, with unpredictable effects, handling or adjustment mistakes, accidental erasure of useful memories, etc.
Page 83: Lost The Password
4.7.4. Lost the password? You have forgotten or lost the password ? The only way to restore full access is to clear all the settings, which will also clear the passwords. The unit will be accessible again. Chapter 4.8 below shows the procedure for such erasure. ...
Page 84: Clearing All Settings
4.8. Clearing all settings In some cases (especially if the password is lost), it can be necessary to come back to the “factory” configuration. To clear up all the configuration and come back to the factory settings, normally you should go to the sub-menu Tools Misc...
Page 85: Record On Sd-Card
4.11. Record on SD-CARD This is an option on the Scoopy+. Scoopy offers a module to record what goes into the unit to read a file already recorded in the device and edit a file to cut it. The module also allows you to send files via FTP and export files in the cut recording format.
Page 86: Record
4.11.2. Record A first press on REC button starts buffering for 30 seconds. A second REC press start recording. On top left of the display, you have the recorded time and on the top right remained time on the SD-C To pause the recording, simply press PLAY.
Page 87: Send By Ftp
Enter the name of the file and save. Your file is now visible in the Records menu. 4.11.5. Send by FTP Enter in the menu, select and Records. Make on the file and select Send from the popup menu to transfer it through an IP connection (Mobile or Ethernet). Note for mobile transfers: ...
Page 88: Operating Mode - Embedded Html
5. Operating mode – Embedded HTML pages The embedded html server in SCOOPY+ provides a comfortable and efficient means to control and monitor the unit. It just needs the SCOOPY+ to be connected to an IP network and to be reachable from a computer, or another device with an html browser: tablet, smartphone…...
Page 89: Principles Of Operation With Html
5.2. Principles of operation with html pages The picture below shows a typical page. Tabs Re fresh the "SIP" block He lp area On top you find a bar of tabs corresponding to the various categories of functions and parameters for the SCOOPY+.
Page 90: Status" Tab
5.3. “Status” tab This tab leads to the “Status” page, which is also the home page. It provides an overview of the essential settings and parameters, sufficient for basic monitoring. A ctive transmission interface highlighted Link monitoring P rogram level This page is accessible without a log in, and without a password.
Page 91: Connections" Tab
5.4. “Connections” tab This tab leads to the “Connections” tab, allowing to remote control the links: monitoring, outgoing call set up and call releasing. Li nk monitoring 1. Use a profile 2. Dial directly the n 3. Launch the call Display received SMS, S e nd messages to the unit's LCD The “Connection State”...
Page 92: Profiles" Tab
5.5. “Profiles” tab This tab proposes three secondary pages, one for each profile type. 5.5.1. “Remote profiles” page S elect a profile a n d click this button S elect a profile, t o delete a profile e dit the parameters e dit the parameters, an d click this button an d click this button...
Page 93: Network" Tab
5.6. “Network” tab This tab leads to several pages, which correspond, just like the sub-menu “Network” of the front panel interface (see 4.4.1 above), to the various network interfaces. For this reason, the number of pages actually proposed depends on the version and the options of the unit (with or without ISDN, mobile access, etc.).
Page 94: Aoip Parameter" Page
 Settings regarding the Ethernet interface and IP addressing are especially critical, because this is just the interface you are controlling SCOOPY+ through. You can lose control because of a mistake in the settings; it might even be the normal expected consequence for a configuration change.
Page 95: Isdn Parameter Page
5.6.4. ISDN Parameter page This page is only visible for units equipped with ISDN interface(s). See more details on the parameters in 4.4.1, ISDN Parameter. Remember to save the changes, clicking the “Save” button! 5.6.5. “POTS Parameters” page This page is only visible for units equipped with the POTS option. See more details on the parameters in 4.4.1, POTS Parameter.
Page 96: Mobile Parameter" Page
5.6.6. “Mobile Parameter” page This page is only visible for units equipped with the “wireless” option. See more details on the parameters in 4.4.1, Mobile Parameter. You cannot access all settings unless the PIN code has been entered (otherwise the view is partial only). ...
Page 97: Audio" Tab
5.7. “Audio” tab See all details for these parameters in 4.4.3, Audio sub-menu. Like the “Status” page, this page shows the audio level transmitted/received to/from the network. After changes on the audio parameters, make sure to save the changes, clicking the “Save” button. This page includes the management of snapshots, memorizing the parameters controlled in this page.
Page 98  Click the “Cancel” button to simply come back to the previous situation (also possible using icons, but one frame at a time).  Click the “Load” button and directly apply the snapshot (also possible using the “Save” buttons, but one frame at a time). ...
Page 99: Coding" Tab
5.8. “Coding” tab The “Coding” tab groups the selection of the algorithm and its parameters, as well as the auxiliary functions. See details on all these parameters in 4.4.2, Algorithm sub-menu and 4.4.6, Misc sub- menu. The available coding algorithms depend on the current network interface and the installed options, such as e.g.
Page 100: Misc" Tab
5.9. “Misc” tab This Misc tab groups several settings that can be found in the Misc sub-menu of the front panel user interface (see 4.4.6, Misc sub-menu): auto redialing configuration and activation, loop control activation, SMS reception enabling/disabling… It is also possible to configure a NTP server: this kind of server provides a time reference (from the Internet or a server on the local network), useful and recommended for the absolute time stamping of the events in the log (see further 5.10.5, “Event log”...
Page 101: Maintenance" Tab
5.10. “Maintenance” tab This tab leads to a selection between several pages dedicated to maintenance aspects. 5.10.1. “Login data” page This page is for setting the password for logging in the html pages. In a classic way, to set up a password you must first enter the current one, and then enter the new one and confirm it.
Page 102: Reset" Page
5.10.4. “Reset” page This page provides two functions: clearing the settings and/or memories/profiles recorded in the unit, and rebooting the unit. You can reset the unit completely or only clear a category of data; the available options are:  “Factory reset”: all parameters are brought back to their default setting, and all memories (profiles, snapshots) are deleted.
Page 103: Event Log" Page
5.10.5. “Event log” page This page displays a history if the system events, which can be useful for operational records, or for investigating operation issues, etc. Events are logged by the codec in its internal memory card; they are recorded in plain text (unformatted ASCII), and the web page displays the 200 last lines of this log (with a scroll bar).
Page 104: Setup Transfer" Page
5.10.6. “Setup Transfer” page This page provides a means to backup all the settings of the unit into a file, and reciprocally to restore a complete configuration from a file previously saved in this way. Partial exports are also possible, selecting the items you wish to include: remote profiles, local profiles, snapshots, settings…...
Page 105: Alarm" Tab
5.11. “Alarm” tab The “Alarm” tab switches to red as soon as at least one anomaly is detected. In addition the number of abnormal conditions is shown, like in the example below with two alarm conditions detected: Clicking the tab, you reach this “Alarm” page showing all the alarm conditions. All possible issues are listed, but only those actually detected are highlighted with the icon.
Page 106: Technical Characteristics
6. Technical characteristics 6.1. Characteristics of interfaces 6.1.1. Analogue audio inputs Audio characteristics are measured over a 20 to 20 000 Hz bandwidth except when differently stated. The inputs are balanced type, using 3-pin female XLR sockets. Microphone powering: Phantom 48V or 12V, optional Tonadder 12V Maximum input level: +19 dBu (+39dbu Channel 3) Input stage sensitivity adjustment:...
Page 107: Isdn Interfaces
6.1.5. ISDN interfaces The socket is ISDN S0 interface (BRI), the supported protocols are ETSI (Euro RNIS), NI-1 or NTT. 6.1.6. POTS/PSTN interface Interface available as an option. The telephone interface is a RJ11, only Tip and Ring signal are used. Description RING 6.1.7.
Page 108: Dc Power Supply
 IT IS STRONGLY RECOMMENDED THAT YOU DON’T USE LOW QUALITY, SALT OR ALKALINE CELLS. SUCH BATTERIES MAY CAUSE LEAKS AND DAMAGE THE UNIT. 6.1.9. DC power supply Scoop+ will also work on any external 8 to 15-Volts DC source. A typical source will be a car cigarette adapter.
Page 109: Audio Performance
6.2. Audio performance The audio performance in this part applies to the system without coding/decoding, and excluding the coordination channel. The additional effect of the audio encoding and decoding on audio performance depends on the coding algorithm used and its parameters. Except when differently stated, the following measurements are done at a +6 dBu input level and on the AD/DA path, with maximum input and output level set at +16 dBu.
Page 110: Total Distortion Vs Frequency And Level
6.2.5. Total distortion vs frequency and level Total distortion relative to maximum level (or THD + N) is less than –78 dB over the whole audio bandwidth (20 – 20 000 Hz). This performance holds for audio signals from –80 dB to –1 dB relative to the maximum level (+16 dBu).
Page 111: Network Protocols And Ports
6.3. Network protocols and ports The SCOOPY+ implements or complies with the following protocols (non exhaustive list):  Physical and link layers: Ethernet, 100BaseT, 10BaseT  Network/Transport layers (IPv4): TCP/IP, UDP/IP, RTP/IP  Application: HTTP, Telnet, DHCP, STUN, NTP, SYSLOG ...
Page 112: Options
6.6. Options The basic version of SCOOPY+ includes Ethernet interface for IP transmission and/or Wireless module. Many available options can be added to complement the capabilities of the SCOOPY+. 6.6.1. Network options For adding more types of network interfaces, the following options are available: Ordering code Option Description...
Page 113: Accessories And Related Products
6.7. Accessories and related products The SCOOPY+is delivered with an AC/DC adapter and a CAT5 Ethernet cable. The POTS option includes a RJ11 cable. The “wireless” option is delivered with an internal multiband antenna An adapter is available if needed for using a µSIM card instead of a standard SIM card.
Page 114 • Spare AC/DC adapter • External multiband antenna • Audio extension: MIXY SCOOPY+ - User Manual...
Page 115: Annexes
7. Annexes 7.1. Additional information on the algorithms and protocols used 7.1.1. Auxiliary data in the MPEG frames The auxiliary data are used for the following purposes:  Reed-Solomon error detection and correction (J52 standard)  Data channel  Other auxiliary information: relay...
Page 116: Overview Of The Sip Protocol
7.2. Overview of the SIP protocol 7.2.1. What is SIP? SIP is for Session Initiation Protocol, a protocol specified by the IETF for establishing media transmission sessions. SIP is considered the communication protocol of the future by most vendors, and as such it has deep influence on the VoIP applications. As a signalling protocol, SIP brings methods and techniques to solve the issues related to the establishing of an audio link.
Page 117: Setting A Link Without A Sip Server
What happens then on the network: the Scoopy+ sends the request  (INVITE in SIP protocol) to a proxy server (often the same device is also the registrar). To make things simple, this proxy then relays and routes the request  to its destination. Resolving the SIP URI to a physical network and address uses mechanisms similar to those used for resolving URLs.
Page 118: Some Methods To Deal With Nat Routers And Firewalls
7.3. Some methods to deal with NAT routers and firewalls Problems arise when the desired connection has to go through a NAT router, and/or a firewall, that blocks a direct IP communication. This is a very common issue, especially if one needs to set up a transfer via the Internet. It is impossible here to describe in details the possible ways to deal with this problem, but the following just shortly discusses some typical solutions.
Page 119 NAT routing is an obstacle to transmission with UDP, mainly for two reasons:  It does not allow unsolicited data to come in from the outside network. In other words, data input is accepted on a port as an answer to a request from the local network, but an external agent cannot directly initiate the transmission of a packet.
Page 120 Standard NAT router Situation: codec A behind a NAT router with no specific programming (a codec accessing Internet via a mobile network is almost always in such situation). Besides, we assume that the other codec (B) is accessible with a public address. Once codec A is configured for using a STUN server: ...
Page 121 Once codec A is configured for using a STUN server:  codec A can initiate a connection to (call) codec B  codec B can call codec A, using the public address of the NAT router Advantages Drawbacks Each codec can set up a session Need to configure the router A is nearly equivalent to a codec with a direct Only one codec can be set up in this...
Page 122: Summary And Reminder Of Essential Rules
7.3.3. Summary and reminder of essential rules The table below sums up the situations where a link can be set up (not using a SIP proxy server) and reminds the needed specific settings: Codec A Possible Codec B Notes access calls access ...
Page 123: Notice Regarding Open Source Code
. Under this license, the source code for concerned elements is available on our Internet site ("Download" page); otherwise it can be obtained on request by e-mailing AETA AUDIO SYSTEMS (open_source@aeta-audio.com). The software also includes the sipX stack covered by the LGPL license.
Page 124: Index
8. Index 4SB, ADPCM ..........16, 26 J52 ..........10, 16, 109 5AS ............1, 10, 59 Local address ..........61 Loop Loop control ..........94 AAC ............17, 106 Test loop ............ 28 ADPCM ............ 16, 26 Antenna ............ 12, 34 Audio Extension .........
Page 125 Start up ............40 THD, THD+N ..........104 STUN ..........46, 105, 113 Sub-address ........42, 61, 62 Supervision ..........27, 29 Unicast ............. 8 Synchronisation ......... 10, 16 USB ......... 13, 34, 44, 51, 71, 90 TDAC ............. 16 VoIP .............
Page 126 NOTES SCOOPY+ - User Manual...
Page 128 – FRANCE LESSIS OBINSON . +33 1 41 36 12 00 – F +33 1 41 36 12 69 ÉL http://www.aeta-audio.com Specifications subject to change – All rights reserved by AETA AUDIO SYSTEMS 55 000 059 - F March 2015...
