Bully Dog GT Quick Install Manual

QUICK INSTALL GUIDE
C
:
UPDATE THE GT
1.
Installing of the Update Agent app
a. Go to www.BullyDog.com
b. Hover the mouse cursor over
"download" at the top of the screen.
c. Click "Update Agent"
d. Click on the red "Click Here" link to
download the Update Agent app
setup file.
e. Run the file and install the Update
Agent app. The app will automatically
open when the installation is complete.
2.
Connecting the microSD memory
card to the computer.
 The memory card is located in a paper envelope,
which is attached to the inner back side of the
plastic packaging.
YOUR NEW GT

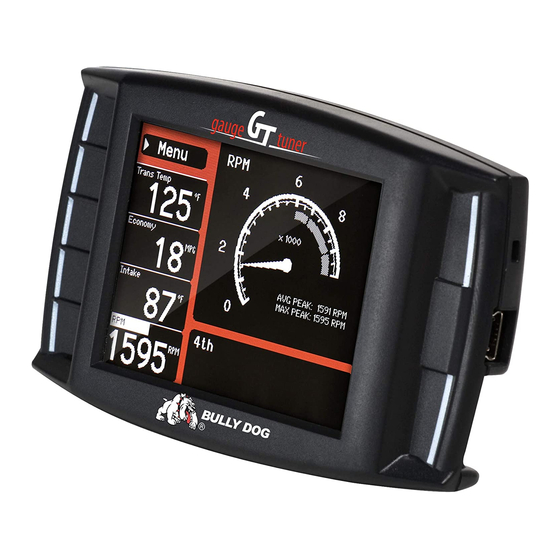

Congratulations on purchasing your new Triple Dog Gauge Tuner (GT)!
This guide will help you install and enjoy your new GT quickly and easily.
More detailed information is also available in the online Owner's Manual at
www.bullydog.com.
A
:
PARTS CHECKLIST
Confirm that you have all the parts listed below, and then update your GT (B).
GT Head Unit OBDII Adapter Plug
SD Card Reader SD Card
Fuse Tap Fuse Spade
a. Insert the memory card into the included
card reader.
b. Insert the card reader with memory card to a
USB port on the computer.
3.
Registering your GT Unit.
a. The Update Agent app will automatically
recognize the memory card and open a
registration pop-up window.
b. Fill out the information and click Submit.
c. Click Update.
d. After the files have been loaded to the
memory card, the Update Agent will open a
pop-up window with additional instructions;
click OK and close the Update Agent app.
Bully Dog recommends installing during business hours: Monday-Friday 7am-6pm MST. Bully Dog technical support: 940-783-9915
Windshield Mount HDMI Cable
Mini USB Cable Power Cable
Tools You May Need:
Fuse Puller • Voltage Tester
Battery Charger • Pliers
4.
Installing the memory card in the GT.
a. Remove the card reader from the computer.
b. Remove the memory card from the card
reader.
c. Insert the memory card in the GT.
5.
Power up the GT by connecting it to the
computer with the included USB cable.
B
:
PRE-INSTALL
CHECKLIST
1.
Business Hours
Technical support is available
during regular business hours
(Monday-Friday 7a.m.-7p.m. MST)
and can be contacted at 940-783-
991.
2.
Internet Access
In the unlikely event that
technical support is needed,
Internet access may be required
to troubleshoot.
3.
Allow Enough Time
Make sure you have at least an
hour to complete the installation
process.
6.
Exit USB mode by pressing the
second button from the top on the left
side of the GT.
 The GT may display "Initializing
Communication" on the Main Screen. This
is normal and will not change while the GT
is connected to the computer; there is no
need to wait for the message to disappear
to complete the update.
7.
Go to the Main Menu (press the top left
button).
 The GT may display a race tree demo mode;
the Main Menu cannot be accessed during
demo mode. Wait until the GT has returned
to the main screen.
8.
Scroll up and select Change Vehicle.
9.
Select the vehicle make.
10.
Select the vehicle year and
model.
11.
Confirm the selection by pressing
YES (press the top right button).
12.
The GT will load files and reboot to
USB mode.
