SeaLand TANKWATCH 4 Owner's Manual

Level monitor system
Hide thumbs

Advertisement

Table of Contents

TANKWATCH
4
®
LEVEL MONITOR SYSTEM
OWNER'S MANUAL
Dometic Corporation • Sanitation Systems
13128 State Rt 226, PO Box 38
Big Prairie, OH 44611
SeaLand Product Customer Service: 1-800-321-9886
(8:00 a.m. - 5:00 p.m. ET)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TANKWATCH 4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SeaLand TANKWATCH 4

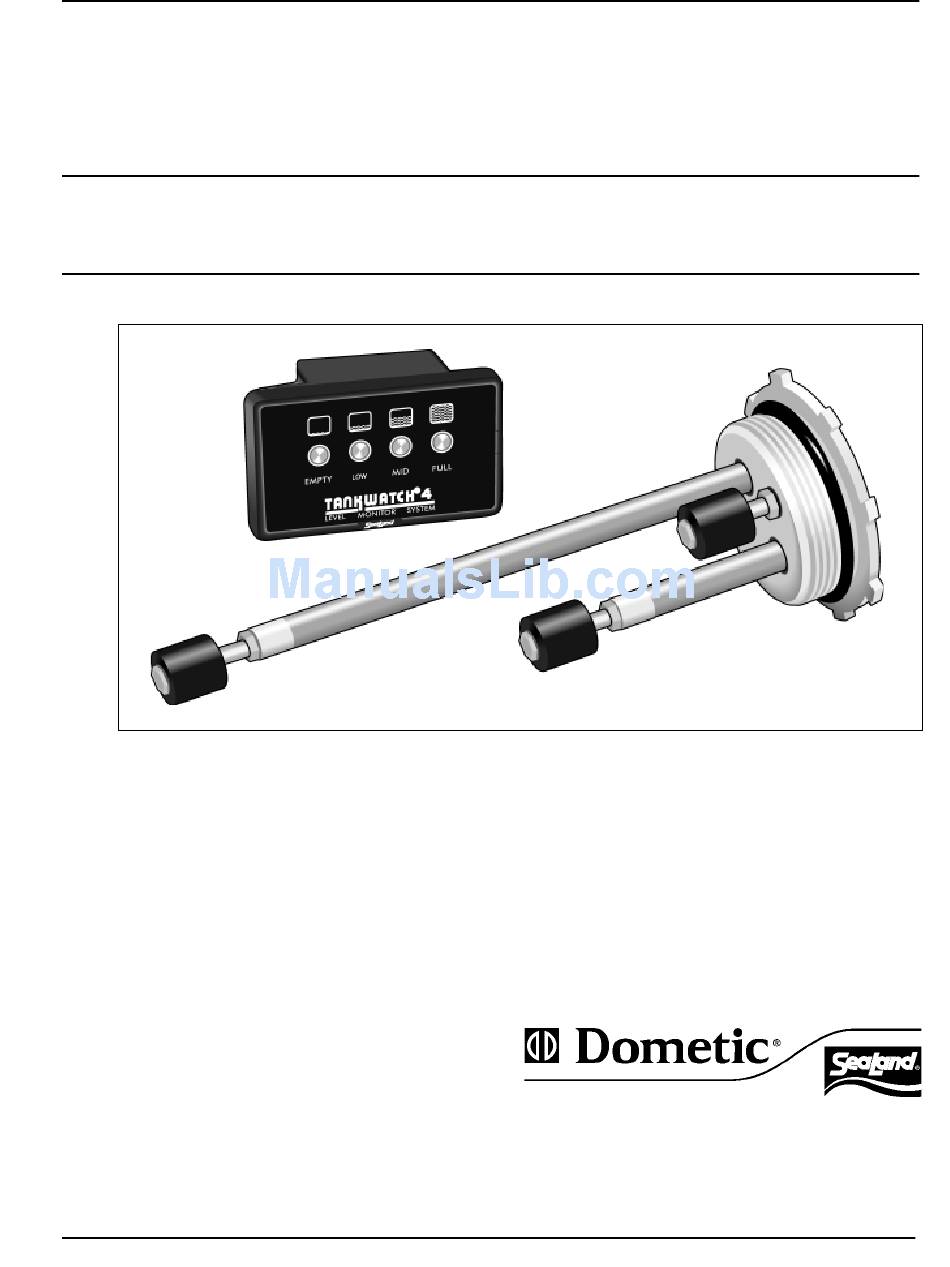

  • Page 1 TANKWATCH ® LEVEL MONITOR SYSTEM OWNER’S MANUAL Dometic Corporation • Sanitation Systems 13128 State Rt 226, PO Box 38 Big Prairie, OH 44611 SeaLand Product Customer Service: 1-800-321-9886 (8:00 a.m. - 5:00 p.m. ET)

  • Page 2: Table Of Contents

    ® Installation Instructions ....4 - 5 Wiring Diagrams ......6 Parts List .

  • Page 3: Dimensional Specifications

    Face Plate ........... Polycarbonate Electrical and dimensional specifications subject to change without notice. DIMENSIONAL SPECIFICATIONS * Max length for 45-inch probes is 43 3/4-in. (1111mm). 4 Level Monitor System 4 3/4" [121mm]...

  • Page 4: Control Panel

    3. Remove the cap from the tank and adjust the #2 stem for 1/2 full level for gray and black water tanks or 1/4 full level for fresh water tanks.
  • Page 5 2. Drill a 1/2-inch diameter hole for the lamp clearance and wire routing. 3. Remove the face plate from the TankWatch 4 (TW4) housing by prying the right side of the face plate center tab from the housing using a small screw driver.

  • Page 6: Wiring Diagrams

    Do not exceed 30 amps. USE 16 OR 18 GAUGE COPPER STRANDED WIRE. UP TO 4 “DO NOT FLUSH” PANELS CAN BE USED WITH ONE TANKWATCH 4 INDICATOR PANEL. PIN 1 FOR 12VDC SYSTEMS...

  • Page 7: Parts List

    Probe Kit (incl. items 5, 8-10) NOTE: If it is necessary to remove or replace the Float Switch Assembly (item 4) be sure to use the O-ring and tighten switch to 8-10 inch-lbs. Over-tightening is not necessary and will cause damage to the parts.

  • Page 8: Manufacturer's One-Year Limited Warranty

    To obtain warranty service, first contact your local dealer from whom you purchased this product. Dometic Corporation • Sanitation Systems 13128 State Rt 226, PO Box 38 Big Prairie, OH 44611 SeaLand Product Customer Service: 1-800-321-9886 (8:00 a.m. - 5:00 p.m. ET) Email: sealand@dometicusa.com ® Formica is a registered trademark of Formica Corp.
  • Page 9 CONTROL PANEL MOUNTING TEMPLATE...
